Subaru EX35 User Manual

- 71 -

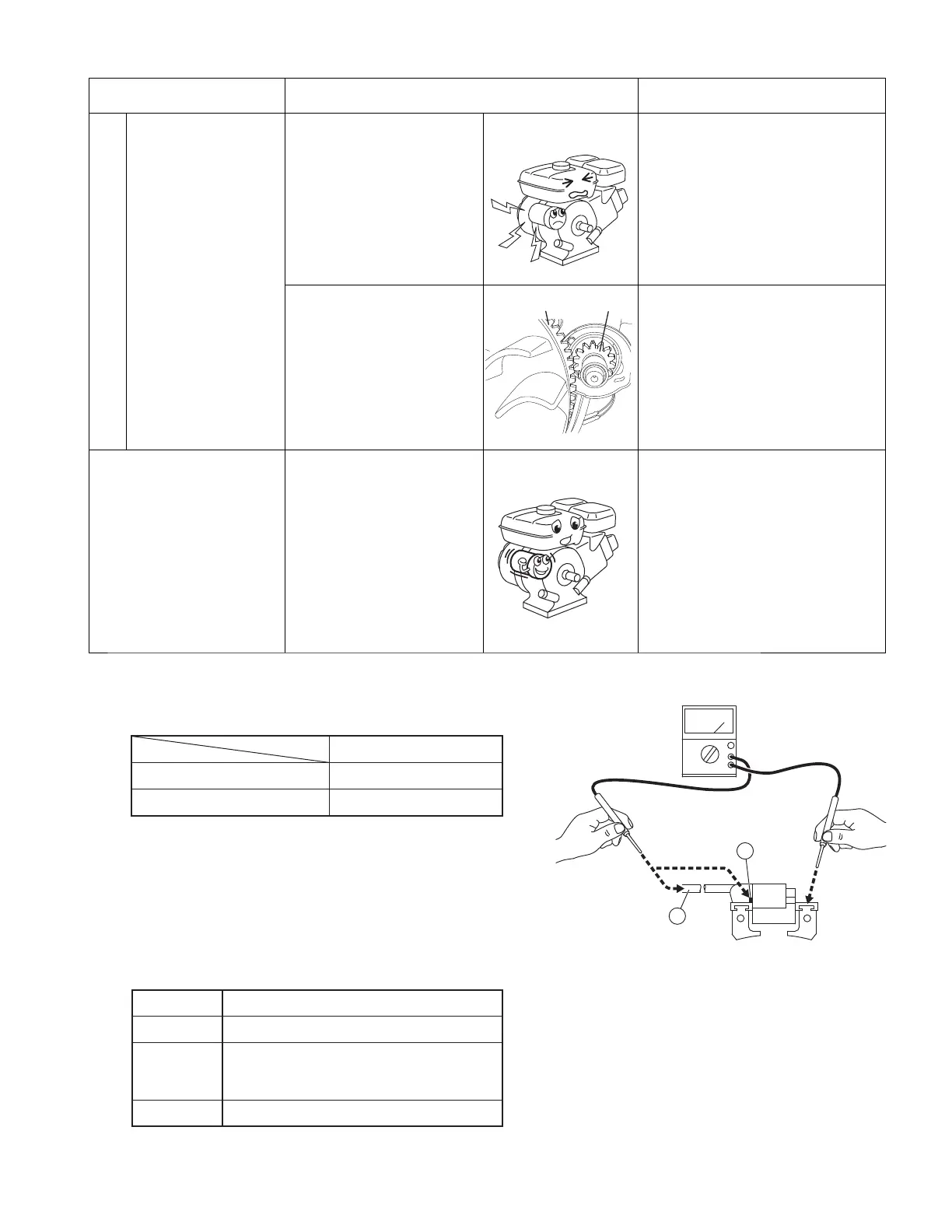

Problem and check item Description Remedy
(2) Starter runs but engine not
Check engaged
state of pinion
and ring gear.
Motor idles and engine does not
run.
(1) Remove and check the starter.
Check or replace the pinion clutch
if necessary.
(2) Check battery charged state and
battery terminal connection or
corrosion for any abnormality.
If pinion and ring gear do not
engage with each other and
abnormal noise is heard between
end faces of pinion and ring gear,
check the starter pinion and ring
gear.
(1) Remove the starter and check pinion
and ring gear end faces. If worn,
replace the pinion and ring gear.
(2) In case of sliding fault of the pinion,
correct it.
(3) If shift lever or spring is deformed,
replace it.
(3) Both starter and engine run,
but the engine does not start.
Check if the rotation speed is
normal or slow. If slow, check the
battery and engine oil viscosity.
(1) When the rotation speed is normal
Check the ignition system and fuel
system.
(2) When the rotation speed is slow
(a) Check the battery.
(b) Check the viscosity of engine oil.
If not normal, change the oil.
(c) If both (a) and (b) are normal
Remove and check the starter.
RING GEAR
PINION GEAR
16-3 IGNITION COIL
16-4 CHARGE COIL
HIGH-TENSION WIRE ծ
PRIMARY WIRE կ
NORMAL RESISTANCE
1 - 1.4
5 - 7
Ω
kΩ
[20 degree C (68F)]
Charge Coil NORMAL RESISTANCE
[20 degree C (68F)]
15W
40W
200W
6Ω
Green   WhiteYellow  1Ω
Black   WhiteYellow  1.1Ω
Green   WhiteBlack    White  0.1 ~ 0.2Ω
0.1 ~ 0.2Ω
A
B
