8-9

VEHICLE LOADING AND TOWING

66J21-03E

7) Release the parking brake.

Stop towing the vehicle every 300 km (200

miles). Start the engine. With the manual

transmission lever in 2nd gear (or the auto-

matic transmission lever in “D”) and the

transfer switch in neutral, rev the engine for

about one minute with the clutch engaged

(if equipped), to circulate oil in the transfer

case.

64J148

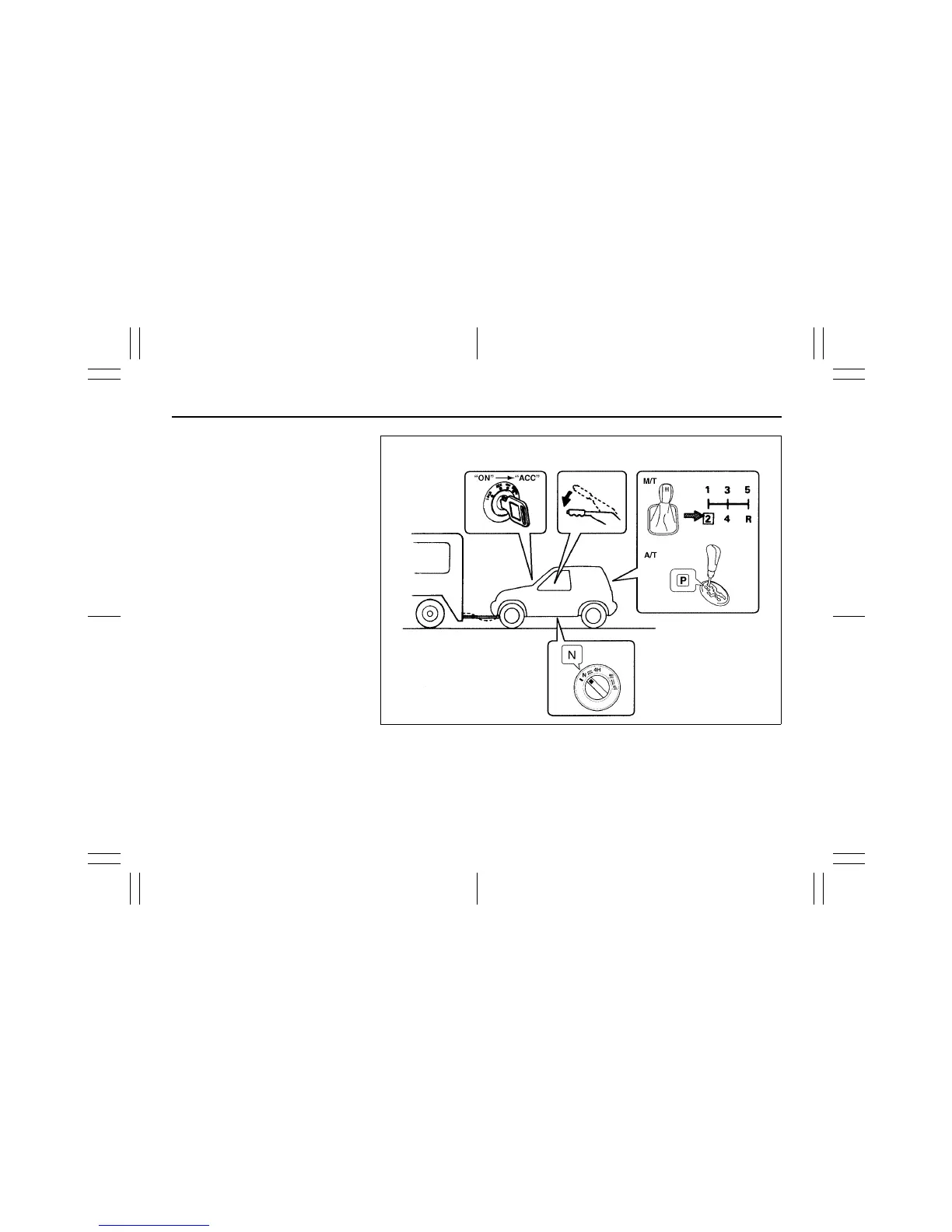

TOWING METHOD A

FOUR WHEELS ON THE GROUND
