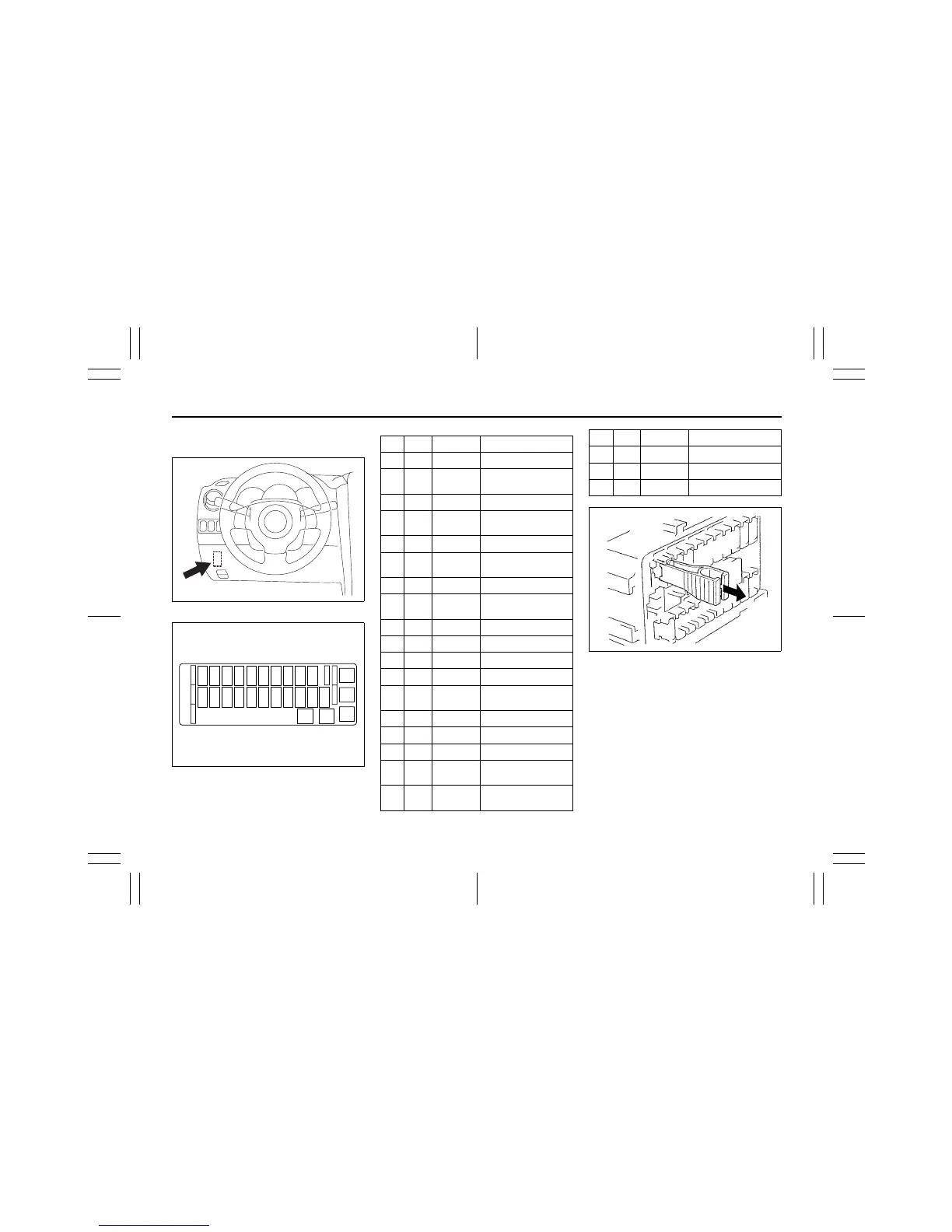

Fuse under the Dash Board
Fuse box
64J192
64J158
65D045
The fuse box is located under the driver’s
side of the dashboard. To remove a fuse,
use the fuse puller provided in the fuse
box.
SPARE SPARE SPARE
SPARE
USE THE DESIGNATED
FUSES AND RELAYS ONLY
SPARE SPARE
(A)(B)(C)(D)(E)(F)(G)(H)(I)(J)
(L)(M)(N)(O)(P)(Q)(R)(S)(T)(U)
(K)
(V)(W)
(A) 15A STOP Stop lamp fuse
(B) – – Blank
(C) 15A ACC 3
Accessory socket
fuse
(D) 10A CRUISE Cruise control fuse
(E) 15A ACC 2
Cigar or Accessory
socket fuse
(F) 20A WIP Wiper fuse
(G) 15A IG2 SIG
Ignition signal & Seat
heater fuse
(H) 10A BACK Back lamp fuse
(I) 10A ABS/ESP
ABS or ESP control-
ler fuse
(J) 15A A/B Air bag fuse
(K) – – Blank
(L) 15A HAZ Hazard light fuse
(M) 7.5A ST SIG Starter signal fuse
(N) 20A
RR
BLOW
Blank
(O) 25A S/R Sun roof motor fuse
(P) 15A DOME Dome lamp fuse
(Q) 10A TAIL Tail light fuse
(R) 20A D/L
Door lock actuator
fuse
(S) 15A ACC
Radio, Remote door
mirror fuse
(T) 10A METER Meter fuse
(U) 20A IG COIL Ignition coil fuse
(V) 20A P/W T Power window fuse
(W) 30A P/W Power window fuse
