5-17
OTHER CONTROLS AND EQUIPMENT
79MS0-14E

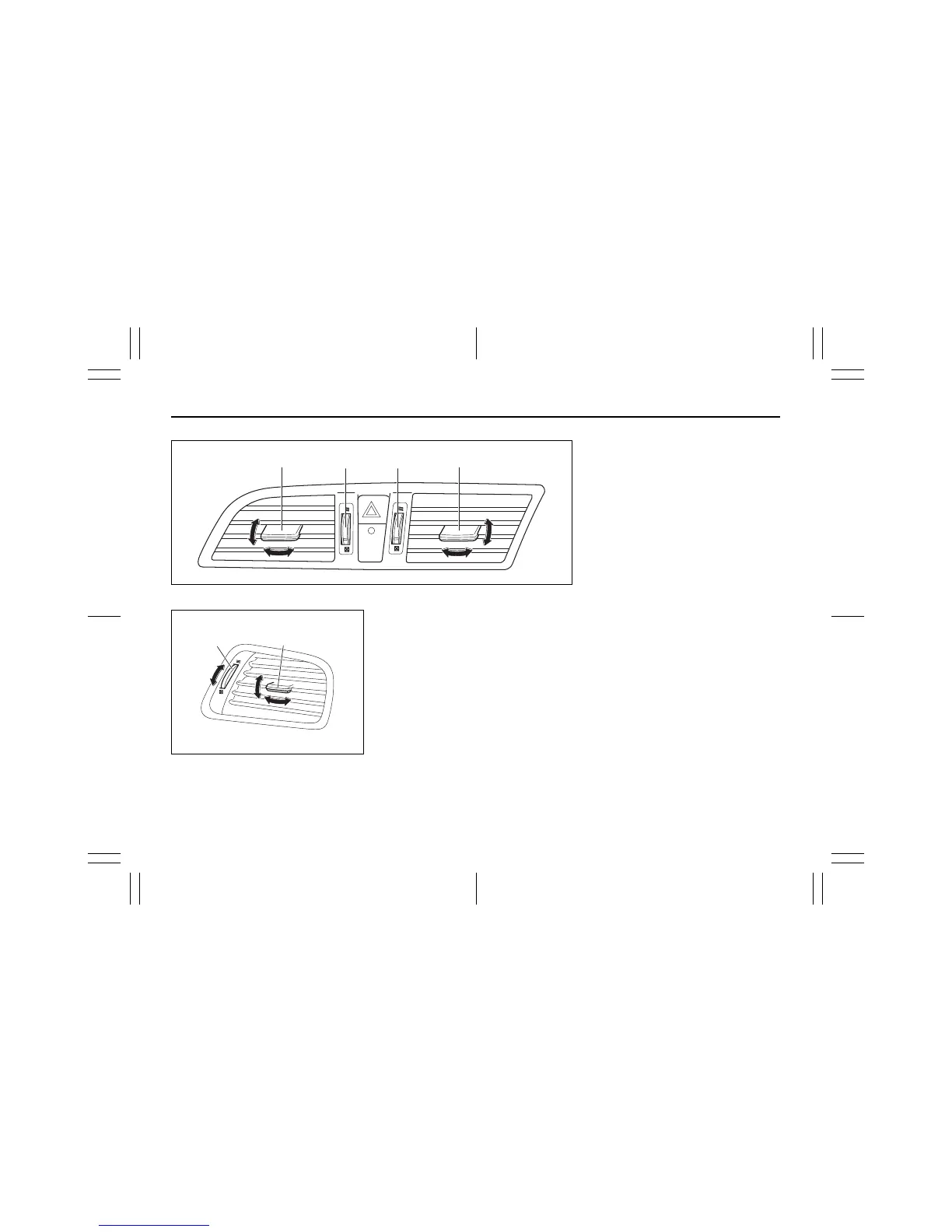

Center outlet
79MH0521
Side outlet
79MH0542
Move the knob (1) vertically or horizontally,
to adjust the direction of airflow as desired.
The center outlet/side outlet opens when you
turn th
e dial (2) upward and closes when
you turn it downward.
(1)
(1)
(2)
(2)
(1)
(2)
136
138
Table of Contents
Modification Warning
3
Introduction
4
Recommendation of Genuine Suzuki Parts and Accessories Use
5
Non-Genuine SUZUKI Parts and Accessories
5
Re-Use of Genuine SUZUKI Parts and Accessories
5
Service Station Guide
6
Table of Contents
8
Illustrated Table of Contents
9
Exterior, Front
9
Exterior, Rear
10
Interior, Front
11
Interior, Rear
15
Fuel Recommendation
18
Before Driving
20
Immobilizer System
21
Keys
21
Door Locks
22
Ignition Key Reminder
22
Side Door Locks
22
Central Door Locking System
23
Child-Proof Locks (Rear Door)
24
Trunk Lid
24
Keyless Push Start System Remote Controller/Keyless Entry System Transmitter
26
To Unlock a Door or All Doors
28
When the Doors Are Unlocked
28
Reminder Function
30
Request Switch Warning Buzzer
30
Replacement of the Battery
31
Keyless Entry System Transmitter
32
To Replace the Battery of the Transmitter
33
Theft Deterrent Alarm System
34
How to Arm the Theft Deterrent Alarm System (When Enabled)
35
How to Disarm the Theft Deterrent Alarm System
35
How to Stop the Alarm
35
Enabling and Disabling the Theft Deterrent Alarm System
36
How to Switch the State of the Theft Deterrent Alarm System
36
When Enabled (Factory Setting)
36
Driver’s Side
37
Electric Window Controls
37
Windows
37
Lock Switch
38
Passenger’s Door
38
Pinching Prevention Function
39
The Pinching Prevention Function Initialization
39
Inside Rearview Mirror
40
Mirrors
40
Outside Rearview Mirrors
41
Outside Rearview Mirrors Folding Switch
41
Front Seats
42
Seat Adjustment
42
Head Restraints
44
Rear Seats
44
Seat Belts and Child Restraint Systems
45
All Seat Belts Except Rear Center
47
Emergency Locking Retractor (ELR)
47
Lap-Shoulder Belt
47
Safety Reminder
47
Lap Belt
48
Rear Center Seat Belt
48
Driver’s Seat Belt Reminder
49
Seat Belt Inspection
50
Shoulder Anchor Height Adjuster
50
Booster Seat
51
Child Restraint
51
Child Restraint Systems
51
Infant Restraint - Rear Seat Only
51
ELR Type Belt
53
Installation with Lap-Shoulder Seat Belts
53
Installation with a Lap Belt
54
Seat Belt Pretensioner System
54
Supplemental Restraint System (Air Bags)
56
Air Bag Symbol Meaning
57
Front Air Bags
57
“AIR BAG” Light
57
Driver’s Front Air Bag
58
Front Passenger’s Front Air Bag
58
Conditions of Front Air Bags Deployment
59
Collision from the Side
60
Front Air Bags May Not Inflate
60
Vehicle Rollover
60
How the System Works
61
If the Air Bags Inflate, Have the Air Bags
62
Instrument Cluster
63
Fuel Gauge
64
Speedometer
64
Tachometer
64
Brightness Control
65
Temperature Gauge
65
Information Display
66
Thermometer
67
Transaxle Selector Position Indicator (for CVT Vehicles)
67
Instantaneous Fuel Consumption
69
Trip Meter
69
Average Fuel Consumption
70
Driving Range
71
Odometer
71
Clock
72
To Change the Time Indication
72
Setting Mode
73
How to Operate the Setting Mode
74
Brake System Warning Light
75
Warning and Indicator Lights
75
Anti-Lock Brake System (ABS) Warning Light
76
Charging Light
77
Driver’s Seat Belt Reminder Light
77
Oil Pressure Light
77
Malfunction Indicator Light
78
Transaxle Warning Light
78
Immobilizer/Keyless Push Start System Warning Light
79
Low Fuel Warning Light
79
Open Door Warning Light
79
Electric Power Steering Light
80
Main Beam (High Beam) Indicator Light
80
Turn Signal Indicators
80
Ignition “ON” Indicator Light
81
“ACC” Indicator Light (if Equipped)
81
“PUSH” Indicator Light
81
Lighting Control Lever
82
Lighting Operation
82
Front Fog Light Switch (if Equipped)
83
Normal Turn Signal
83
Turn Signal Control Lever
83
Turn Signal Operation
83
Hazard Warning Switch
84
Lane Change Signal
84
Windshield Washer
85
Windshield Wiper and Washer Lever
85
Tilt Steering Lock Lever
86
Heated Rear Window Switch
87
Horn
87
Operating Your Vehicle
88
Daily Inspection Checklist
89
Exhaust Gas Warning
89
Engine Oil Consumption
90
(Vehicle Without Keyless Push Start System)
91
Ignition Switch
91
Manual Transaxle
92
(Vehicle with Keyless Push Start System)
93
Engine Switch
93
Engine Switch Illumination
94
Keyless Push Start System (if Equipped)
94
Selection of Ignition Modes
95
“Remote Controller Outside” Warning
97
Parking Brake Lever
98
Parking Brake Reminder Buzzer
99
Pedal
99
Before Starting the Engine
100
Brake Pedal
100
Clutch Pedal
100
Starting the Engine (Vehicle Without Keyless Push Start System)
100
Starting a Cold and Warm Engine
101
Starting the Engine (Vehicle with Keyless Push Start System)
101
Stopping the Engine
102
Steering Lock Warning Buzzer
104
Downshifting Maximum Allowable Speeds
105
Shifting
105
Using the Transaxle
105
Continuously Variable Transaxle
106
S (Sport) Mode Switch
106
Gearshift Lever
107
N (Neutral)
107
P (Park)
107
R (Reverse)
107
If You Cannot Shift CVT Gearshift Lever out of “P” (PARK)
108
Braking
109
Anti-Lock Brake System (ABS)
109
Brake Assist System
109
Power-Assisted Brakes
109
How the ABS Works
111
Driving Tips
112
Catalytic Converter
113
Running-In
113
Avoid Excessive Idling
114
Improving Fuel Economy
114
Driving on Hills
115
Highway Driving
115
Driving on Slippery Roads
116
Tire Chains
116
If Your Vehicle Gets Stuck
117
Other Controls and Equipment
120
Fuel Filler Cap
121
Engine Hood
122
To Open the Engine Hood
122
To Close the Engine Hood
123
Card Holder
124
Sun Visor
124
Vanity Mirror
124
Instrument Panel Pocket Light
125
Interior Light
125
Accessory Socket
127
Assist Grips
128
AUX/USB Socket (if Equipped)
128
Coat Hooks
129
Glove Box
129
Cup Holder and Storage Area
130
Console Box
131
Front Bottle Holders
131
Front Seat Back Pocket
132
Rear Armrest with Cup Holders
132
Floor Mats (if Equipped)
133
Footrest
133
Frame Hooks
134
Heating (if Equipped) and Air Conditioning System
135
Air Outlet
136
Center Outlet
137
Side Outlet
137
Blower Speed Selector
138
Description of Controls
138
Manual Air Conditioning System
138
Air Intake Selector
140
Fresh Air
140
Normal Cooling
140
System Operating Instructions
140
Dehumidifying
141
Maintenance
141
Automatic Heating and Air Conditioning System (Climate Control)
142
Air Conditioning Switch
146
Automatic Operation
146
Defrost
146
Installation of Radio Frequency Transmitters
148
Printed Antenna
148
Radio Antenna
148
Audio System (Type A) (if Equipped)
149
Cautions on Handling
150
Notes on Discs
150
Safety Information
150
Adjusting the Volume
153
Basic Operations
153
Mute
153
Turning Power On/Off
153
Adjusting Bass/Treble/Balance /Fader
154
Adjusting the AVC
154
Preset-EQ
154
Listening to the Radio
155
Manual Tuning
156
Seek Tuning
156
Selecting the am Band
156
Selecting the FM Band
156
Listening to a CD
157
Ejecting a CD
158
Fast Forwarding/Rewinding a Track
158
Loading a CD
158
Selecting a Track
158
Display Change
159
Random Playback
159
Repeat Playback
159
Listening to an MP3/WMA/AAC Disc
160
Selecting a Folder
161
Notes on MP3/WMA/AAC
162
What Is AAC?
162
What Is MP3?
162
What Is WMA?
162
Compression Formats
163
Maximum Number of Files/Folders
163
Supported File Systems
163
Listening to Files Stored in a USB Device
164
Selecting a USB Device Mode
165
Notes on USB Device
166
Recording MP3/WMA/AAC Files on a USB Device
166
USB Device Connection
166
Listening to an Ipod
167
Ipod Connection
169
Notes on Ipod
169
Playing Mode Selection
169
AUX Connection
170
AUX Function
170
Steering Switch
172
Adjusting the Listening Volume
173
Ending a Call
173
Phone Registration
173
Receiving a Call
173
Deletion of Call History
174
Selecting the Ringtone
174
Making a Call by Phonebook
175
Registration in Phonebook
175
Transfer of Call History (Call History)
175
Deletion of Registered Data
176
One-Touch Call (Speed Dial)
176
Registration in Speed Dial
176
Deletion of Speed Dial (del Speed Dial)
177
Display of Device Data (Device Name)
177
Reset to the Factory Defaults
177
List of Phones (List Phones)
178
Passkey Setting (Set Passkey)
178
Selection of Phone (Select Phone)
178
BT Function On/Off (BT Power)
179
Deletion of Phone Information
179
Registration of Audio Devices
181
List of Audio Devices (List Audio)
182
Selection of Audio Device (Select Audio)
182
Deletion of Audio Device Information
183
Remote Audio Controls
183
Selecting the Mode
184
Selecting the Radio Station
184
Selecting the Track
184
Anti-Theft Feature
185
Canceling the Anti-Theft Feature
186
Confirming the Personal Identification Number (PIN)
186
Setting the Anti-Theft Function
186
Troubleshooting
187
Error Display Messages
189
Audio System (Type B) (if Equipped)
191
Selecting the Reception Band
198
Radio Reception
198
Auto Store
198
Compatible USB Devices
209
Vehicle Loading and Towing
220
Vehicle Loading
221
Trailer Towing
221
Recreational Towing
222
Towing Instruction Table
222
Towing Your Vehicle
222
Towing Method a
223
Inspection and Maintenance
226
Maintenance Schedule
228
Periodic Maintenance Schedule
228
Maintenance Recommended under Severe Driving Conditions
233
Drive Belt
237
Engine Oil and Filter
237
Specified Oil
237
Oil Level Check
238
Refilling
238
Changing Engine Oil and Filter
239
Replace the Oil Filter
240
Tightening (Viewed from Filter Top)
240
Engine Coolant
241
Refill with Oil and Check for Leaks
241
Selection of Coolant
241
Adding Coolant
242
Coolant Level Check
242
Air Cleaner
243
Coolant Replacement
243
Replacing and Inspection Spark Plugs
243
Spark Plugs
243
Gear Oil
244
Gear Oil Level Check
244
Manual Transaxle Oil
244
Clutch Pedal
245
Continuously Variable Transaxle (CVT) Fluid
245
Fluid Control Clutch
245
Fluid Level Check
245
Gear Oil Change
245
Specified Fluid
245
Changing Oil
246
Brake Fluid
247
Brakes
247
Steering
249
Tire Inspection
249
Tires
249
Battery
251
Fuses
252
Fuses in the Engine Compartment
252
Main Fuse
252
Primary Fuses
252
Fuses under the Dash Board
254
Headlight Aiming
255
Bulb Replacement
256
Halogen Headlights
256
Headlights
256
Bulb Holder
257
Other General Lights
257
Front Fog Light
258
Rear Combination Light
259
Reversing Light
259
License Plate Light
260
Trunk Lid Light
261
Wiper Blades
261
Windshield Washer Fluid
263
Air Conditioning System
264
Emergency Service
266
Jacking Instructions
267
Tire Changing Tool
267
Front Jacking Point for Garage Jack (1)
269
Rear Jacking Point for Garage Jack (2)
269
Changing Wheels
270
Flat Tire Repair Kit
271
Flat Tire Repair Kit Contents
271
Full Wheel Cover
271
How to Perform an Emergency Repair
272
How to Use the Kit’s Compressor to Inflate a Tire
274
Jump Starting Instructions
274
2-Wheel Drive (2WD) CVT
275
Towing
275
If the Engine Is Flooded
276
If the Starter Does Not Operate
276
If the Engine Overheats
277
Appearance Careappearance Care
280
Repair Finish Damage
281
How to Help Prevent Corrosion
281
Corrosion Prevention
281
Vehicle Cleaning
282
Cleaning the Interior
282
Vinyl Upholstery
282
Fabric Upholstery
282
Leather Upholstery
283
Seat Belts
283
Vinyl Floor Mats
283
Instrument Panel and Console
283
Cleaning the Exterior
284
Washing
284
Waxing
285
General Information
286
Vehicle Identification
287
Chassis Serial Number
287
Engine Serial Number
287
Specifications
288
Symbols
294
Index
294
Battery Label Symbol Meanings
300
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Suzuki Ciaz series and is the answer not in the manual?
Ask a question
Suzuki Ciaz series Specifications
General
Brand
Suzuki
Model
Ciaz series
Category
Automobile
Language
English
Related product manuals
Suzuki CIAZ
324 pages
Suzuki SX4 S-Ccross
454 pages
Suzuki SX4 S-Cross 2016
504 pages
Suzuki Aerio
232 pages
Suzuki Jimny
476 pages
Suzuki Swift
557 pages
Suzuki Maruti
136 pages
Suzuki Wagon R
108 pages
Suzuki VITARA series
770 pages
Suzuki Ertiga Series
194 pages
Suzuki IGNIS Series 2016
467 pages
Suzuki GRAND VITARA XL-7
656 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
