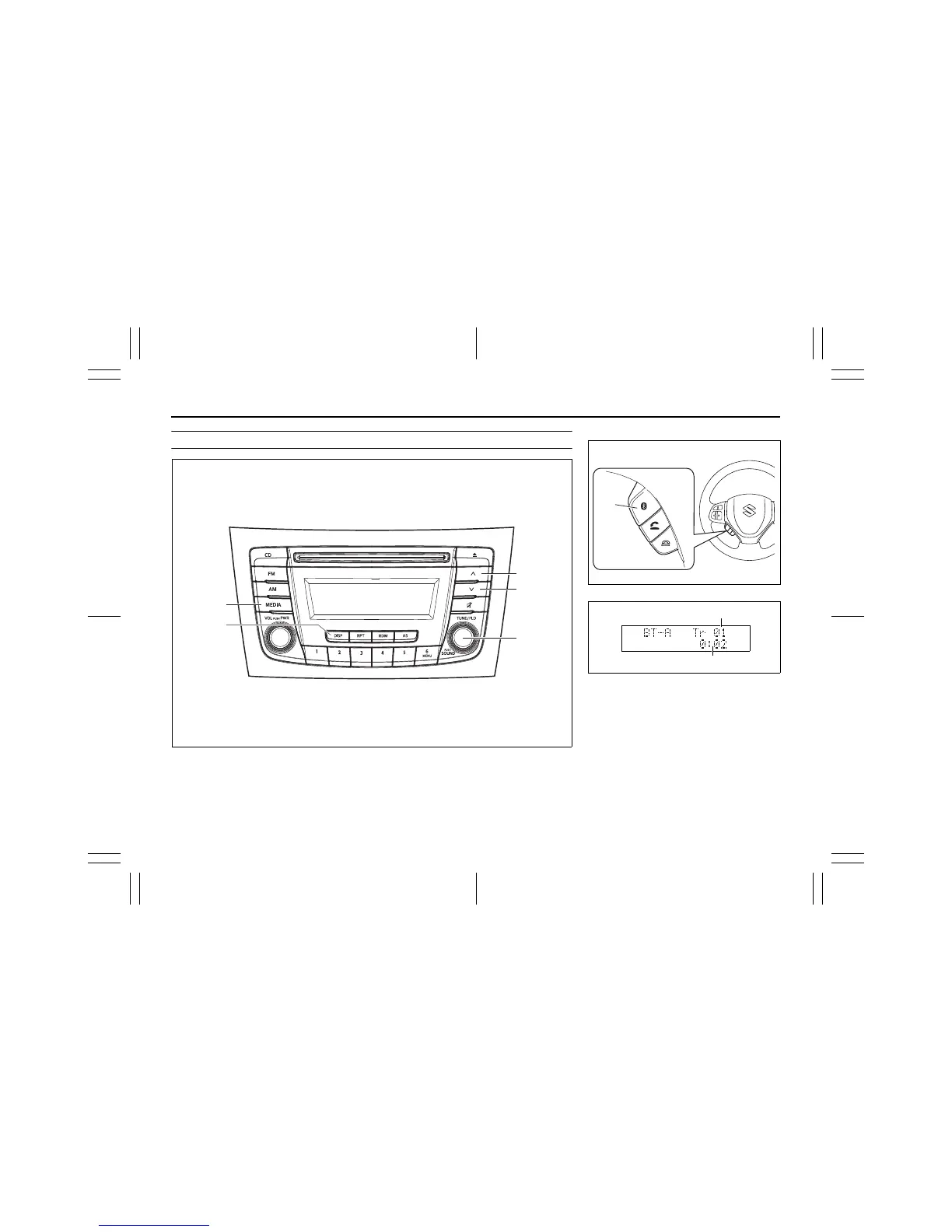

5-60
OTHER CONTROLS AND EQUIPMENT
79MS0-14E
Bluetooth
®
audio (if equipped)
(1)
(2)
(3)
(4)
(5)
Steering switch
Display
(1)
MEDIA button
(2)
TUNE FOLDER PUSH SOUND knob
(3)
Up button
(4)
Do
wn button
(5)
DISP button
(6)
Bluetooth
®
setup button
(A)
Track number
(B)
Play time
(6)
(B)
(A)
179
181
