7-36

INSPECTION AND MAINTENANCE

79MS0-14E

NOTE:

Some wiper blades may be different from

the ones described here depending on

vehicle specifications. If so, consult your

SUZUKI dealer for proper replacement

method.

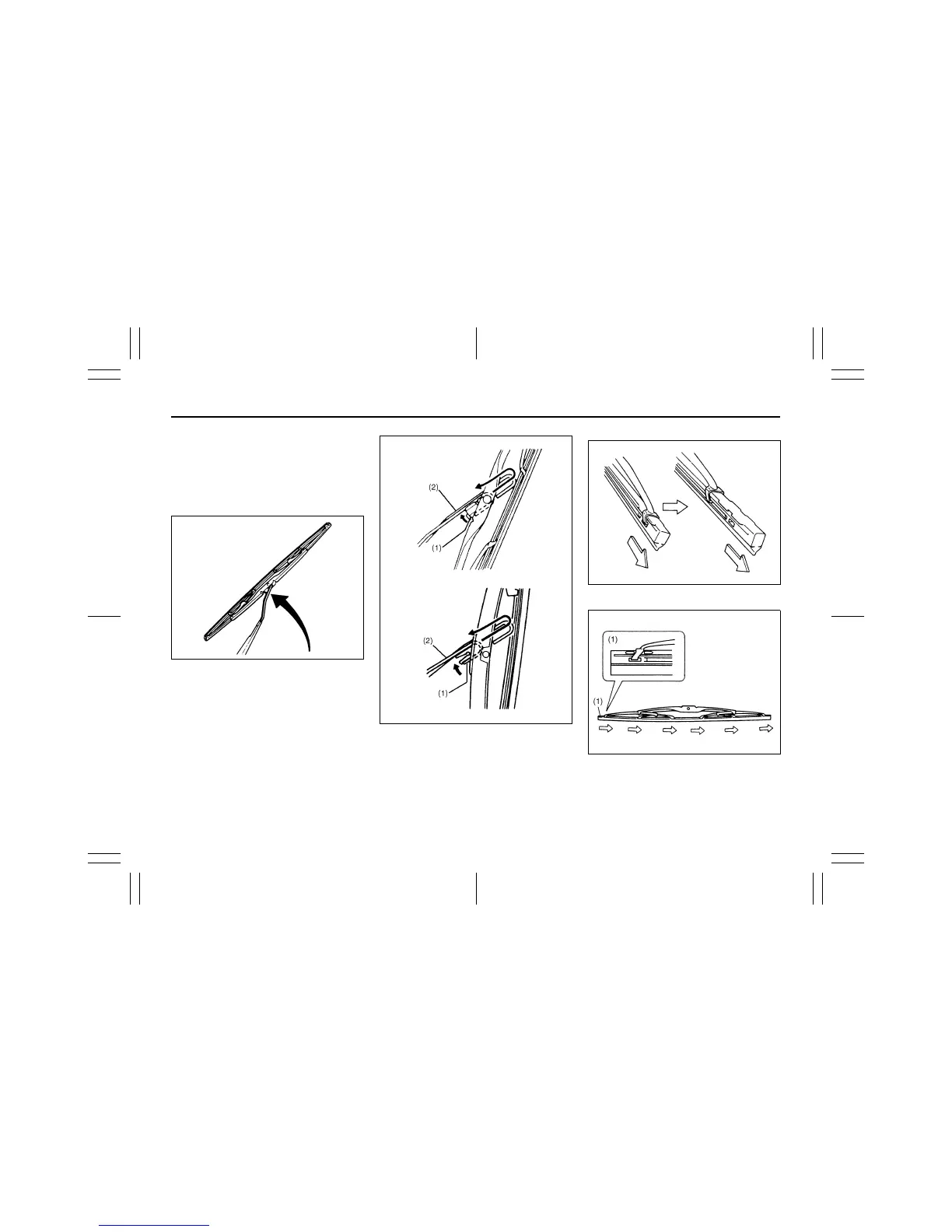

For windshield wipers:

70G119

1) Hold the wiper arm away from the win-

dow.

54G130

2) Squeeze lock (1) towards wiper arm (2)

and remove the wiper frame from the

arm as shown.

3) Unlock the lock end of the wiper blade

and slide the blade out as shown.

Removal

60A260

Installation

54G132

(1) Locked end

EXAMPLE
