MOTOR INSTALLATION 3-17
TRANSOM CENTERLINE
SINGLE MOTOR

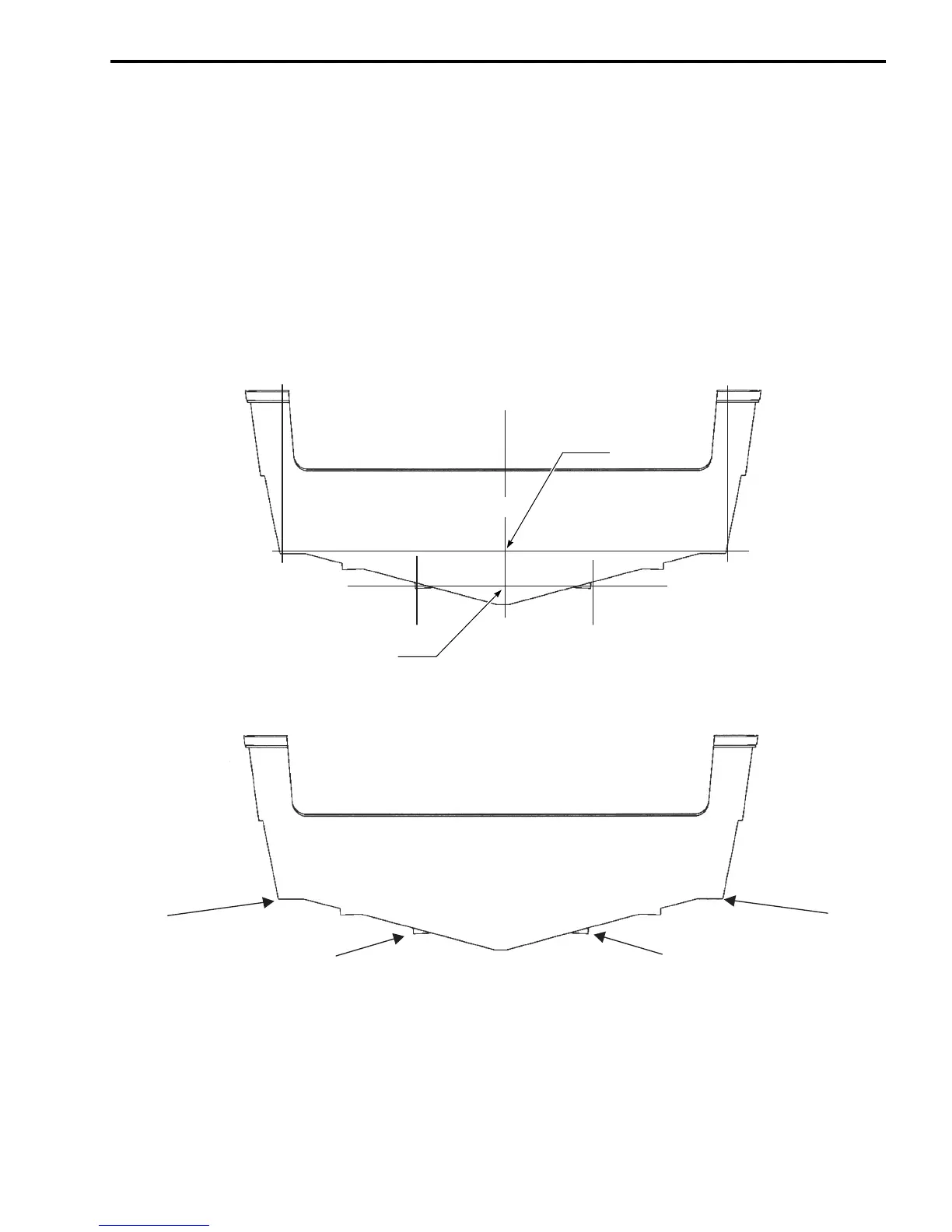

1. Prepare a tape measure, marking pen and long ruler.
2. On the transom surface, measure the horizontal distance from chine to chine. Measure the center (1/2)
of the chine-to-chine distance and mark B that position on the transom surface.
3. Measure the horizontal distance between the two garboard stripes. Measure the center (1/2) of the
stripe-to-stripe distance and mark C that position on the transom surface.
4. Using a ruler, mark the vertical line A intersecting with the two marks on the transom surface. This line is
the centerline used when installing a single engine.
Reference
Chine
Chine
Stripe
Stripe
B
C
A
