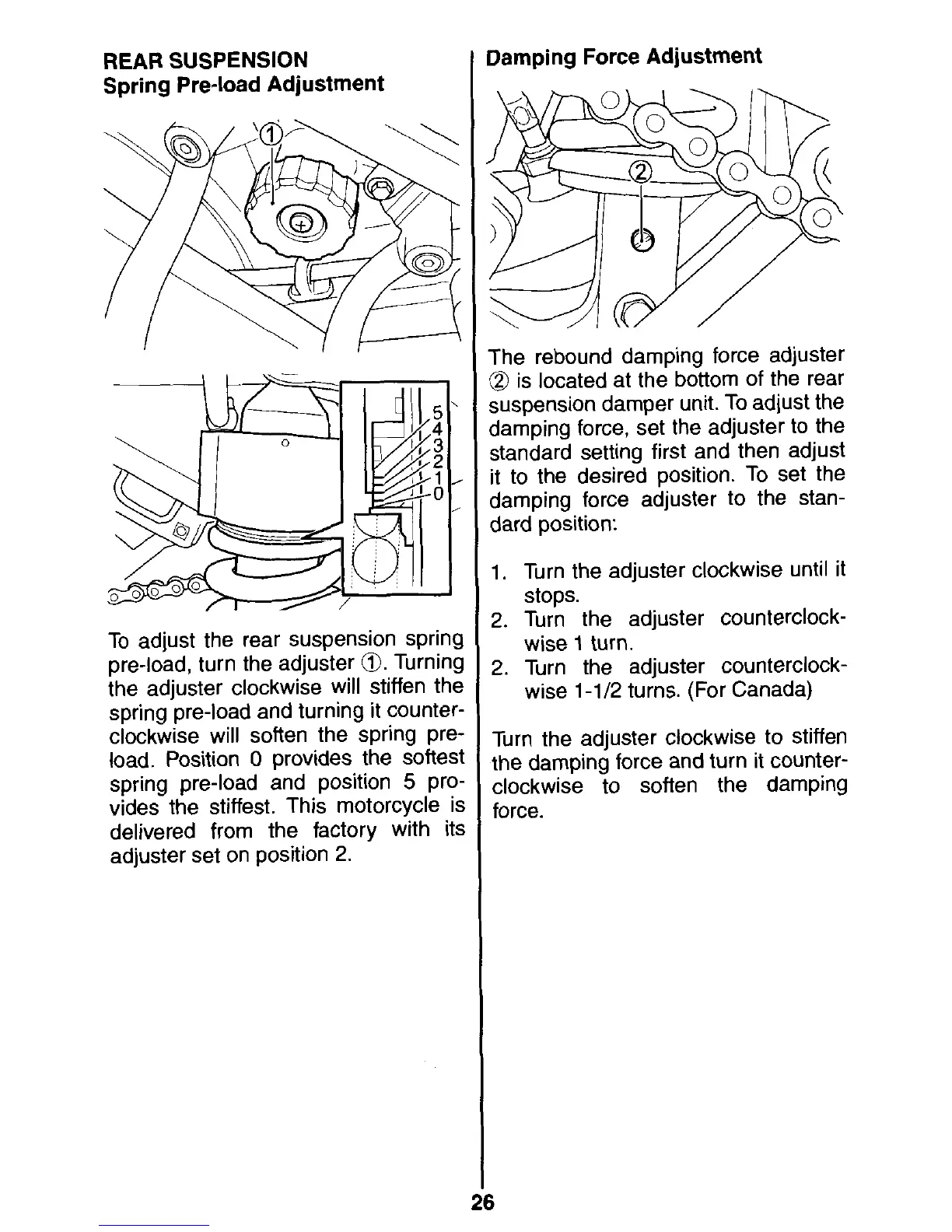

REAR SUSPENSION
Spring Pre-load Adjustment
To adjust the rear suspension spring
pre-load, turn the adjuster
@. Turning
the adjuster clockwise will stiffen the
spring pre-load and turning it counter-
clockwise will soften the spring
pre-
load. Position
0 provides the softesl
spring pre-load and position
5 pro-
vides the stiffest. This motorcycle
is
delivered from the factory with its
adjuster set on position 2.
Samping Force Adjustment
The rebound damping force adjuster
3 is located at the bottom of the rear
suspension damper unit. To adjust the
damping force, set the adjuster to the
standard setting first and then adjust
it to the desired position. To set the
damping force adjuster to the stan-
dard position:
1. Turn the adjuster clockwise until it
stops.
2. Turn the adjuster counterclock-
wise
1 turn.
2. Turn the adjuster counterclock-
wise 1-112 turns. (For Canada)
Turn the adjuster clockwise to stiffen
the damping force and turn it counter-
clockwise to soften the damping
force.

Suzuki DL650 Specifications

General

Displacement	645cc
Compression Ratio	11.2:1
Fuel System	Fuel injection
Transmission	6-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Starter	Electric
Final Drive	Chain
Engine Type	4-stroke, liquid-cooled, DOHC, 90° V-twin
Bore x Stroke	81.0mm x 62.6mm
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	110/80R19M/C 59H
Rear Tire	150/70R17M/C 69H
Overall Width	835mm
Overall Height	1405mm
Ground Clearance	170mm
Seat Height	835mm
Fuel Tank Capacity	20.0L
