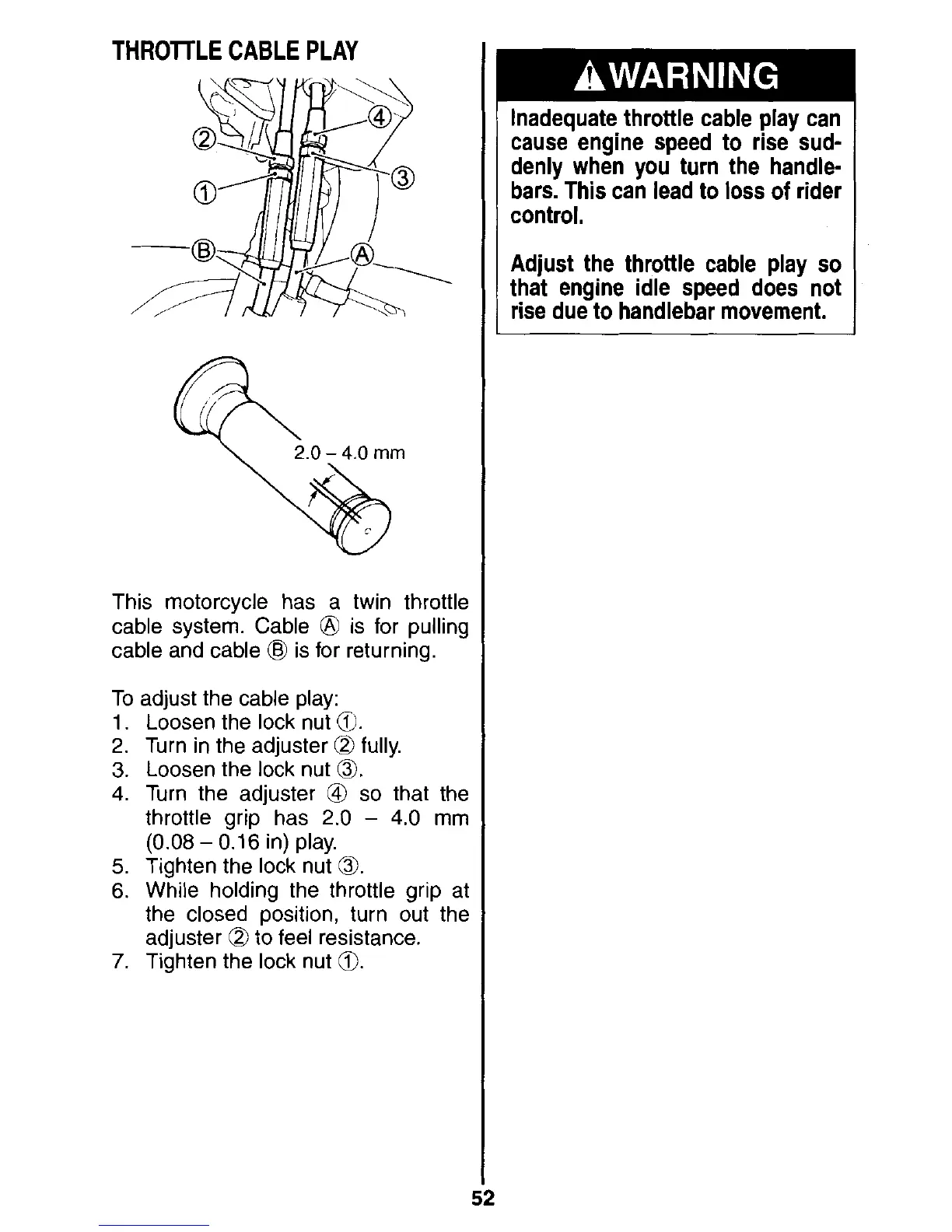

Suzuki DL650 User Manual

This motorcycle has a twin throttle
cable system. Cable
@ is for pulling
cable and cable
@ is for returning.
To adjust the cable play:
1. Loosen the lock nut
K).
2. Turn in the adjuster Q fully.
3. Loosen the lock nut 0.
4. Turn the adjuster @ so that the
throttle grip has 2.0
- 4.0 mm
(0.08
- 0.16 in) play.
5. Tighten the lock nut
0.
6. While holding the throttle grip at
the closed position, turn out the
adjuster
O to feel resistance.
7. Tighten the lock nut 0.
Inadequate throttle cable play can
cause engine speed to rise sud-
denly when you turn the handle
bars. This can lead to loss of rider
control.
Adjust the throttle cable play so
that engine idle speed does not
rise due to handlebar movement.

Suzuki DL650 Specifications

General

Displacement	645cc
Compression Ratio	11.2:1
Fuel System	Fuel injection
Transmission	6-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Starter	Electric
Final Drive	Chain
Engine Type	4-stroke, liquid-cooled, DOHC, 90° V-twin
Bore x Stroke	81.0mm x 62.6mm
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	110/80R19M/C 59H
Rear Tire	150/70R17M/C 69H
Overall Width	835mm
Overall Height	1405mm
Ground Clearance	170mm
Seat Height	835mm
Fuel Tank Capacity	20.0L
