Suzuki DL650 User Manual

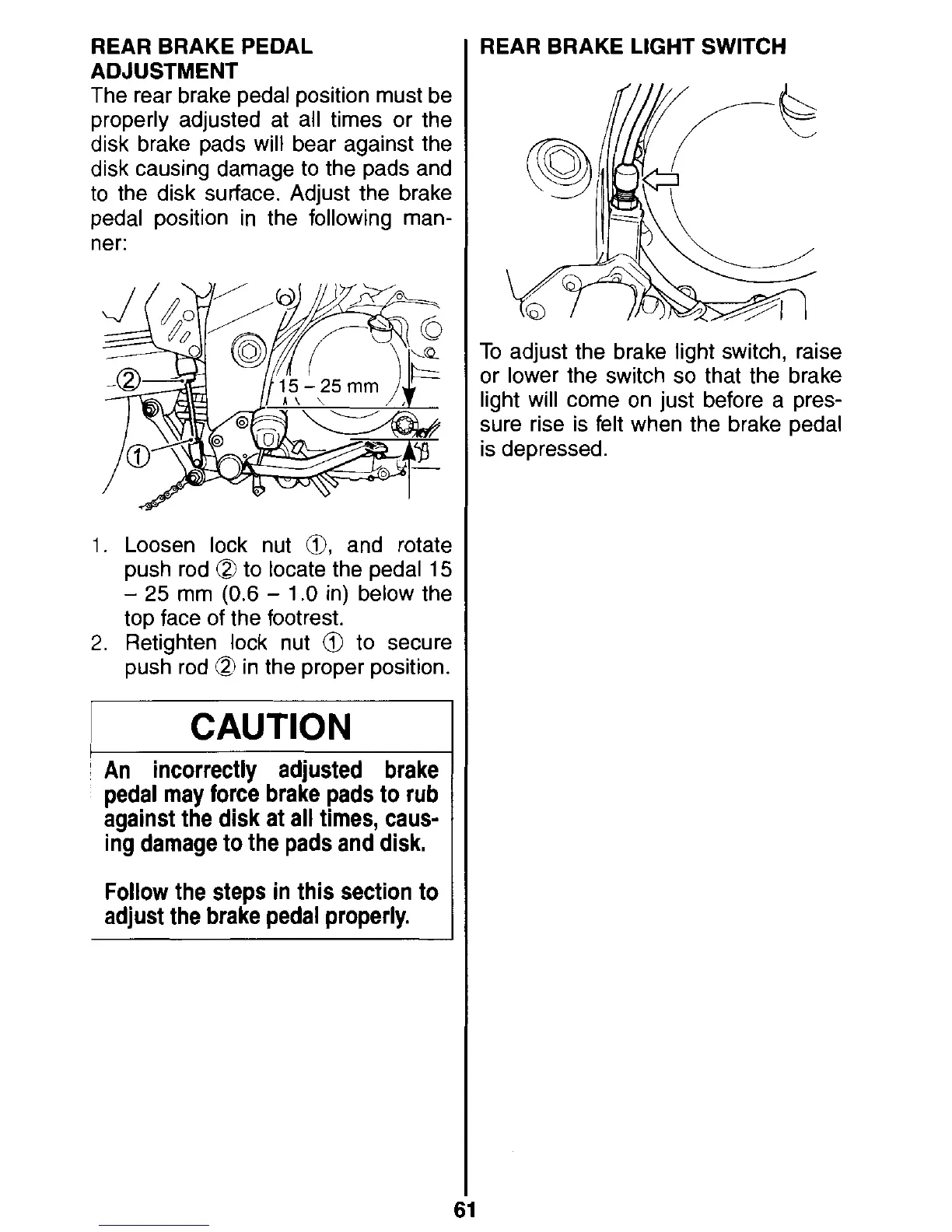

REAR BRAKE PEDAL
ADJUSTMENT
The rear brake pedal position must be
properly adjusted at all times or the
disk brake pads will bear against the
disk causing damage to the pads anc
to the disk surface. Adjust the brake
pedal position in the following man
ner:
1. Loosen lock nut 0, and rotate
push rod
0 to locate the pedal 11
- 25 mm (0.6 - 1 .O in) below the
top face of the footrest.
2. Retighten lock nut @ to secure
push rod
@ in the proper position
~ CAUTION
I An incorrectly adjusted brake
pedal may force brake pads to rub
against the disk at all times, caus-
ing damage to the pads and disk.
Follow the steps in this section to
adjust the brake pedal properly.
To adjust the brake light switch, raise
or lower the switch so that the brake
light will come on just before a pres-
sure rise is felt when the brake pedal
is depressed.
REAR BRAKE LIGHT SWITCH
1

Suzuki DL650 Specifications

General

Displacement	645cc
Compression Ratio	11.2:1
Fuel System	Fuel injection
Transmission	6-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Starter	Electric
Final Drive	Chain
Engine Type	4-stroke, liquid-cooled, DOHC, 90° V-twin
Bore x Stroke	81.0mm x 62.6mm
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	110/80R19M/C 59H
Rear Tire	150/70R17M/C 69H
Overall Width	835mm
Overall Height	1405mm
Ground Clearance	170mm
Seat Height	835mm
Fuel Tank Capacity	20.0L
