4-50 DISASSEMBLY AND ASSEMBLY
•

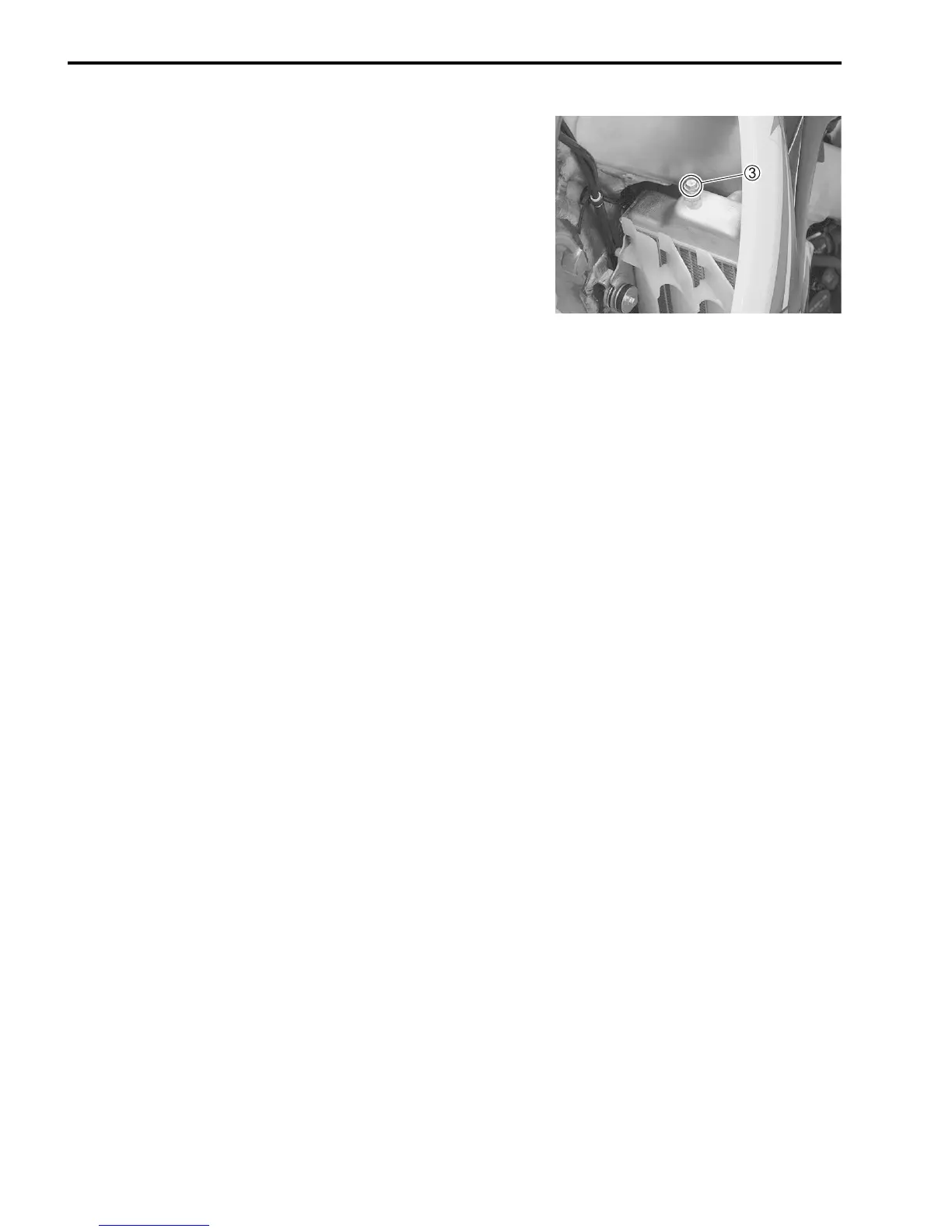

Tighten the air bleeder bolt
3
to the specified torque.
Radiator air bleeder bolt: 6 N·m (0.6 kgf-m, 4.5 lbf-ft)
•
Add engine coolant up to the radiator inlet.
•
Tighten the radiator cap securely.
•
After warming up and cooling down the engine, add the spec-
ified engine coolant.
