DISASSEMBLY AND ASSEMBLY 4-51
ELECTRICAL SYSTEM

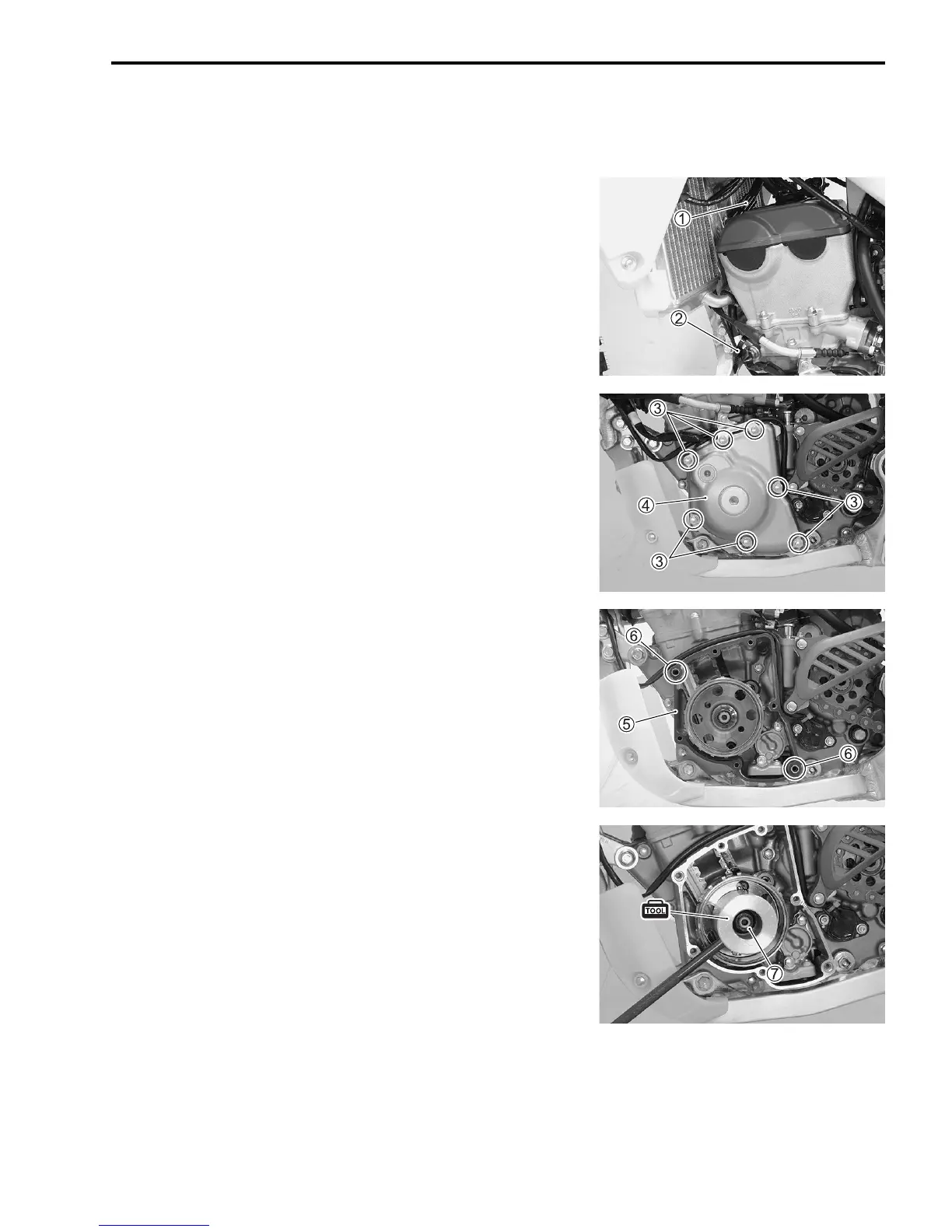

MAGNETO ROTOR
REMOVAL
•
Drain engine oil. (
2-14)
•
Disconnect the magneto lead wire coupler
1
.
•
Remove the clamp
2
.
•
Remove the gearshift lever.
•
Remove the magneto cover
4
by removing their bolts
3
.
•
Remove the gasket
5
and dowel pins
6
.
•
Hold the magneto rotor with the special tool and remove the
rotor nut
7
.
09930-44560: Rotor holder
130
132
