4-58 DISASSEMBLY AND ASSEMBLY
INSPECTION
Wheel Spacer

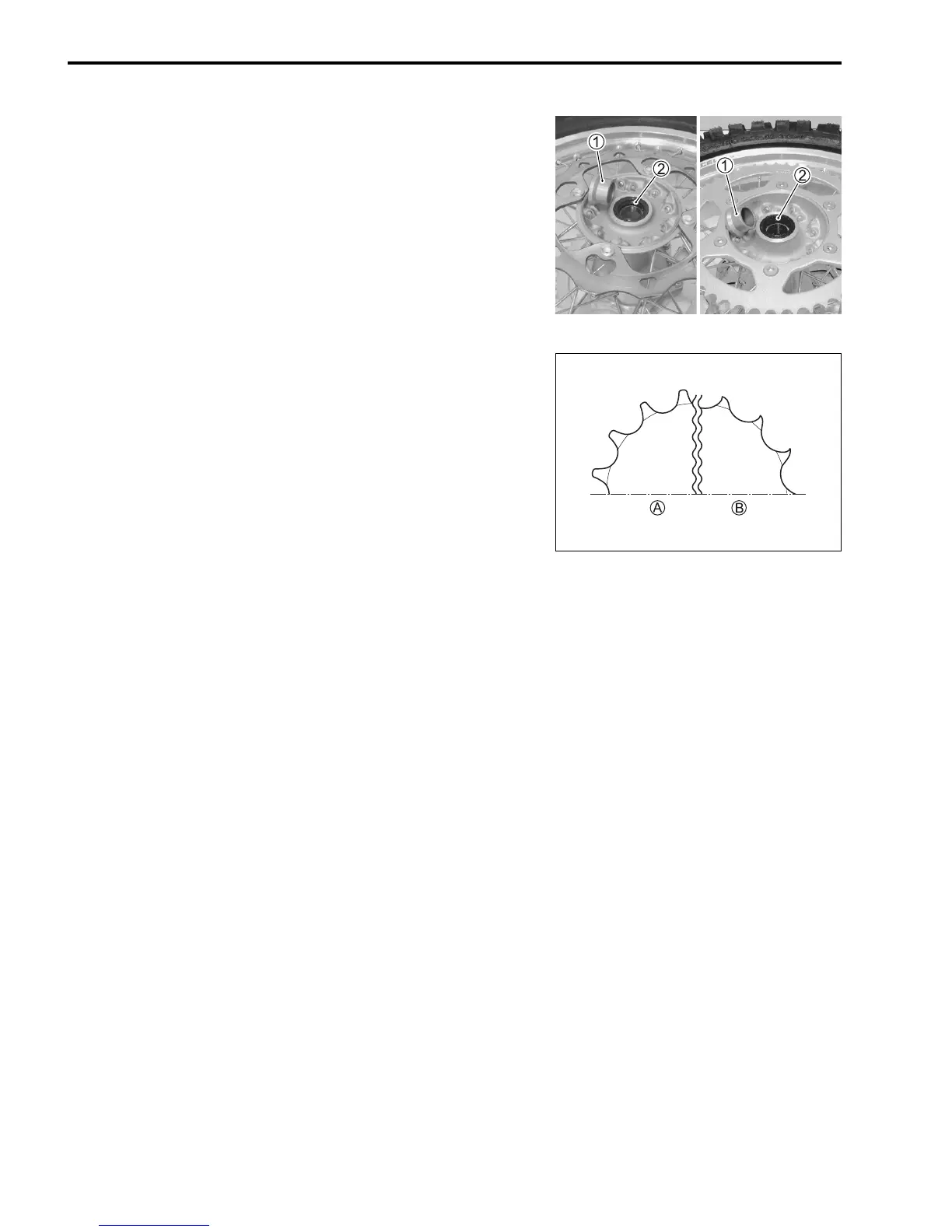

• Remove the wheel spacers from the rear wheel.
• Inspect the rear wheel spacers 1 and dust seals 2 for wear
and cracks.
• If any defects are found, replace the spacer 1 together with
the dust seal 2.
NOTE:
Apply grease on the spacers 1 and dust seals 2 before reas-
sembling.
Sprocket
• Inspect the sprocket teeth for wear.
• If they are worn as shown, replace the two sprockets and
drive chain as a set.
A Normal wear
B Excessive wear
Axle Shaft (4-55)
Wheel Rim (4-55)
Wheel Bearing (4-55)
