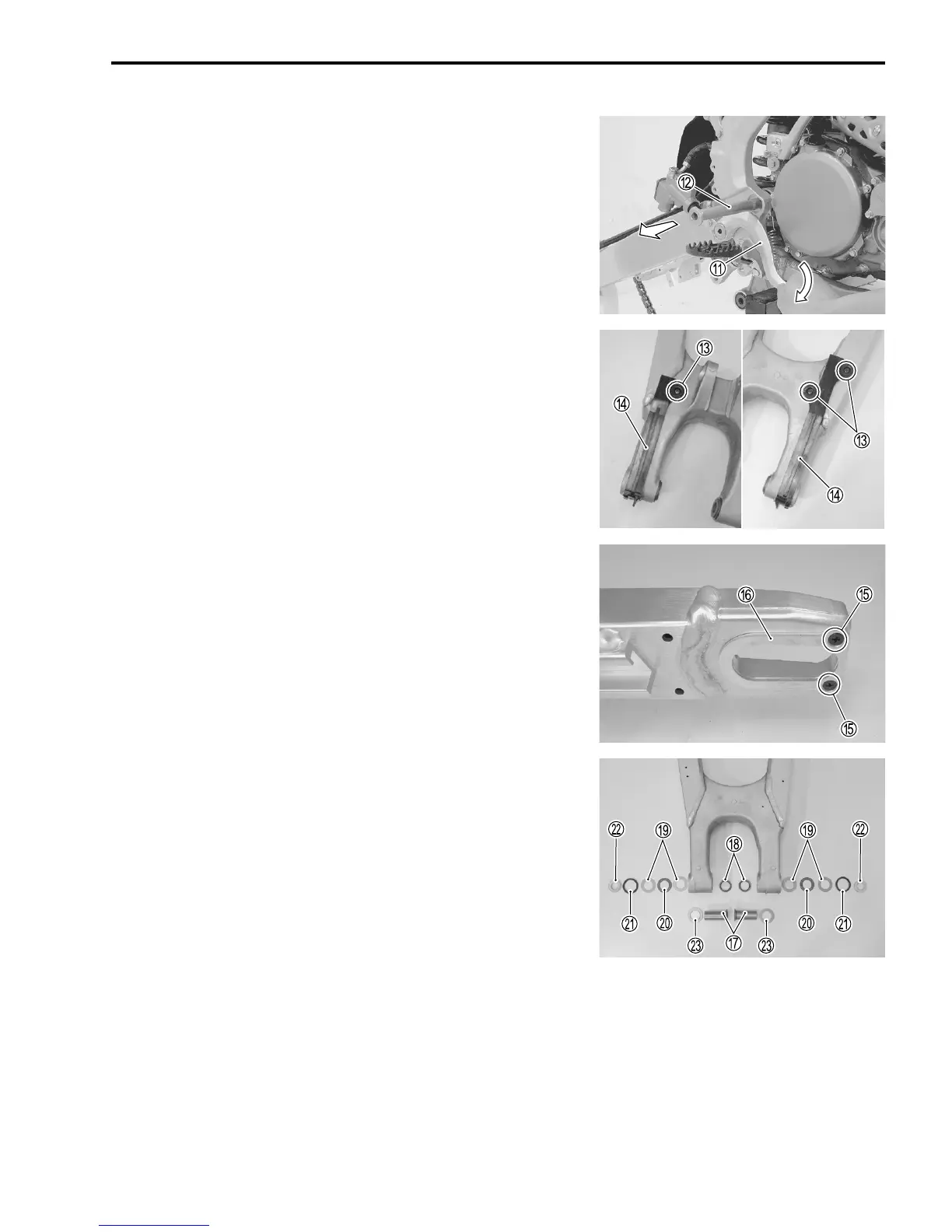

DISASSEMBLY AND ASSEMBLY 4-103
•
Down the rear brake pedal
A
and remove the pivot shaft
B
.
•
Remove the swingarm.
•
Remove the chain buffer
D
by removing its screws
C
.
•
Remove the plates
F
by removing its screws
E
.
•
Remove the following parts from the swingarm.
Spacer
G
Oil seal
H
Washer
I
Thrust bearing
J
Dust seal
K
Spacer
L
Washer
M
