WIRING HARNESS, CABLE AND HOSE ROUTING

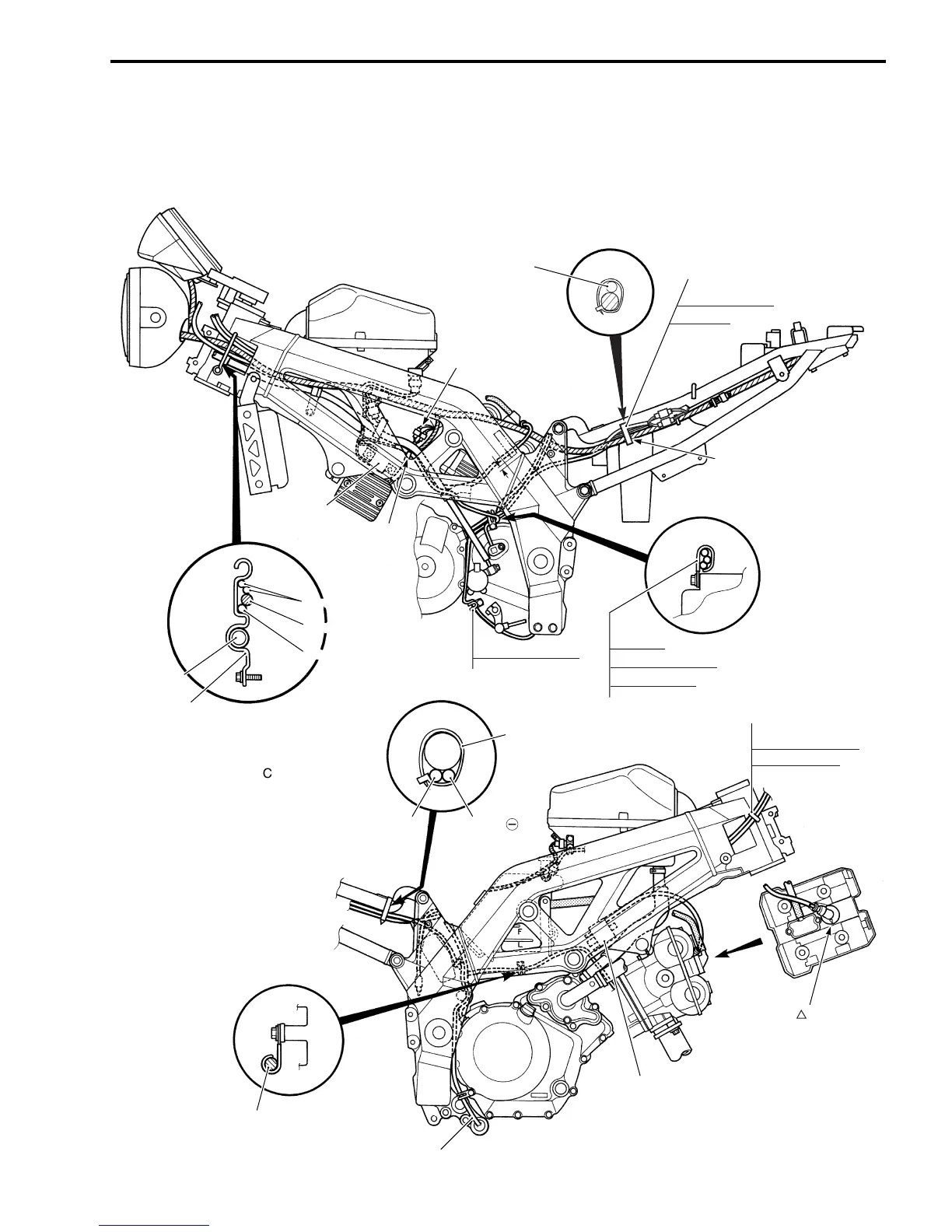

WIRING HARNESS ROUTING
Set the coupler
center of the frame.
Ignition coil
Set the speed sensor
coupler under the
clutch hose.
Clutch hose
Cable guide
Throttle cables
Harness
Handle switch (L)
Clamp
Starter motor
Battery -
Clamp the lead wire
under the frame.
Clamp
HO2 sensor (For E-02, 19)
Ignition coil
Clamp
Handle switch (R)
Ignition switch
Clamp
Magneto
Side stand switch
Speed sensor
Clamp
Side stand switch
UPPER
Magneto
Clamp
Wiring harness
Magneto lead
Set the magneto coupler
above the generator coupler.
Set “ ” mark
exhaust side.
