14 SV1000K3

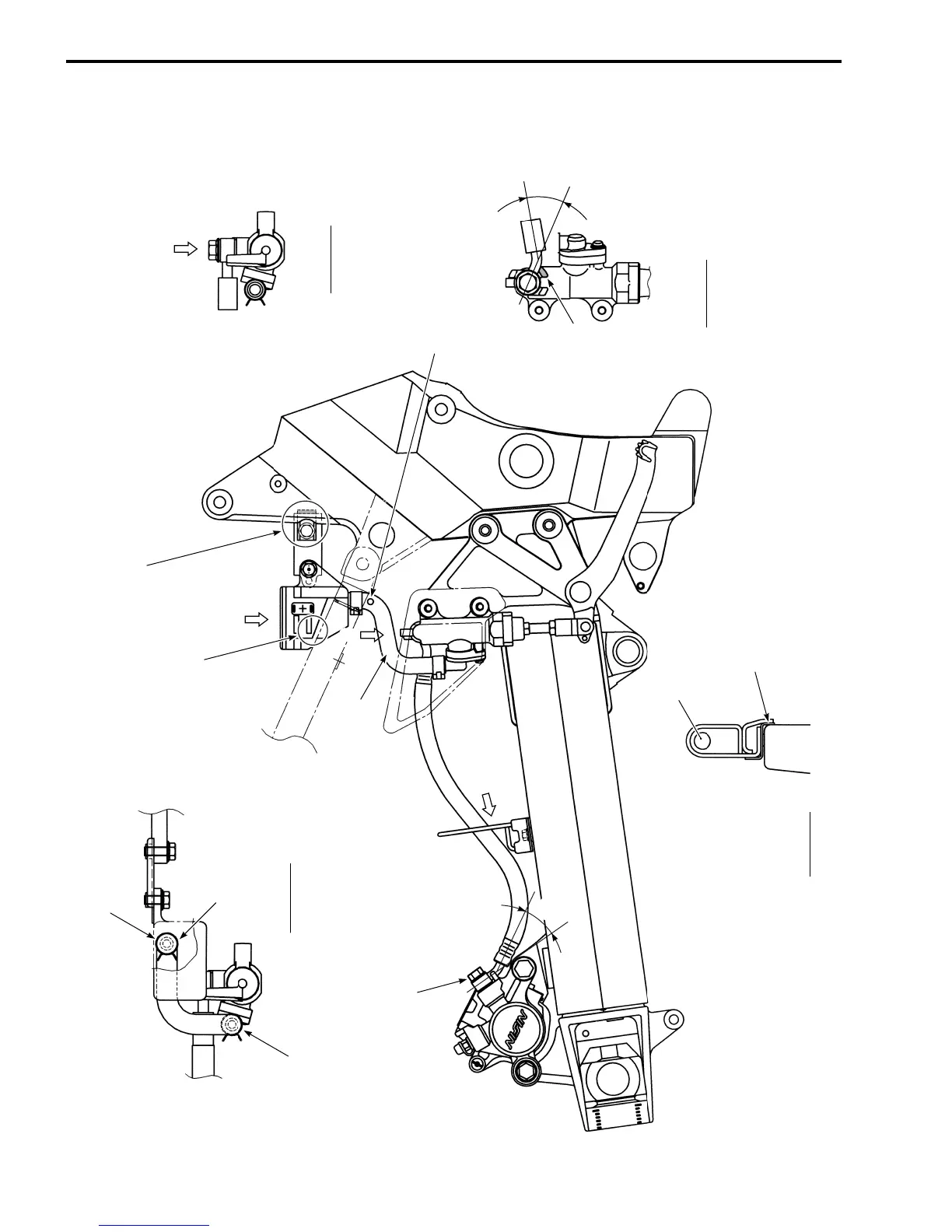

REAR BRAKE HOSE ROUTING
After the brake hose union touching to the stopper, tighten the union bolt.
Face the clamp ends backward.
The white paint faces outside.
VIEW A
VIEW D
VIEW B
VIEW C
A
B
D
C
Face the clamp ends backward.
Brake hose
35˚
Be careful not to contact the seat rail and reservoir tank, when installing.
The white paint faces outside.
Insert the hose until dead end.
35˚
After the brake hose union touching to the stopper, tighten the union bolt.
After positioning the clamp with the stopper, tighten the clamp bolt.
After positioning the clamp with the stopper, tighten the clamp bolt.
