SV1000K3 13

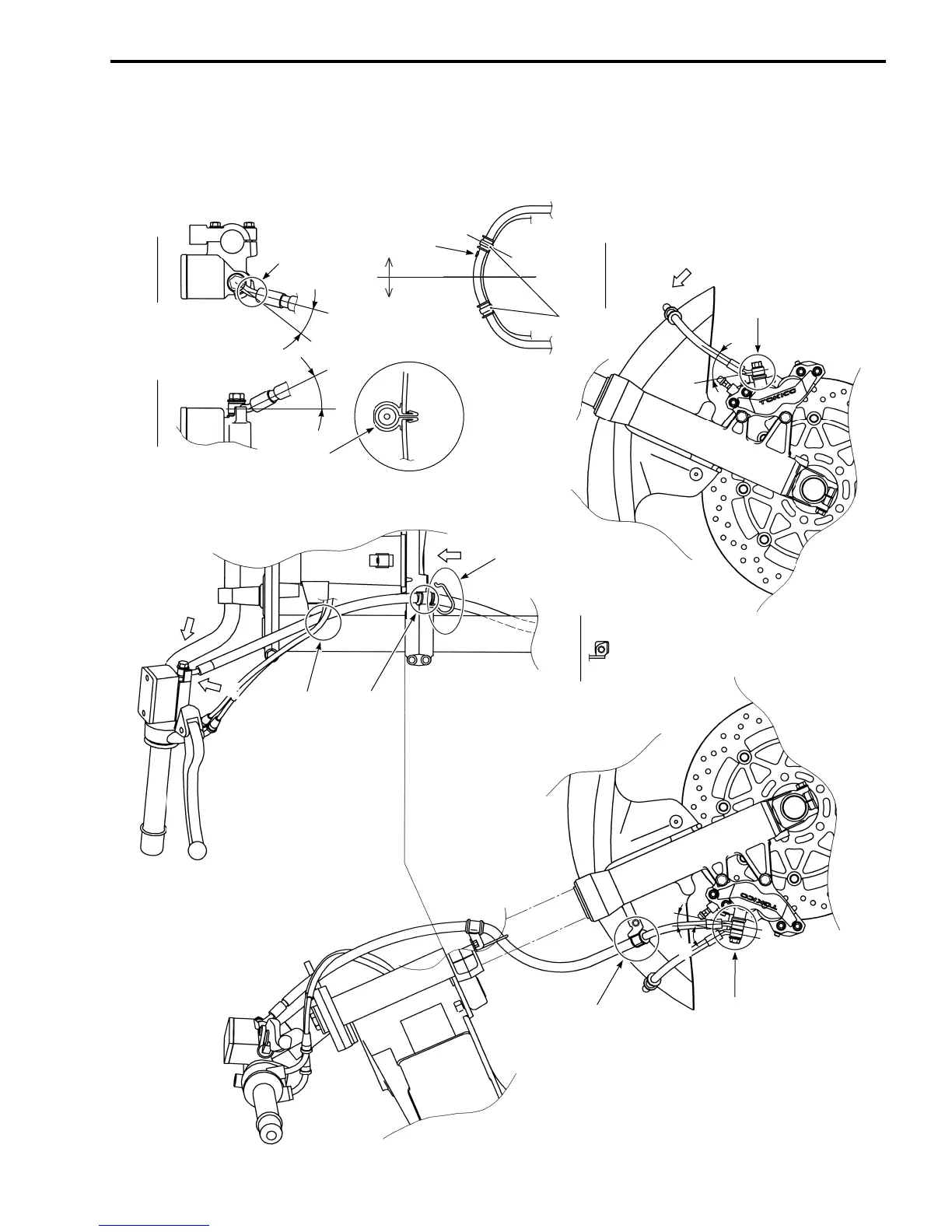

FRONT BRAKE HOSE ROUTING
28˚
21˚
A
B
Pass through the brake hose into the guide.
Pass the brake hose behind the throttle cables.
VIEW A VIEW B
SECT E
VIEW C
Insert the clamp to the hole in front of the fender fully.
Clamp
VIEW D
E
E
After positioning the clamp with the stopper, tighten the clamp bolt.
D
42˚
Clamp the brake hose firmly.
Clamp the brake hose firmly.
14˚
42˚
C
Green paint mark is on upside.
After the brake hose union touching to the stopper, tighten the union bolt.
After the brake hose union touching to the stopper, tighten the union bolt.
RHLH
After the brake hose union touching to the stopper, tighten the union bolt.
