• Remove the handlebars by removing the handlebar clamp
bolts.
REASSEMBLY AND REMOUNTING

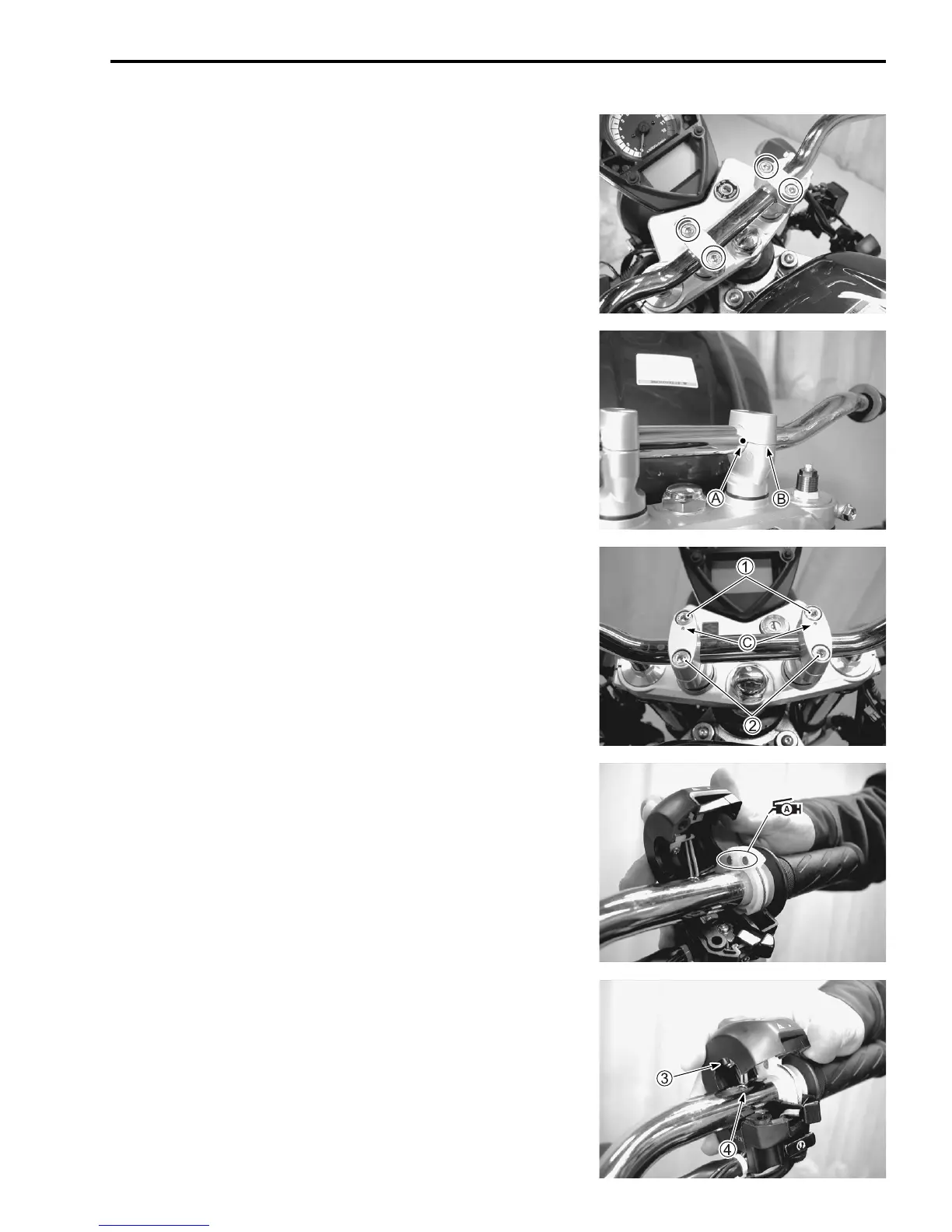

• Install the handlebars with the punch mark

A aligned with the
mating surface

B of the handlebar holder.
• Set the punch mark

C on the handlebar clamp forward.
• Tighten the handlebar clamp bolts to the specified torque.
" Handlebar clamp bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
NOTE:
When tightening the handlebar clamp bolts, first tighten the bolt

1 and then tighten the bolt

2.
• Install the throttle grip and cables.
(Throttle cable routing: #11)
• Apply SUZUKI SUPER GREASE to the throttle cables and
their holes.
$ 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Install the right handlebar switch to the handlebar by engag-
ing the stopper

3 with the handlebar hole

4.
• Install the front brake master cylinder.
(#SV1000S 6-75 and 8)
