6-34
FRONT BRAKE LINING WEAR LIMIT
The motorcycle is equipped with the brake
lining wear limit indicator on the front brake.
To check wear of the brake lining, perform
the following:
1. Check if the brake system is properly
adjusted.

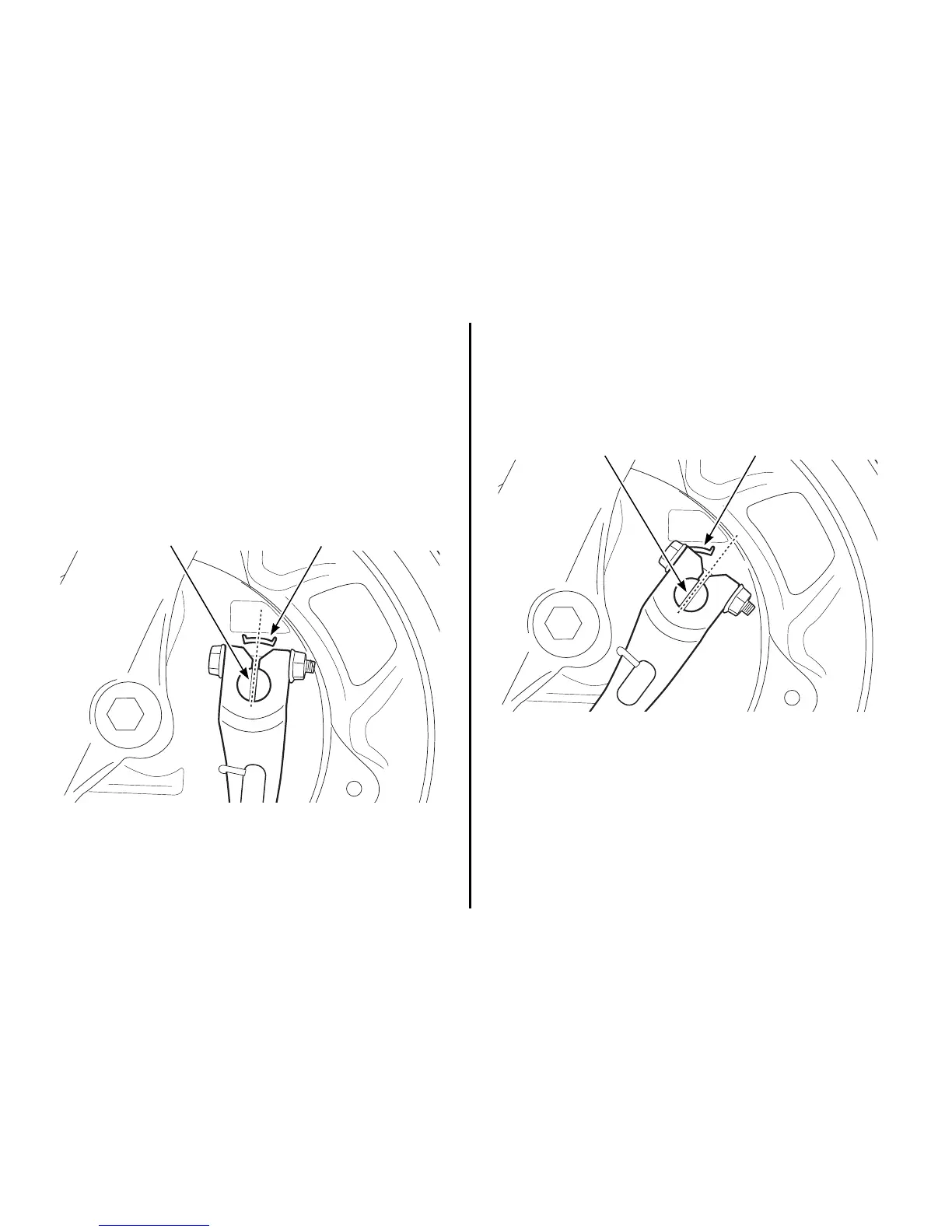

Index mark Range
Fig.A The extension line of the index mark
is within the range.
2. While fully applying the brake check to
see that the extension line of the index
mark is within the range on the brake
panel as shown in the Fig. A.
Index mark Range
Fig.B The extension line of the index mark
is out of the range.
