(The following is SYM 4 stroke liquid cooling scooter’s basic operation, and they could vary from different
individual models. Please consult the end of this manual.)

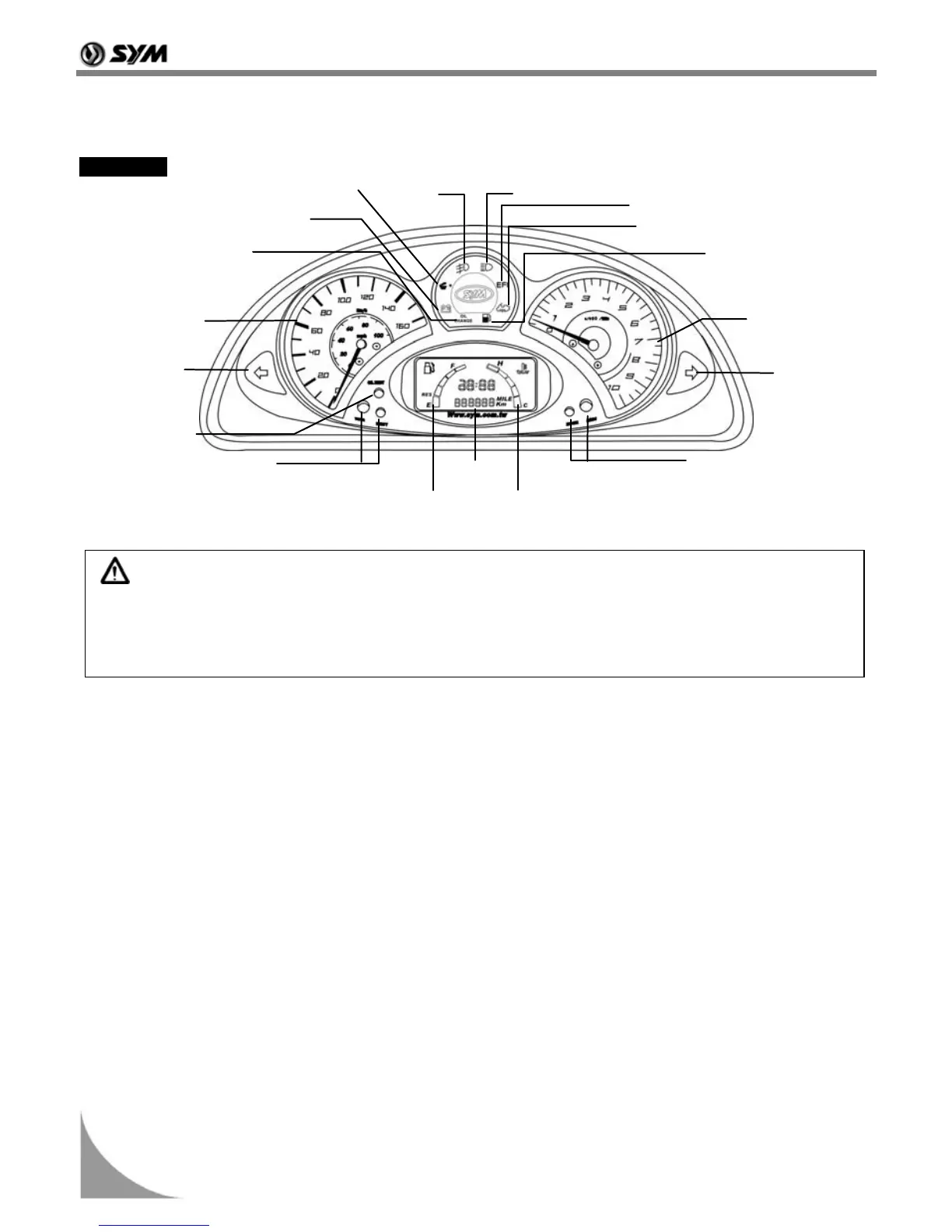

GAUGES
6
7. Use of each component
High Beam
Indicator
Fuel Warning
Indicator
tachometer
Side Stand Down Indicator
EFi Indicator
Speedometer
Foggy
Indicator
Engine Oil Charge
Storage box Indicator
Battery Charge Alarm
Turn Signal
Indicator
Turn Signal
Indicator
Odometer set button
Oil Reset Key
Engine Coolant
Temperature
Fuel
Indicator
Odometer
Time set button
CAUTION :
• Before battery installation, please do not use the kick starter to start the engine, in prevention.
• Not to have trouble on electrical meter working, or damage the electrical meter.
• Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such.
• As gasoline…etc. to avoid damaging these components.
• INFORMATION OF THE GAUGE BOTTON
1. O / R : clear the oil reset.
2. T / T : switch between total kilometer and trip kilometer.
3. T / R : clear the trip kilometer.
4. HOUR : time( hour) setting.
5. MIN : time( minute) setting.
• High Beam Indicator( blue)：This indicator comes on with high beam headlight is turned on.
• Foggy Indicator(green)：This demonstrated the fog lamp opens.
• Storage box Indicator：This demonstrated the Storage box lamp opens.
• Turn Signal Indicator(green)：The left or right Indicator will be flashing according to the operated
directions of turn signal light switch when it is turned on.
• Fuel Gauge：
The fuel gauge doesn’t come on when the main switch is at “OFF” position.
When key switch is turned to “ON”, and the “pointer” indicates above “E” position, it shows how much fuel
in the tank, and also the fuel indicator light keeps coming on. When the “pointer” is below “E” position, the
fuel indicator flashes, and the fuel warning indicator(orange) will come on. It means there is only
approximately 1.2 liter of fuel left in the tank. Refuel octane 92/95/98 unleaded gasoline immediately.
