BMS Connection
5 BMS Connection
Communication possibilities for controller E283 WEB.
• RS485(Modbus): 50-51-52 or 60-61-62
• RS485(BACnet): 50-51-52 or 60-61-62
• RS485(Exoline): 50-51-52-53 or 60-61-62-63
• TCP/IP Exoline
• TCP/IP Modbus
• TCP/IP WEB
• TCP/IP BACnet

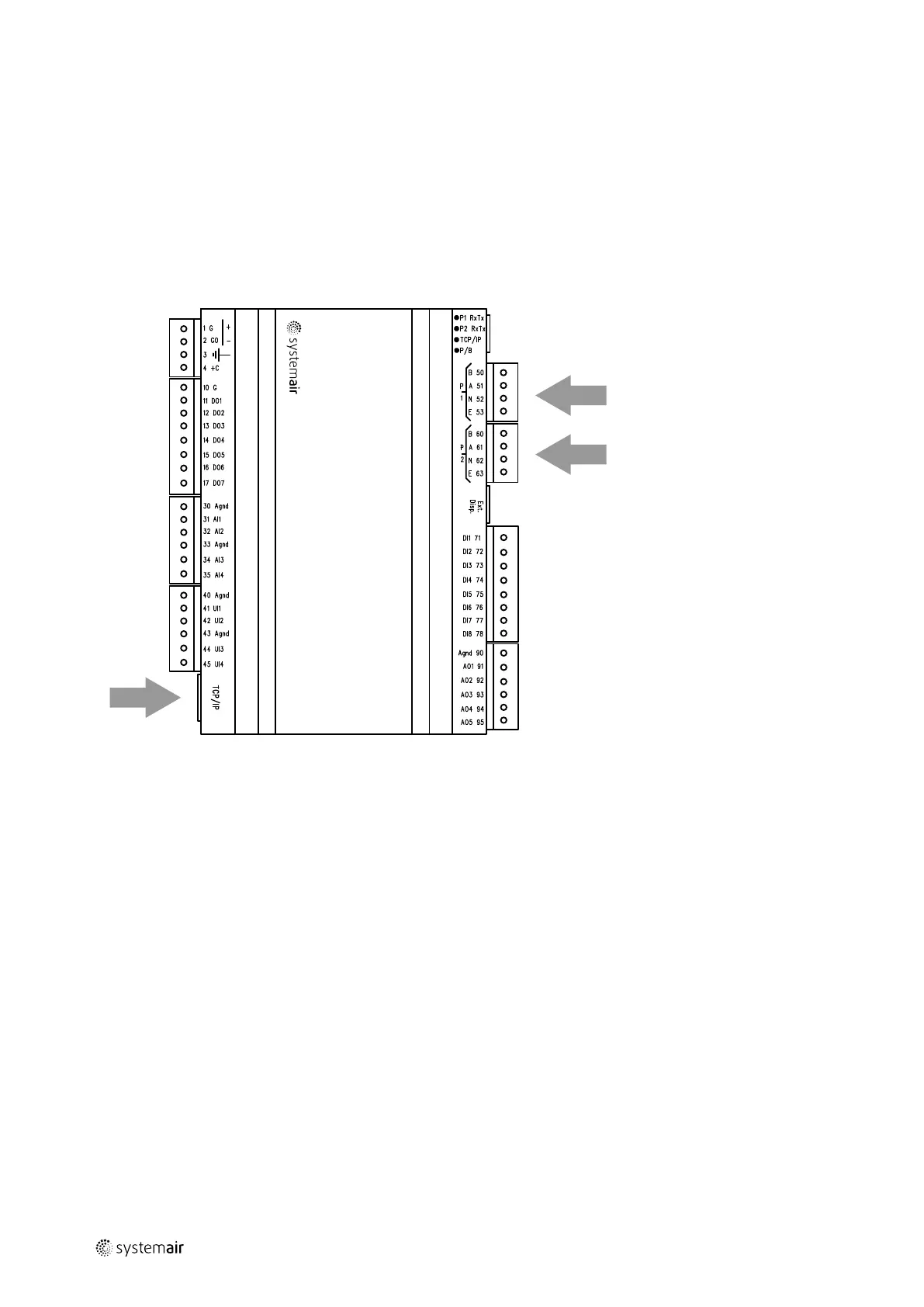

Fig. 8 BMS connection on the controller
6 Control panel
6.1 General information
The control panel is delivered connected to the Corrigo control unit situated in the electrical connection box. Cable
length is 10 m. In case the control panel needs to be detached from the signal cable it is possible to loosen the wires on
the back of the control panel (figure 10).
A set of self-adhesive magnet strips are included in the package to facilitate installation on a metal surface.
130324 | A004
