16
| Control panel
6.3 Installation
1. Find an appropriate place to install the control panel. Maximum length between control panel and unit is 100 m.
2. If needed, drill two holes in the wall to hang the control panel (center to center: 60 mm) (pos.1, figure 10).

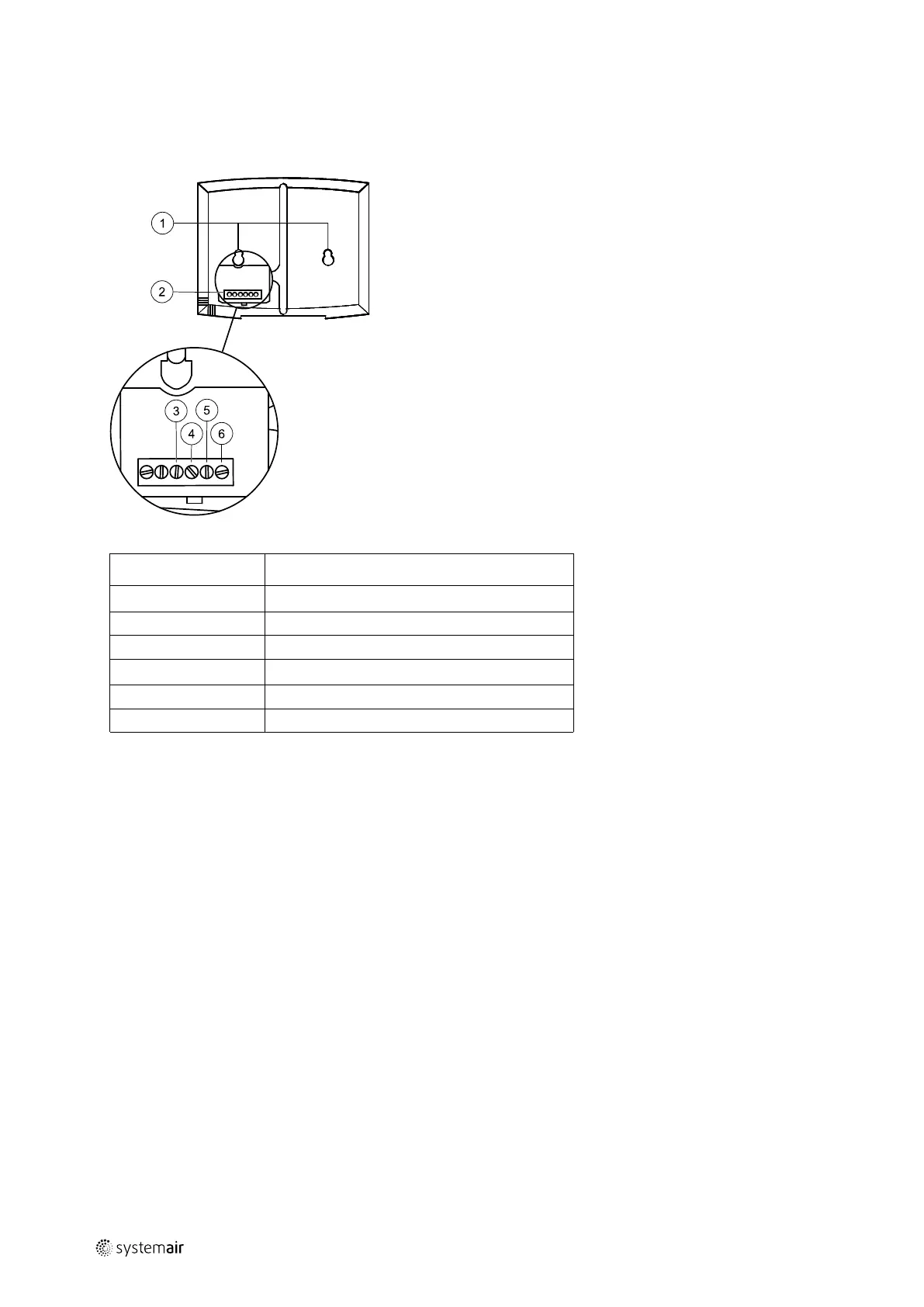

Fig. 10 Control panel wire connections
Position
Description
1
Mounting holes
2
Connection block
3
Connection to brown cable
4
Connection to yellow cable
5
Connection to white cable
6
Connection to black cable
6.4 Additional equipment
For information concerning additional external equipment such as valve actuators, motorized dampers, roof units, wall
grilles etc. see technical catalogue and their enclosed instructions.
For electrical connections of external components see enclosed wiring chart.
130324 | A004
