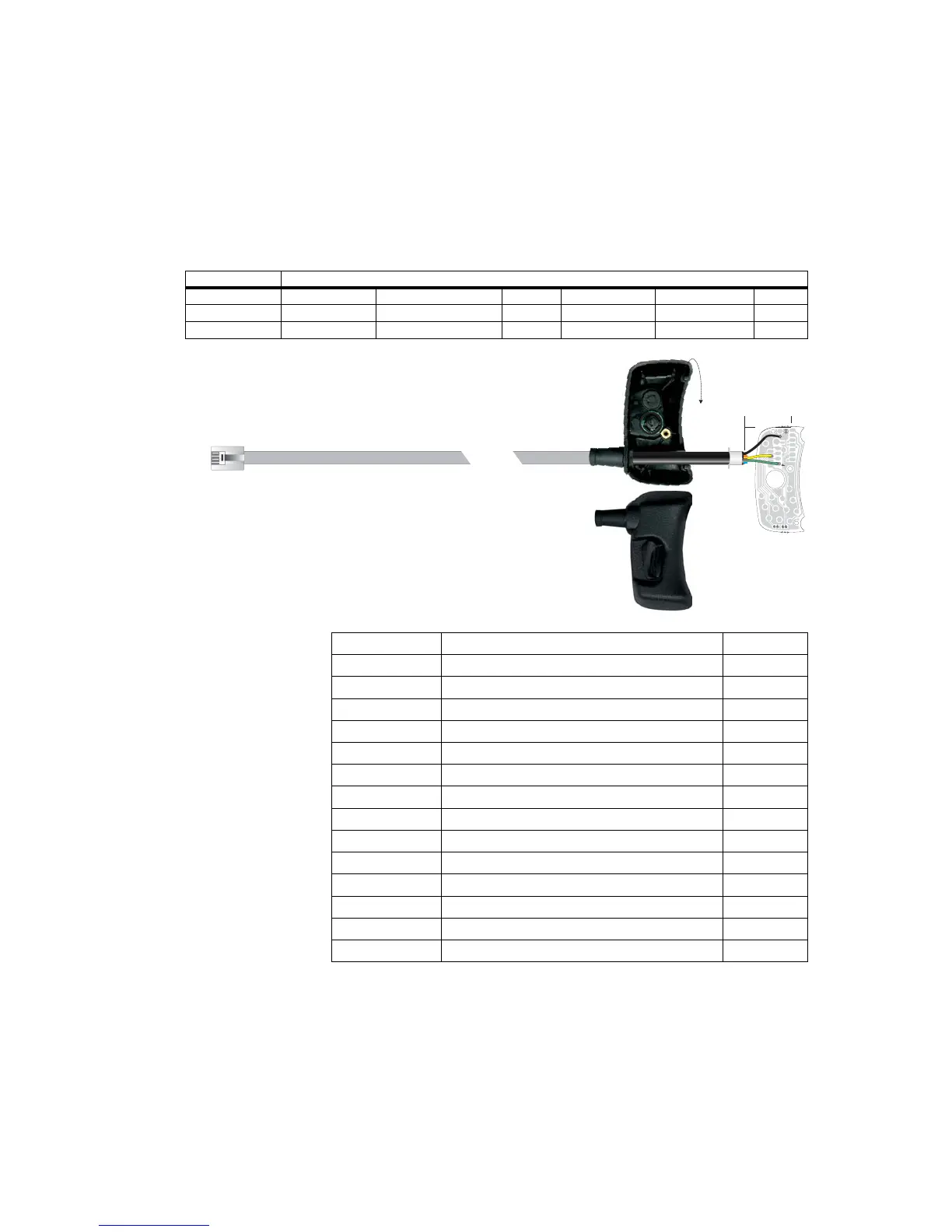

2.7 Programming Cable Specifications
TOP TVS2-Tait Encryption Direct Programming Cable 219-02931-0X
The TOP Encryption Direct Programming Cable can be used with any
Midian module. It connects the TOP radio via its accessory connector, to
the Midian KL3 Programmer.
KL3 RJ11 Function Wire Acc PCB TOP Signal TOP
Tx Data pin 4 Input to Module Green pad 14 Sense 1 pin 7
Rx Data pin 5 Output from Module Yellow pad 13 Sense 0 pin 10
Ground pin 2 Ground Black pad 2 GND pin 1
IPN Description Qty
205-00010-42 CBL oval 6wy std Telecom 1000mm
240-00020-08 PLG 6wy mdl ph oval cbl 1
303-20067-01 Lok Spring D-Clip Release 1
308-01021-00 Hsng Mic ACC H/Stmp Grn TOP5K 1
312-00001-00 Lok Qtr Turn P TOP5K ACC 4grn 1
345-00020-09 Scrw M2*5mm Ss P/T Patch 1
349-00010-24 Scrw 4.20*5/8 P/P Trilobe-P BZ 1
354-01044-00 Bush Psm Shk-B-M2-4.0 Ins 1
356-00022-00 Tip Qtr Turn TOP5k ACC 4grn 1
357-01049-01 Crimp CBL T3K Aux Conn 1
360-02007-00 Grommet 6mm CBL Aux Conn 1
362-01029-00 S eal Generic ACC Conn 4Grn 1
400-00020-05 Sleeving 1.5mm Sil Rubber 40mm
OPA-AA-008G T/Orc Acc Conn Smt Ass Col Arm 1
Grommet 6mm Cable
20mm
14
P13
this end - standard cable supplied with Midian KL3 Programmer
