Midian Encryption Programming and Service Manual Tait Orca Portable (TOP) Encryption 35
June 2006 © Tait Electronics Limited
3.8 Fitting the TOP Encryption Upgrade Flex
Note Extreme care is critical when disassembling the radio, as failure to
disassemble it correctly may damage the seal and shield, resulting
in permanent damage. Disassemble according to the standard pro-
cedures (documented in the TOP Service Manual), using the rec-
ommended tools which are listed on page 9.

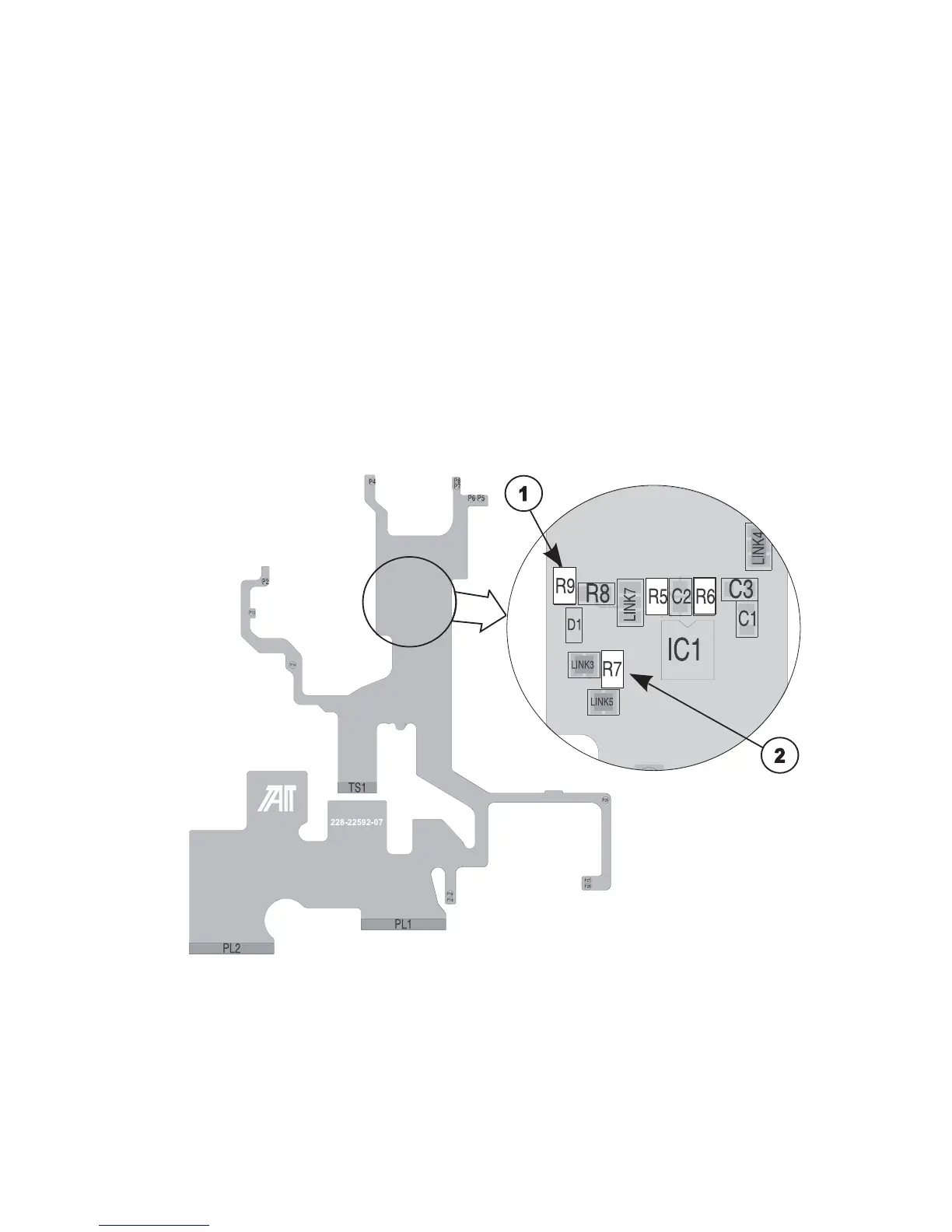

Prepare Flex
1. Locate R9 and remove
2. Locate R7 and fit 0Ohm chip (if not already fitted)
Note When fitting a TVS-2 module, remove components R5 and R6.
To Next Page
