Technical Manual
31. May 2007 Revision: V1.10 4-13
Copyright © 2007, JohnsonDiversey, Inc.
06.0 swingo 450B - technical procedures.fm - 31. May 2007
4.4 Electronical
4.4.1 Electronic board & connections

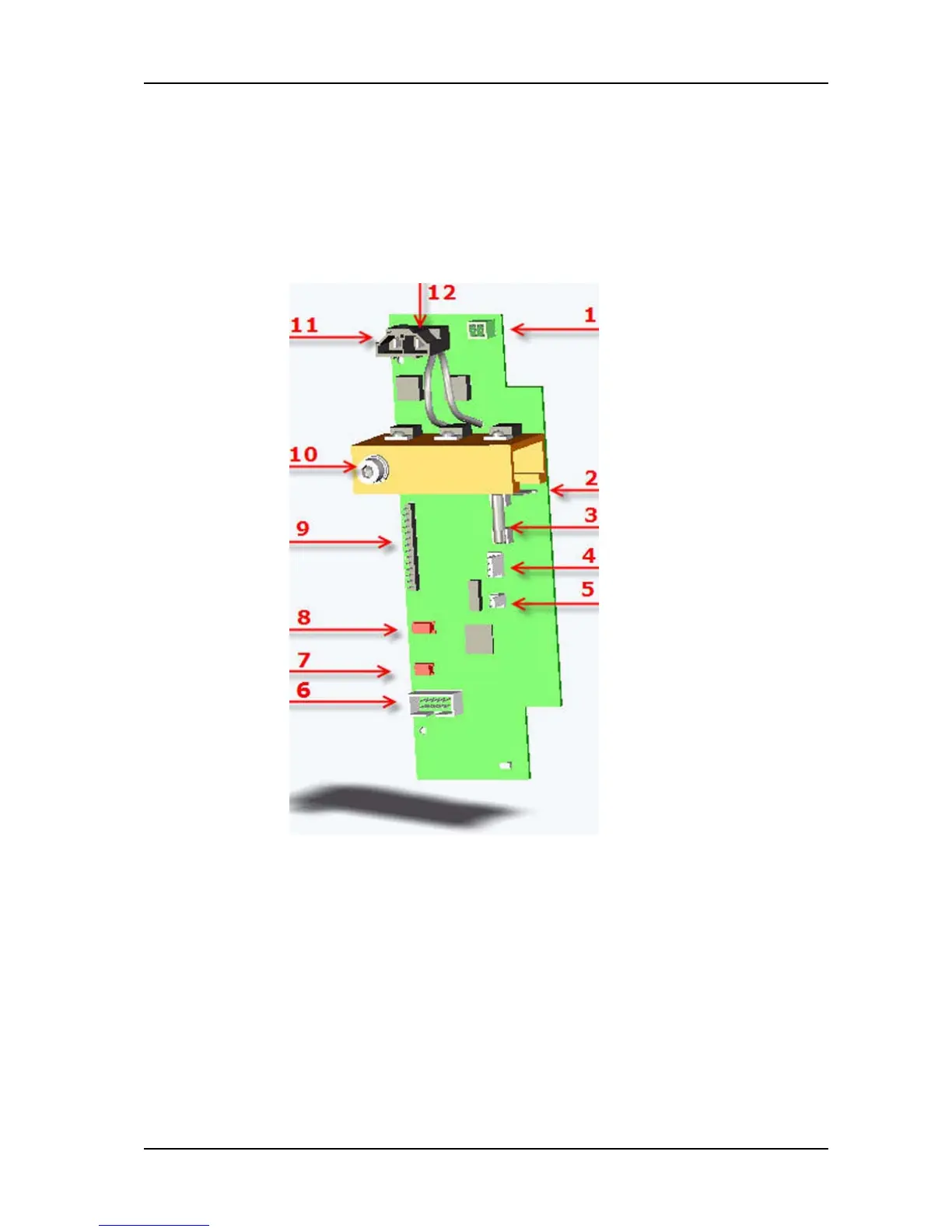

Picture 10: Electronic print connections
1Magnetic valve
2 GND (negative)
3 Fuse 315 mA T
4 ConfigBox/ Software
5 Hours counter (optional)
6 SW update (only at manufacturer)
7 Micro switch
8 Charger communication
9 Control label
10 Power 24V (batteries)
11 Vacuum motor out (positive)
12 Brush motor out (positive)
