Models 702/741/772 Operating Procedures
Section 6 Operating Procedures
The Model 702 has been selected to show you the
pictured step-by-step operating procedures for all
models contained in this manual. These models, for
practical purposes of operation, are the same.
They all store 20 quarts (18.9 liters) of mix in the
hopper. The mix then flows by gravity through a mix
feed tube down into the freezing cylinder .
Locate your model number below to determine the
characteristics of your freezer:
702: (1) 4 quart (3.8 liter) freezing cylinder.
741: (1) 7 quart (6.6 liter) freezing cylinder.
772: (2) 7 quart (6.6 liter) freezing cylinders.
We begin our instructions at the point where we enter
the store in the morning and find the parts
disassembled and laid out to air dry from the previous
night’s cleaning.
The following procedures will show you how to
assemble the parts into the freezer, sanitize them, and
prime the freezer with fresh mix in preparation to serve
your first portion.
If you are disassembling the machine for the first time
or need information to get to this starting point in our
instructions, turn to page 20, “Disassembly” and start
there.
Assembly
MAKE SURE THE CONTROL SWITCH IS
IN THE “OFF” POSITION TO ELIMINATE THE
CHANCE OF MOVING PARTS.
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).

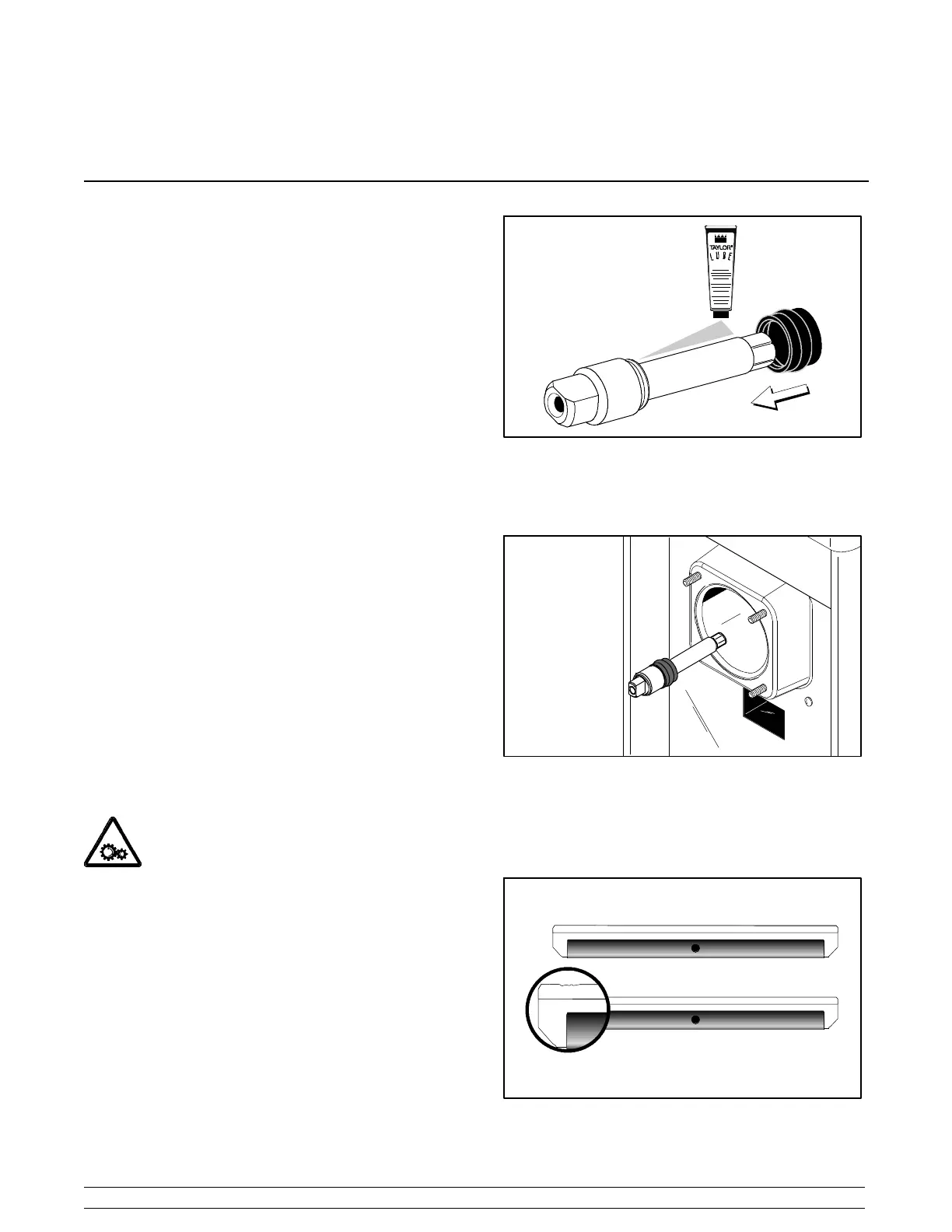

Step 1
Install the drive shaft. Lubricate the groove and shaft
portion that comes in contact with the bearing on the
beater drive shaft. Slide the seal over the shaft and
groove until it fits into place. DO NOT lubricate the hex
end of the drive shaft. Fill the inside portion of the seal
with 1/4” more lubricant and evenly lubricate the flat
side of the seal that comes in contact with the bearing.
Figure 5
Insert the drive shaft through the rear shell bearing in
the freezing cylinder and engage the hex end firmly
into the gear box coupling.
Figure 6
Step 2
Install the beater assembly. First check the scraper
blade(s) for any nicks or signs of wear . If any nicks are
present, replace the blade(s).
Figure 7
