4-6
OPERATOR PARTS IDENTIFICATION
Models C709 & C717
Operator Parts Identification
4

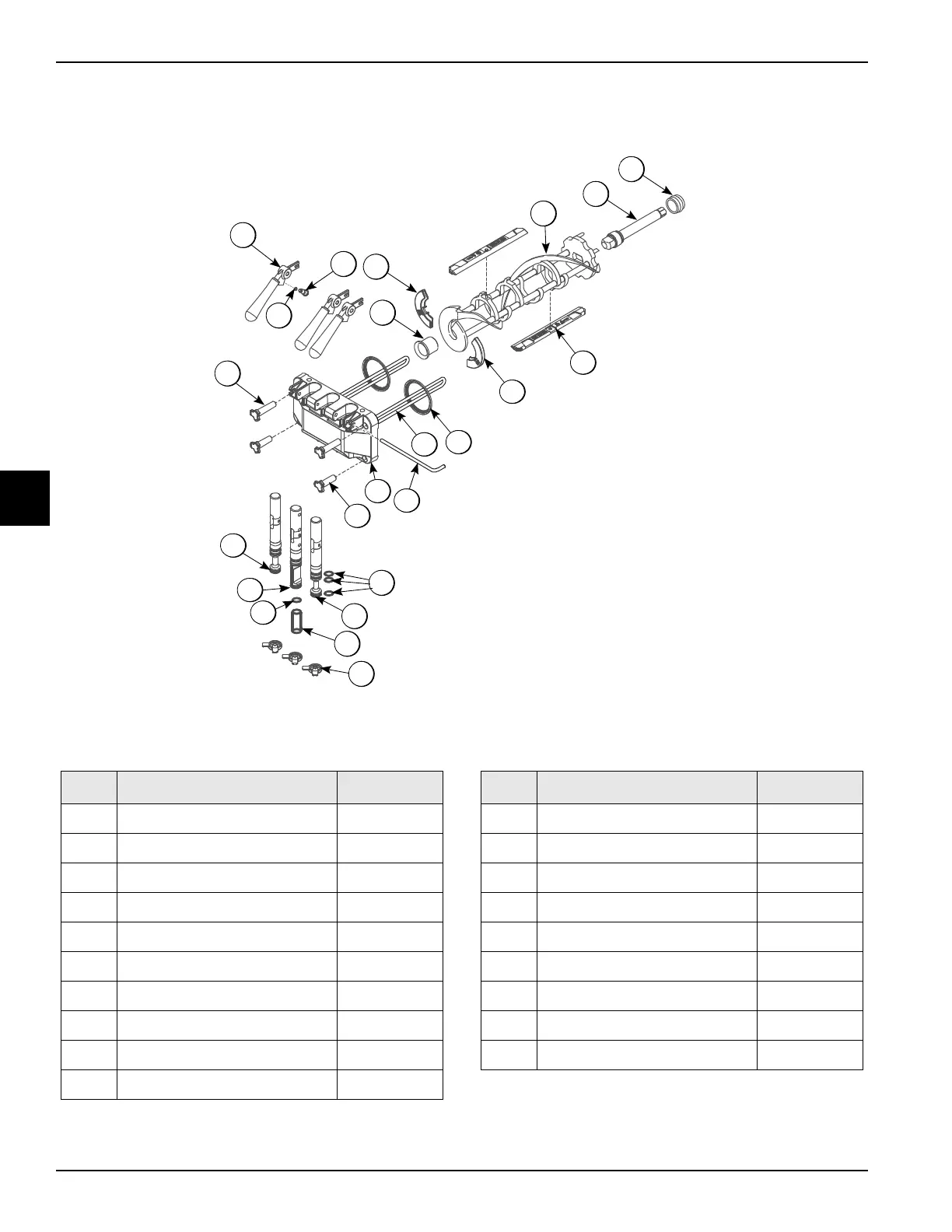

Model C717 Three-Spout Door and Beater Assembly
Figure 4-4
9
15
2
4
5
8
7
10
5
11
14
13
17
18
3
6
5
12
16
13
14
1
1a
Item Description Part No.
1 Door A.-*LG BAF*W/O PRG* X59923-SER
1a Baffle A.-Long 4 IN W/RAD X50882
2 Handle A.-Draw-Push X82875
3 O-ring-1/4 OD x .070W 50 015872
4 Screw-Adjustment-5/16-24 056332-SP
5 Kit A.-Beater-Front Shoes-Bearing X50350
6 Beater A.-3.4QT-1 Pin X46231
7 Shaft-Beater 032564
8 Seal-Drive Shaft 032560
9 Blade-Scraper-Plastic 084350
Item Description Part No.
10 Gasket-Door HT 4"-Double 048926
11 Pin-Handle-Twin 059894
12 Nut-Stud Black 2.563 Short 058764
13 O-ring-7/8 OD x .103W 014402
14 Valve A.-Draw-Left & RT X59888
15 Seal-Draw Valve 034698
16 Valve A.-Draw-Center X59890
17 Nut-Stud Black 3.250 Long 058765
18 Cap-Design 1.010” ID 6 PT 014218
