6-6
OPERATING PROCEDURES
Models C709 & C717
Operating Procedures
6

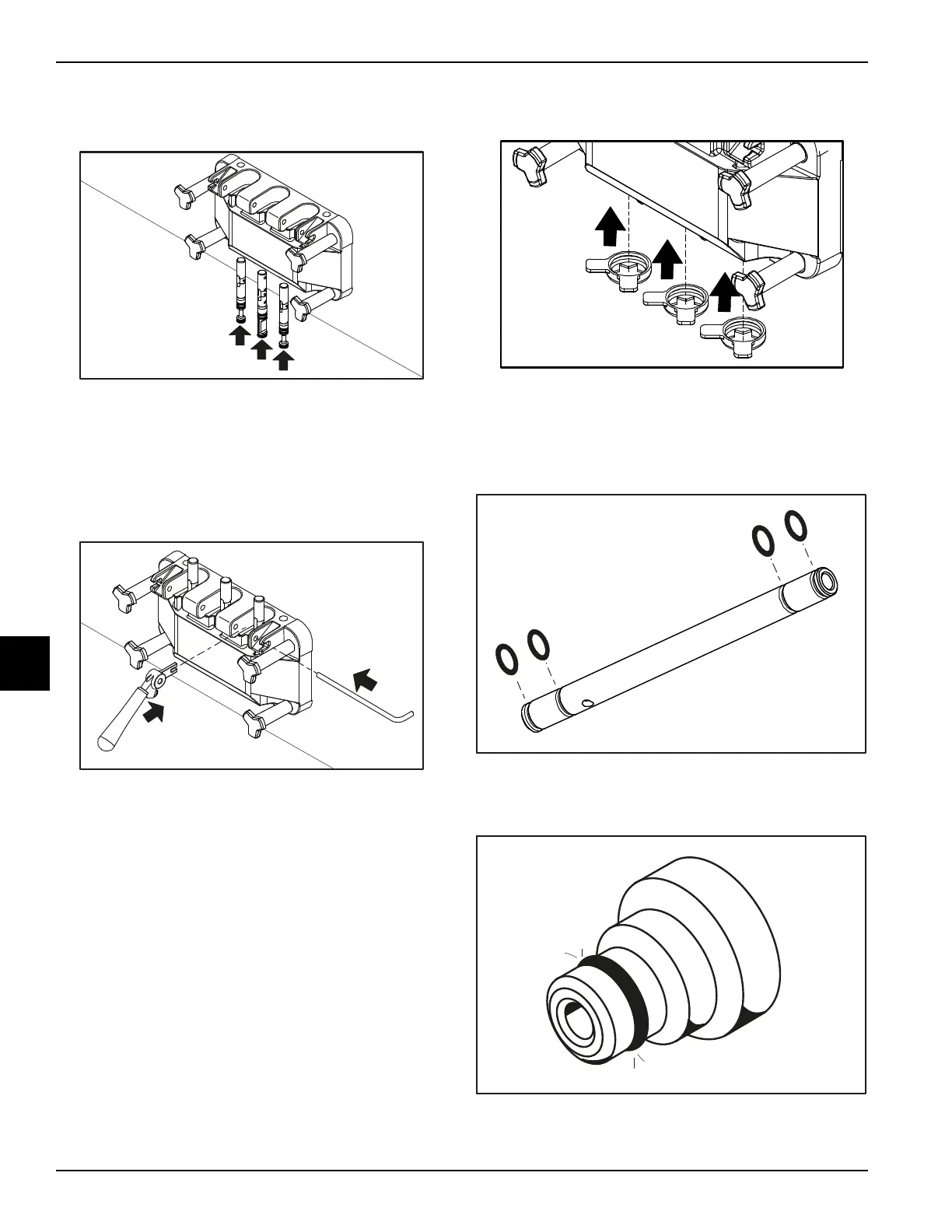

7. Insert the draw valves from the bottom until the slot in
each draw valve comes into view.
Figure 6-23
8. Position each draw handle with the adjustment screw
facing down. Slide the fork of each draw handle into
the slot of each draw valve, starting from the right.
9. Slide the pivot pin through the draw handles as the
handles are inserted into the draw valves.
Figure 6-24
Note: This freezer features adjustable draw handles
to provide portion control, giving a better consistent
quality to your product and controlling costs. The
draw handles should be adjusted to provide a flow
rate of 5 oz. to 7-1/2 oz. (142 g to 213 g) of product
by weight per 10 seconds.
To increase the flow rate, turn the adjustment screw
clockwise. To decrease the flow rate, turn the
adjustment screw counterclockwise.
10. Snap the design caps over the bottom of the door
spouts.
Figure 6-25
Feed Tube Assembly
1. Slide two O-rings on one end of the feed tube. Slide
two O-rings on the other end of the feed tube.
Figure 6-26
2. Slide the small O-ring into the groove of the air
orifice. Do not lubricate the O-ring.
Figure 6-27
