OPERATOR PARTS IDENTIFICATION
Model C723
Operator Parts Identification
4
Optional Carts

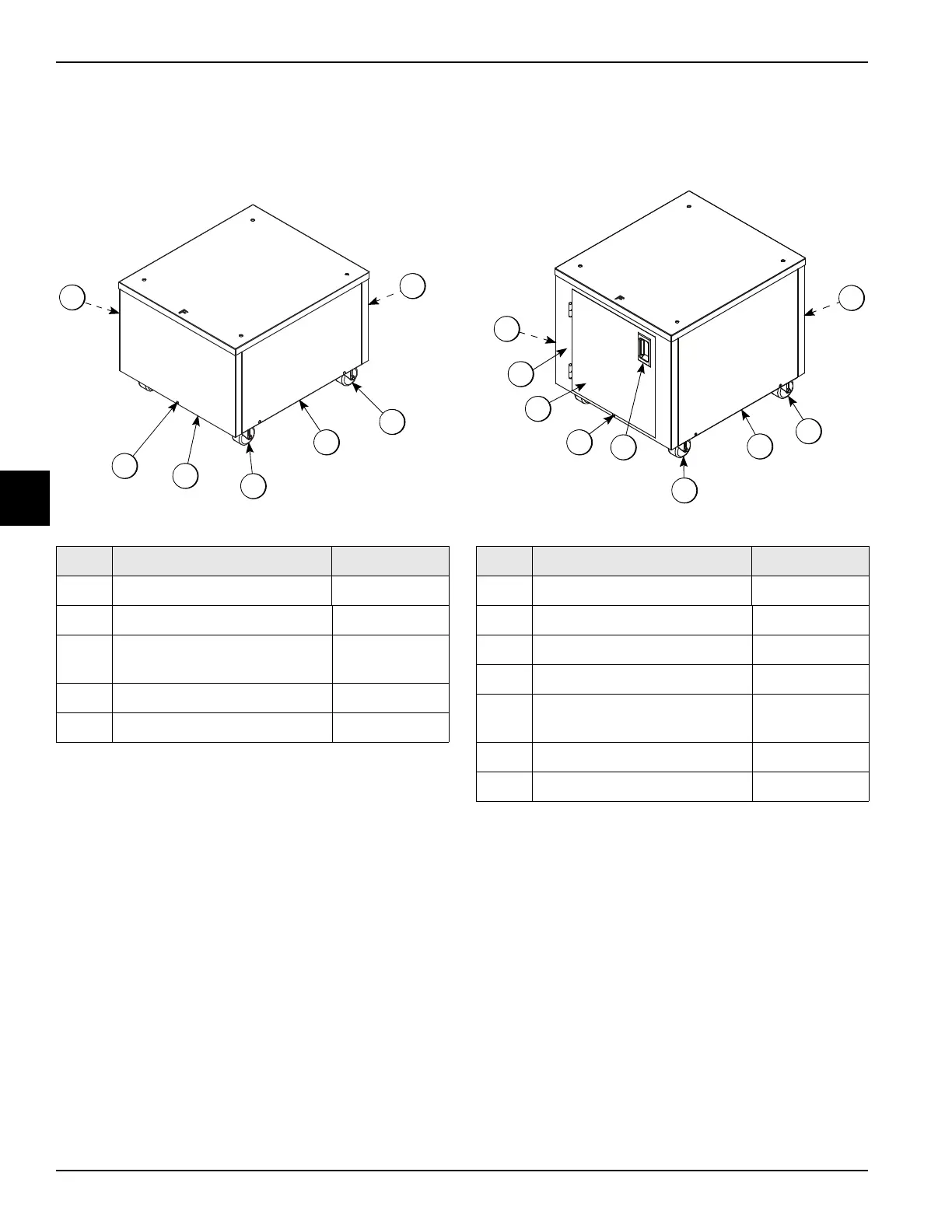

Figure 4-4
Note: ADA-compliant height cart, not equipped with a door.
Note: Standard height cart with reversible front door panel
and rear panel.
1
2
3
4
5
2
4
6
1
2
3
4
5
6
5
7
Cart A.-ADA (X69400)
Cart A.-Std (X69425)
Item Description Part No.
1 Screw-10-32X1/2 SLTD Truss 037734
2 Panel-Front/Rear-ADA 069402
3 Caster-3" SWV 3/4-10 Stem
w/Brake
030307
4 Panel-Side-Cart 069403
5 Caster-3" SWV 3/4-10 Stem 021279
Item Description Part No.
1 Panel A.-STD Cart-Front X69426
2 Door A.-STD Cart X69295
3 Screw-10-32X1/2 SLTD Truss 037734
4 Handle-STNLS Flush Pull 019043
5 Caster-3" SWV 3/4-10 Stem
w/Brake
030307
6 Panel-Side-STD Cart 069428
7 Panel-Rear-STD Cart 069429
