Taylor C723 User Manual

USER INTERFACE
5-5
Model C723
User Interface
5
Adjustable Draw Handle
This machine features an adjustable draw handle to
provide the best portion control, giving a better,
consistent quality to your product and controlling costs.
The draw handle should be adjusted to provide a flow
rate of 5 oz. to 7-1/2 oz. (148 ml to 222 ml) of product by
weight per 10 seconds. To increase the flow rate, tighten
the screw. To decrease the flow rate, loosen the screw.

(See Figure 5-7.)

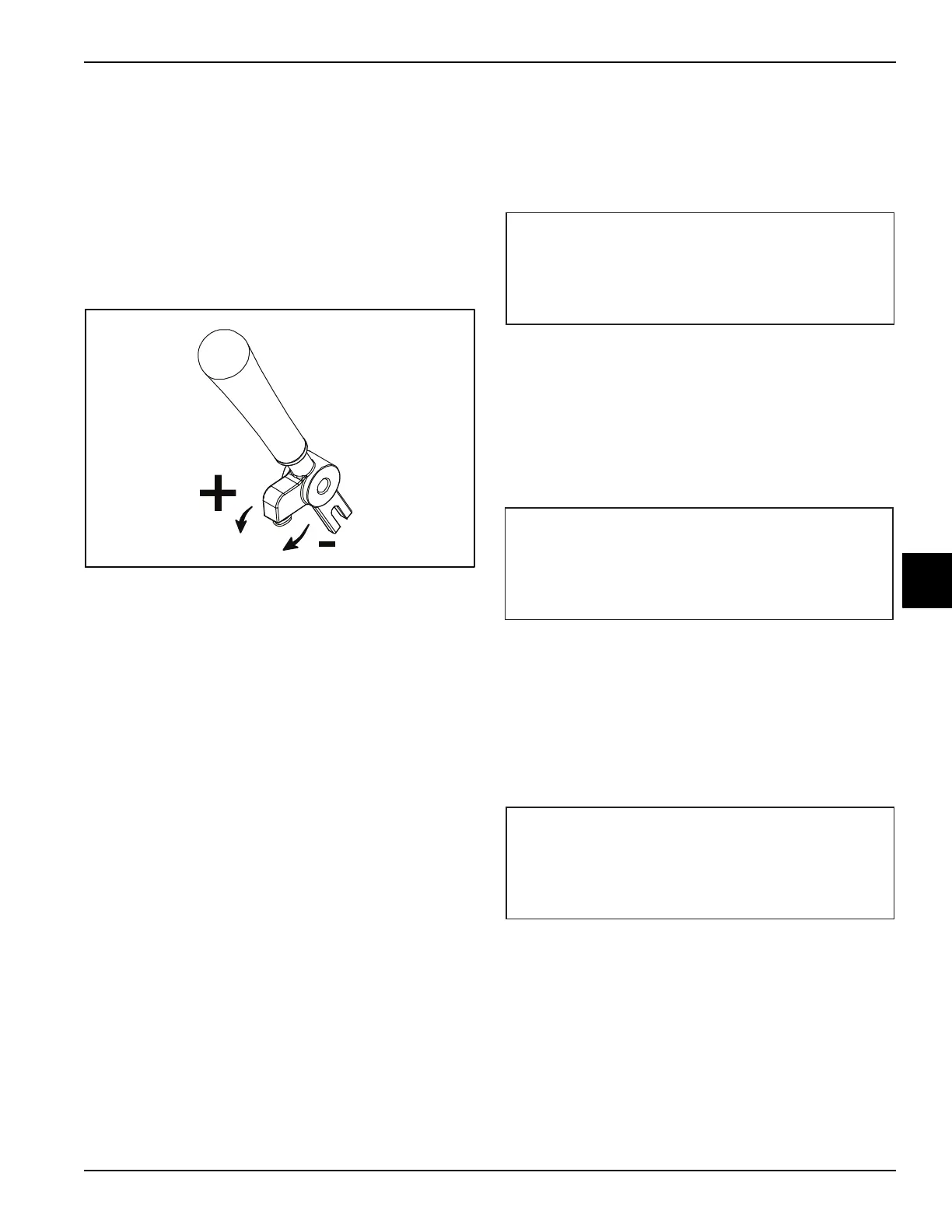

Figure 5-7
Operating Screen Descriptions
The fluorescent display located in the center of the
control panel is normally blank during the daily operation
of the machine. The display is activated when the SEL
symbol or the Manager's Menu is selected. The display
screen will also alert the operator of specific faults
detected by the control.
Power Up
When the machine is powered, the control system will
initialize to perform a system check. The screen will
display “Initializing.” There are four types of data the
system will check: Language, System Data, Config Data,
and Lockout Data.
If the system detects corrupt data during “Initializing,” the
detected faults will be displayed for acknowledgment
after the SAFETY TIMEOUT display if the power switch
is on. The faults may be corrupted language, config crc
err, system crc err, fault history, lockout crc err, or power
failure.
Once the system has initialized, the number of days
remaining before the next required brush-cleaning is
indicated on the control panel, and the Safety Timeout
screen is displayed with the alarm turned on. (
See
Figure 5-8.)
Figure 5-8
The SAFETY TIMEOUT screen will be displayed with the
alarm on for 60 seconds, or until any control symbol is
selected.
After the Safety Timeout has been completed and the
power switch is OFF, the following screen is displayed.
(
See Figure 5-9.)
Figure 5-9
Power Switch ON
When the power switch is placed in the ON position, the
control panel press keys become operative. The
fluorescent display will be either blank or will indicate that
the machine has been cleaned. (
See Figure 5-10.)
Figure 5-10
Brush-Clean Counter
The Brush-Clean Counter (item 9 on page 5-1) will
display the number of hours since the freezer was last
brush-cleaned. After hour 99, it will change to a letter and
a number (example: A0, A1, B0, B1, etc.).
101187
SAFETY TIMEOUT
ANY KEY ABORTS
POWER SWITCH OFF
- = - = - = - = - = -
UNIT CLEANED
UNIT CLEANED
