Connections
55.. GGuuiittaarr IInn aanndd TThhrruu -
Plug a 1/4” cable directly from your guitar into
the high Z (impedance) In jack. If you use effect pedals, they should be
connected after VoiceLive Touch. Plug a 1/4” cable from the Thru jack to
your first effect pedal or to your amplifier/PA. If you leave the Thru
unconnected, the guitar sound will be mixed into the main output of
VoiceLive Touch.
66.. AAuuxx IInn JJaacckk -
Mixes audio from an external stereo device such as an
MP3 player into the main mix. No effects are applied to this input.
77.. MMIIDDII IInnppuutt -
Connect the MIDI Out from a keyboard, audio
workstation or MIDI sequencer to control harmony and select presets.
88.. PPoowweerr A
Addaappttoorr IInnppuutt -
Connect the factory-supplied adaptor here.
Applying power automatically turns on VoiceLive Touch as there is no
power switch.
99.. UUSSBB CCoonnnneeccttoorr -
Used for connecting VoiceLive Touch to a computer
for version updates and MIDI communication. Note that the USB
connection does not provide power for the unit.
1100.. FFoooottsswwiittcchh IInnppuutt -
Allows connection of a TC-Helicon Switch 3
footswitch.This footswitch can be set to control several useful functions
in the Setup menu. Requires a 3 conductor (TRS) cable.
1111.. HHeeaaddpphhoonnee OOuut
tppuutt aanndd LLeevveell CCoonnttrrooll -
Connects to standard 1/8”
stereo headphones.
1122.. IInnppuutt LLeevveell CCoonnttrrooll -
Turn clockwise while singing to set input level.
The green LED on the front panel should flash but the Clip LED should
not light on your loudest singing.
11.. MMiicc IInnppuutt -
Balanced, low impedance XLR input for your mic.
22.. XXLLRR OOuuttppuutt -
Can produce a mono output when Output is
configured for mono in the Setup menu.
33.. GGuuiittaarr GGrroouunndd LLiifftt -
Press this to assist with hum reduction.
44.. 11//44”” TTRRSS OOuut
tppuuttss -
These produce the main output. They can be
configured for Mono, Dual Mono or Stereo output in the Setup menu.

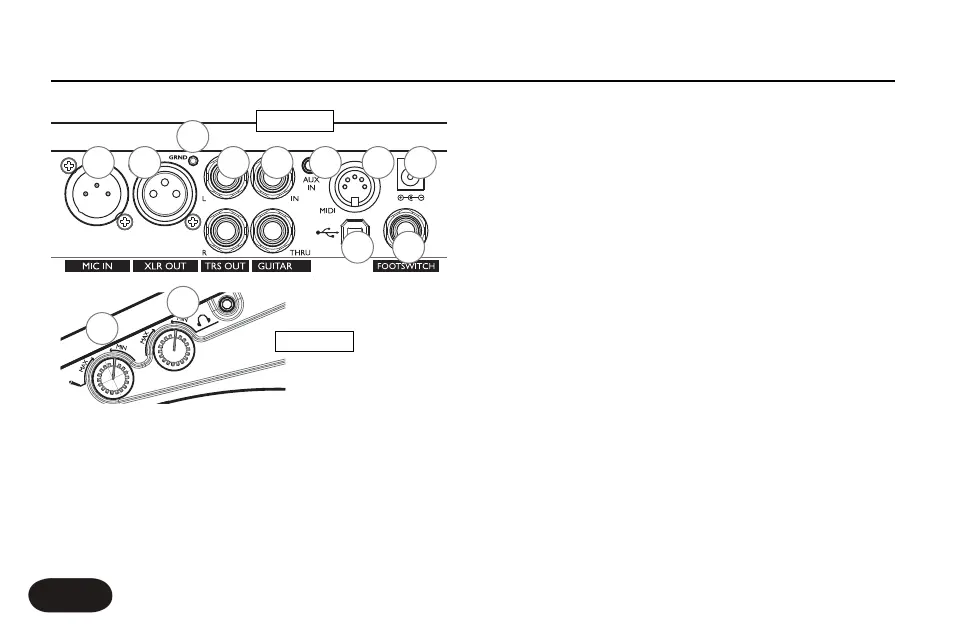

Side View
Rear View
1 2
3
4 5 6 7 8
9
10
11
12
