12

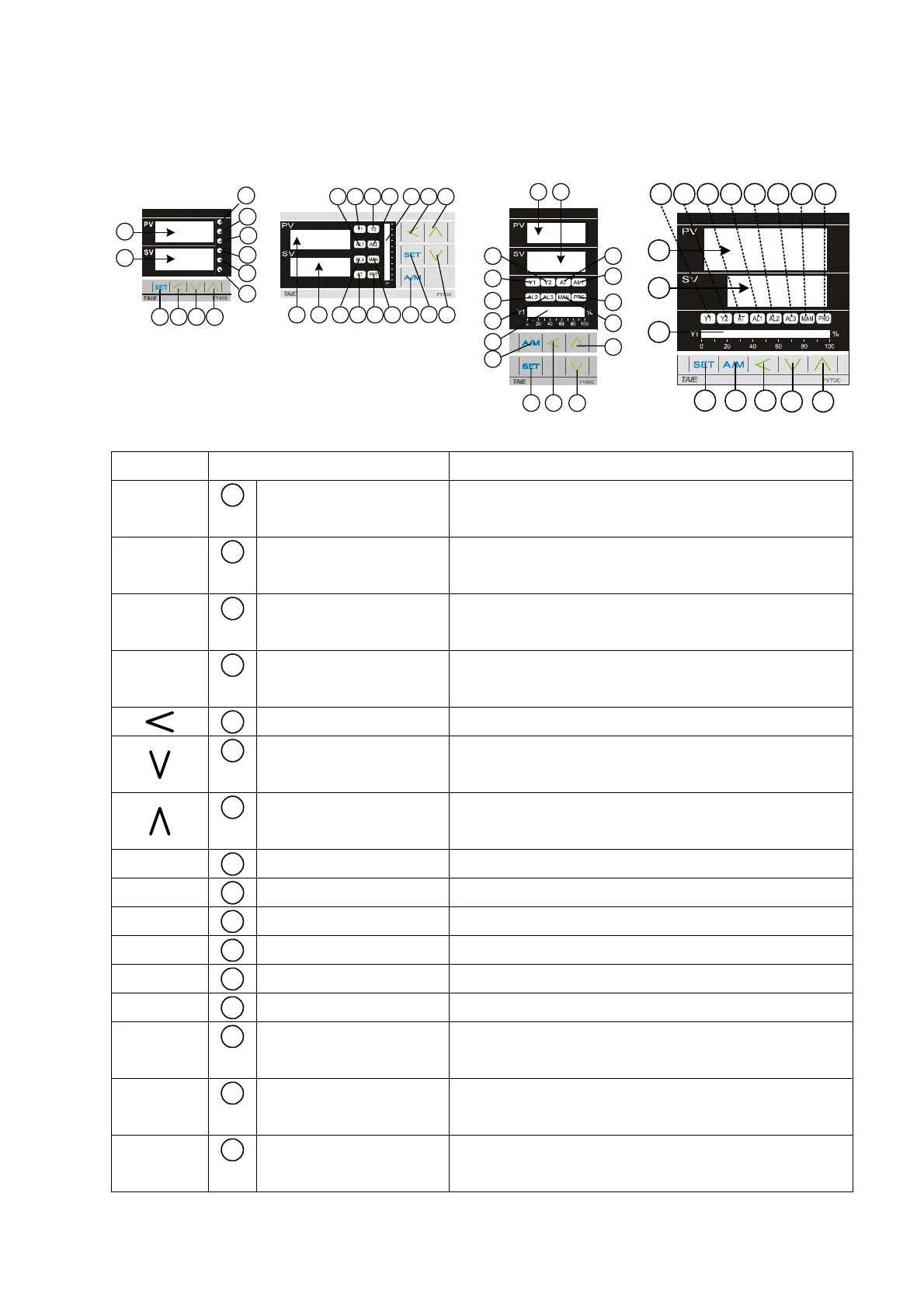

5. Parts description
uTC52
Y1
Y2
AT
AL
AL
PRO
1
2
1
2
3 5 6
7
10
11
12
15
9
8
uTC62
1 2
13 10 15 14
11 8 9 12 16 5
7
4 3 6
uTC42
1 2
9
8
12
4
3 5 6
7
13
16
14
15
11
10
uTC72 / uTC92
1
2
16
3 4 5
6 7
8 9
10 11 12 13 14 15
SYMBOL NAME FUNCTION
PV
1
Measured value
(PV) display
Displays PV or various parameter symbols
(Red)
SV
2
Set value
(SV) display
Displays SV or various parameter set values
(Green)
SET
3
Set key Used for parameter calling up and set value
registration
A/M
4
Auto/Manual key Switches between Auto(PID) output mode and
Manual output mode.
5
Shift key Shift digits when settings are changed
6
Down key
*Program hold
Decrease numbers (-1000,-100,-10,-1)
* Program hold
Programmable controller
7
Up key
*Program run
Decrease numbers (+1000,+100,+10,+1)
* Program run
Programmable controller
OUT1
8
OUT1 lamp Lights when OUT1 is activated (Green)
OUT2
9
OUT2 lamp
Lights when OUT2 is activated (Green)
AT
10
Auto tuning lamp Lights when Auto tuning is activated (Orange)
AL1
11
Alarm 1 lamp Lights when Alarm 1 is activated (Red)
AL2
12
Alarm 2 lamp Lights when Alarm 2 is activated (Red)
AL3
13
Alarm 3 lamp Lights when Alarm 3 is activated (Red)
MAN
14
Manual output lamp Lights when manual output is activated
(Orange)
PRO
15
*Program running
lamp
*Flashes when program is running
Programmable controller
OUT1%
16
OUT% bar-graph
display
Output% is displayed on 10-dot LED.
