Teagle Tomahawk 808S User Manual

15
SECTION 6. CONTROL BOX FUNCTIONS
6.1 INSTRUCTIONS FOR USE
The Functions of the controls are indicated in Figure 6.1 below
6.2 BED CHAIN/FORWARD REVERSE
(Raised Button Model - Small Domed Buttons)
The bed chain can be operated in the forward direction by pressing the forward button on the box. In order to
reverse the bed chain once in the forward direction, press and hold the reverse button, once released the bed
chain will automatically default to forward. To stop the bed chain press the forward button.
(Raised Button Model - Large Flat Buttons DL1115)
The bed chain can be operated in the forward direction by pressing the forward button on the box. To reverse
the bed chain press and hold the reverse button while the bed chain is at rest or operating in the forward
direction. Once the reverse button is released the bed chain will return to rest. The bed chain can be stopped
from moving in the forward direction by pressing either of the two directional buttons.
6.3 OVERLOAD PROTECTION
Along with the in-line fuse (7.5 amp), the electronic controls also have a built-in overload (short circuit)
protector. When the fuse fails the red LED on the fuse holder will illuminate. When the protection device
activates due to an overload, the control box will not operate and the LED will flash. In order to reset the
device, the control box must be turned off and then turned back on again. If the control box will not turn back
on then there is a permanent short circuit present. In this case the when the control box is switched on the
green light on the box will turn on briefly and then go off. The short circuit will have to be detected and rectified
before the control box will operate correctly.

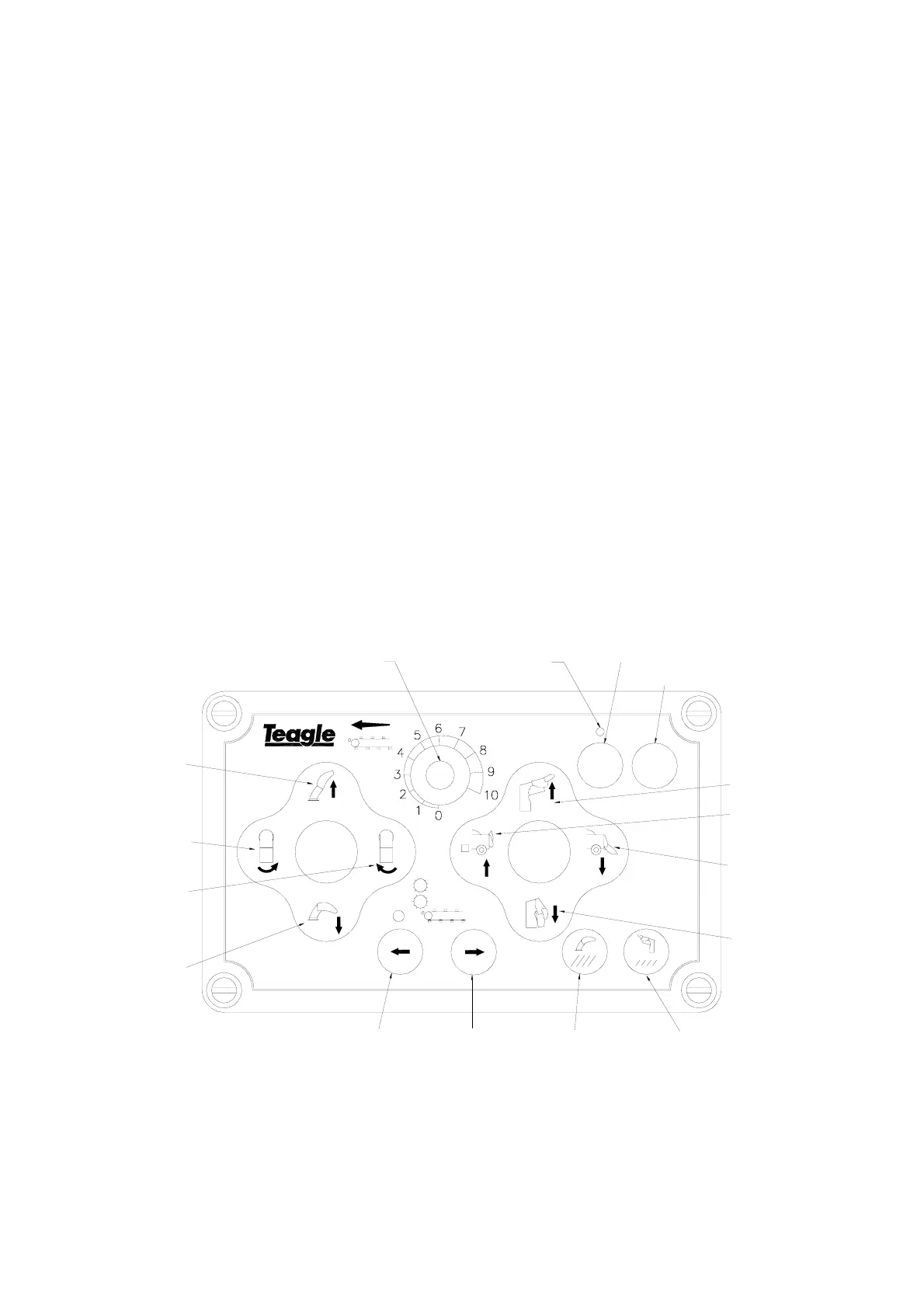

Figure 6.1 Control Functions
DL1115
ON
OFF
Bed Chain Speed Power On Light
Raise Standard
Chute
Raise Tailgate
Lower Tailgate
Lower Standard
Chute
Select Standard
Chute/Lower Knives
Select Giraffe
Chute/Raise Knives
Power On
Power Off
Bed Chain
Reverse
Bed Chain
Forward
Lower Giraffe
Chute
Raise Giraffe
Chute
Rotate Giraffe
Clockwise
Rotate Giraffe
Anti-clockwise
