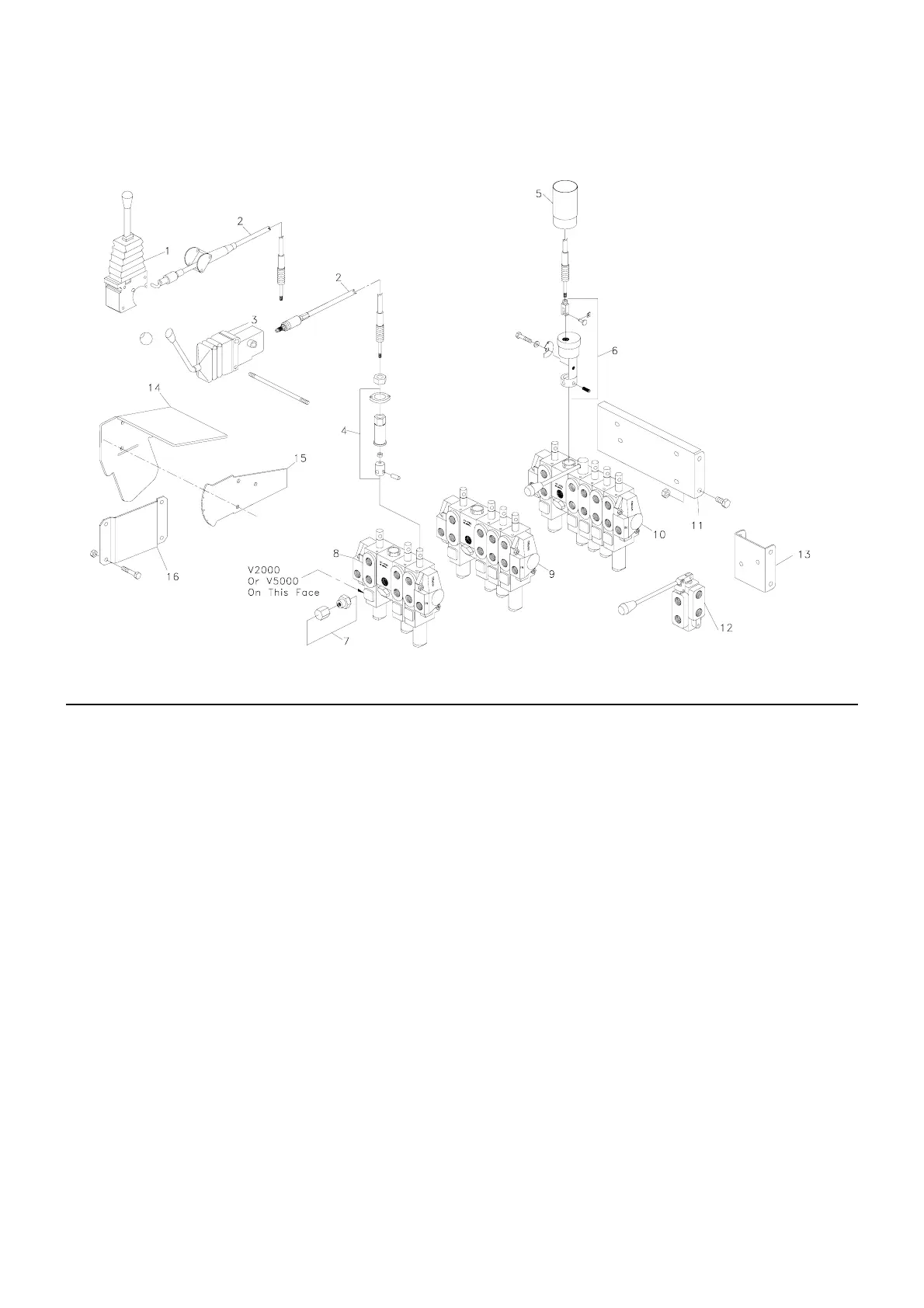

3.1 CABLE CONTROLS

Ref Description TMC Black RDB Red RH Chute Swivel Chute Twin Chute

Valve complete items 1 to 8 HYD5060 HYD5060 1 -- --

Valve complete items 1 to 7 & 9 HYD5067 HYD5067 -- 1 --

Valve complete items 1 to 7 & 10 HYD5084 HYD5084 -- -- 1

Cable complete c/w actuator & valve HYD5073 HYD5180 3 4 4

adapter kit items 1, 2 & 4.

Cable complete c/w actuator & flow HYD5074 HYD5181 1 1 1

Control adapter kit 1, 2, 5 & 6.

1 Actuator – standard HYD5065 - - - - - - - 3 4 4

Actuator - TMC Flow control HYD5066 - - - - - - - 1 1 1

2 Cable 3.5 meters long HYD5076 HYD5185 4 5 5

3 Actuator – RDB - - - - - - - HYD5184 4 5 5

Bent Handle - - - - - - - HYD5182 4 5 5

Plain nut M10 - - - - - - - FAS2303 4 5 5

Standard knob HYD5176 HYD5166 3 4 4

Round +/- knob HYD5165 HYD5165 1 1 1

Actuator boot - - - - - - - HYD5183 4 5 5

4 Adapter kit – valve end HYD5079 HYD5186 3 4 4

5 Rubber sleeve HYD5068 HYD5068 1 1 1

6 Adapter kit – flow control end HYD5069 HYD5069 1 1 1

7 Relief valve kit – valve block HYD5070 HYD5070 1 1 1

SECTION 3. CABLE VALVE PARTS LIST
