➢ Tuner Count – Displays the licensed number of tuners for each COM51. The first number
represents the licensed tuner count, the second is the number of available SWiM channels.
➢ Features – This field displays the licensed operational features for each card.
o HD - Streamout - The basic license configuration of all COM51 cards.
o MT – Mediatune
o IP - Licenses card for IP output in the absence of a QAM20
o Transcode – N/A
o Clear HD - Allows HD programming to be output in clear QAM (requires AT&T / DIRECTV
authorization)
o NTSC-8 – COM51 card is connected to a Technicolor NTSC-8 modulator.
o Monitored – COM3000 is connected to a REST server monitoring the health of the
system
29 HealthInfo
By clicking the HealthInfo hyperlink at the top of any COM3000 web interface page, you will
access the page shown below in Figure 50. The data available here gives you an indication of the
overall health of the COM3000 system and can be used to identify potential problem areas at a
glance.

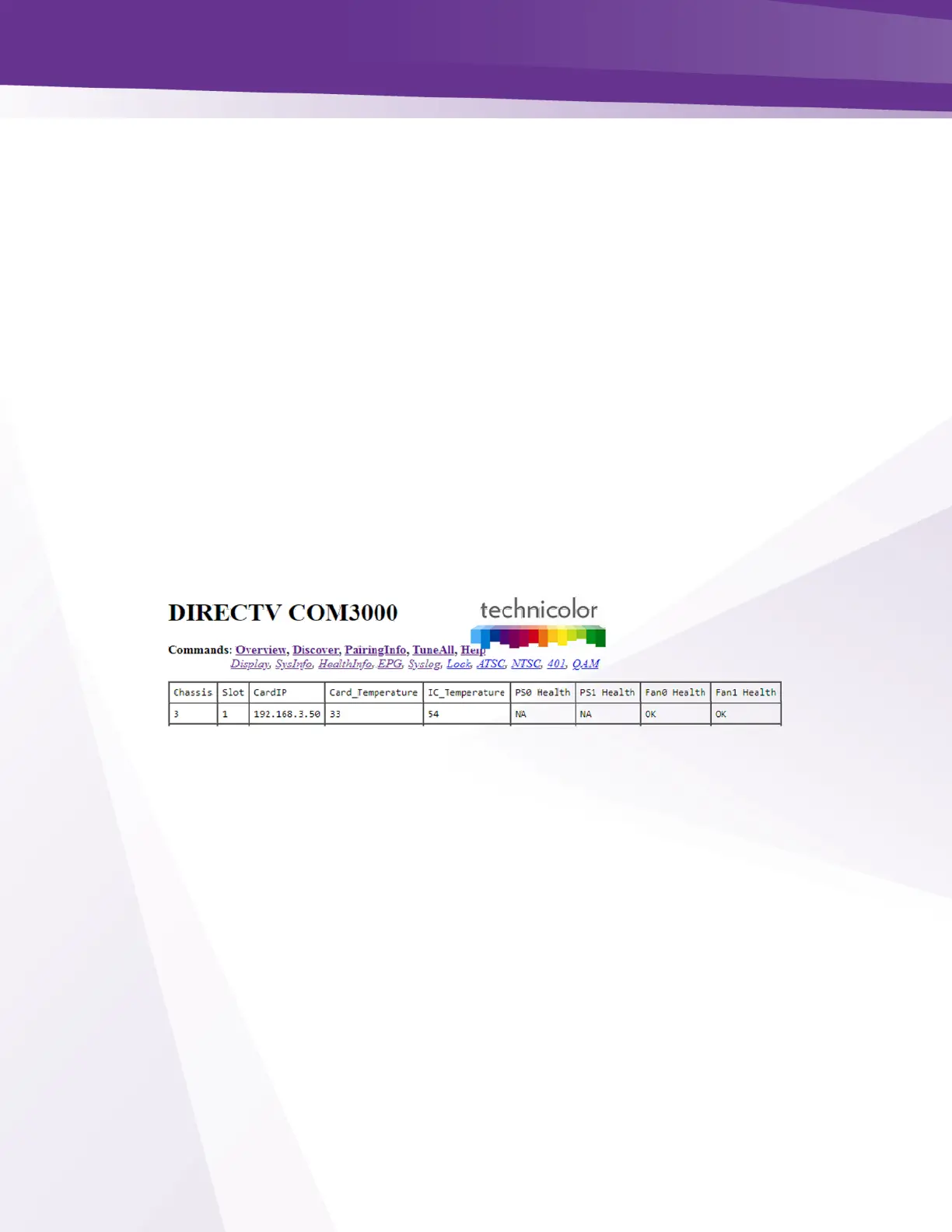

Figure 50 - COM3000 Health Info Page
Following is a detailed list of the information available on the HealthInfo page.
➢ Chassis – This field reports a unique identifier for the chassis. In systems that contain multiple
chassis, this can be used to identify each card in the system.
➢ Slot – This field identifies the card’s location within a chassis.
➢ CardIP – This field shows the IP address of the COM51 card that resides in the chassis and slot
combination to its left.
➢ Card_Temperature – Reports internal temperature
➢ IC_Temperature – This field reports the internal temperature of the main processor chip on the
COM51 card. An elevated temperature here and nowhere else could mean that this chip is
defective.
➢ PS 0 & 1 Health – Deprecated. These fields will always report N/A in a COM51.
➢ Fan0 Health – This field reports the health for Fan 0. If the fan is connected and operating
properly, the value should return “OK”. If there is a problem the value will return “Fault”.
To Next Page
