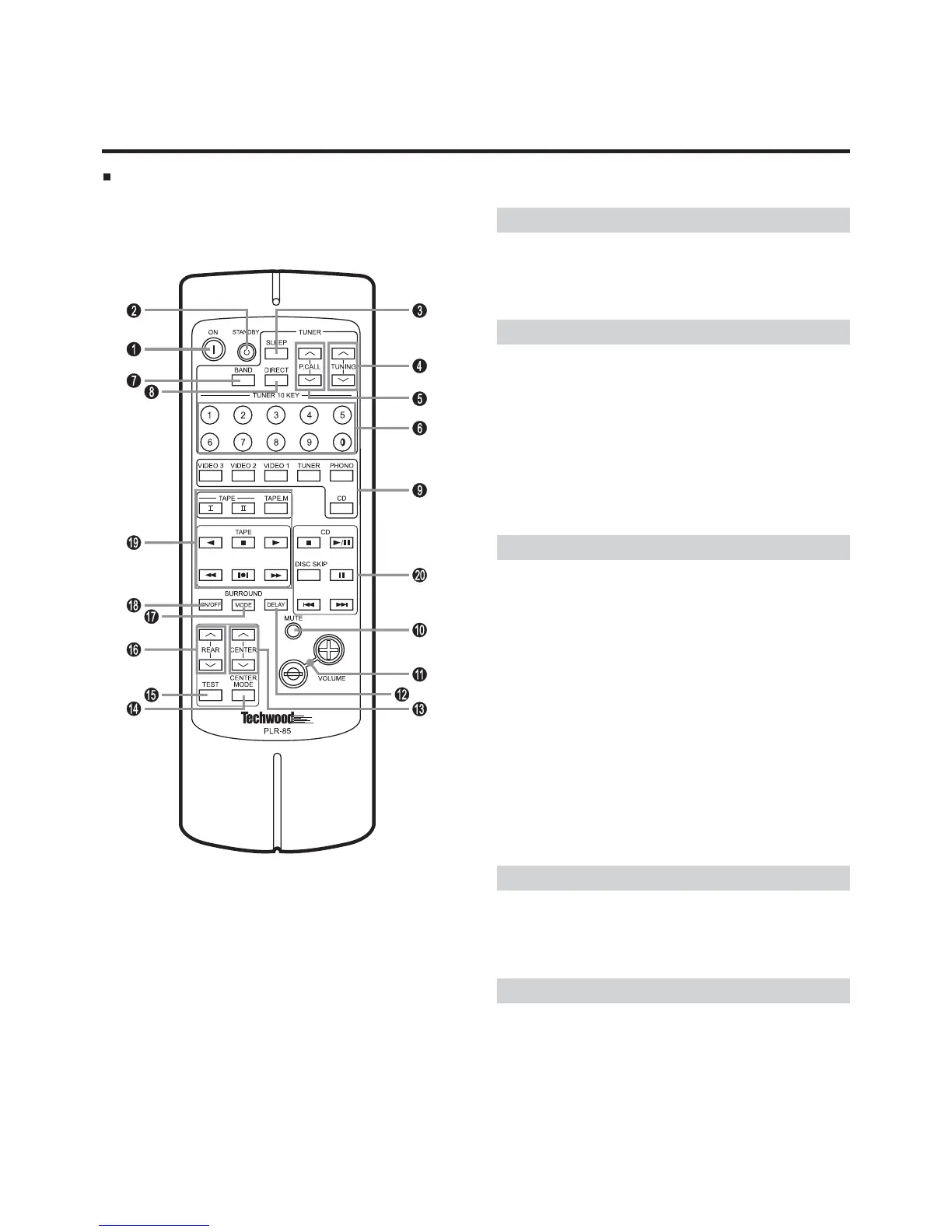

1. POWER ON button
2. POWER STANDBY button
3. SLEEP button
4. TUNING UP/DOWN buttons
5. P.CALL UP/DOWN buttons
6. NUMERIC keys
7. BAND selector button
8. DIRECT TUNING button
9. INPUT SOURCE Selector buttons
10. MUTING button
11. MASTER VOLUME CONTROL
(Volume up/down buttons)
12. DELAY TIME button
13. CENTER LEVEL buttons
14. CENTER MODE button
15. TEST TONE button
16. REAR LEVEL buttons
17. SURROUND MODE button
18. SURROUND ON/OFF button
19. TAPE DECK Operation buttons
(For use with optional matched tape deck TDX-85).
20. CD Player Operation buttons
(For use with matched compact disc changer CDC-85).
12
Remote Control Unit
POWER SELECTION
TUNER SECTION
AMP SECTION
DECK SECTION
CD SECTION
Certain buttons on the remote control unit and on the front
panel of the receiver have the same or similar functions and
have the same reference numbers.
