VIDEO 3 INPUT Jacks

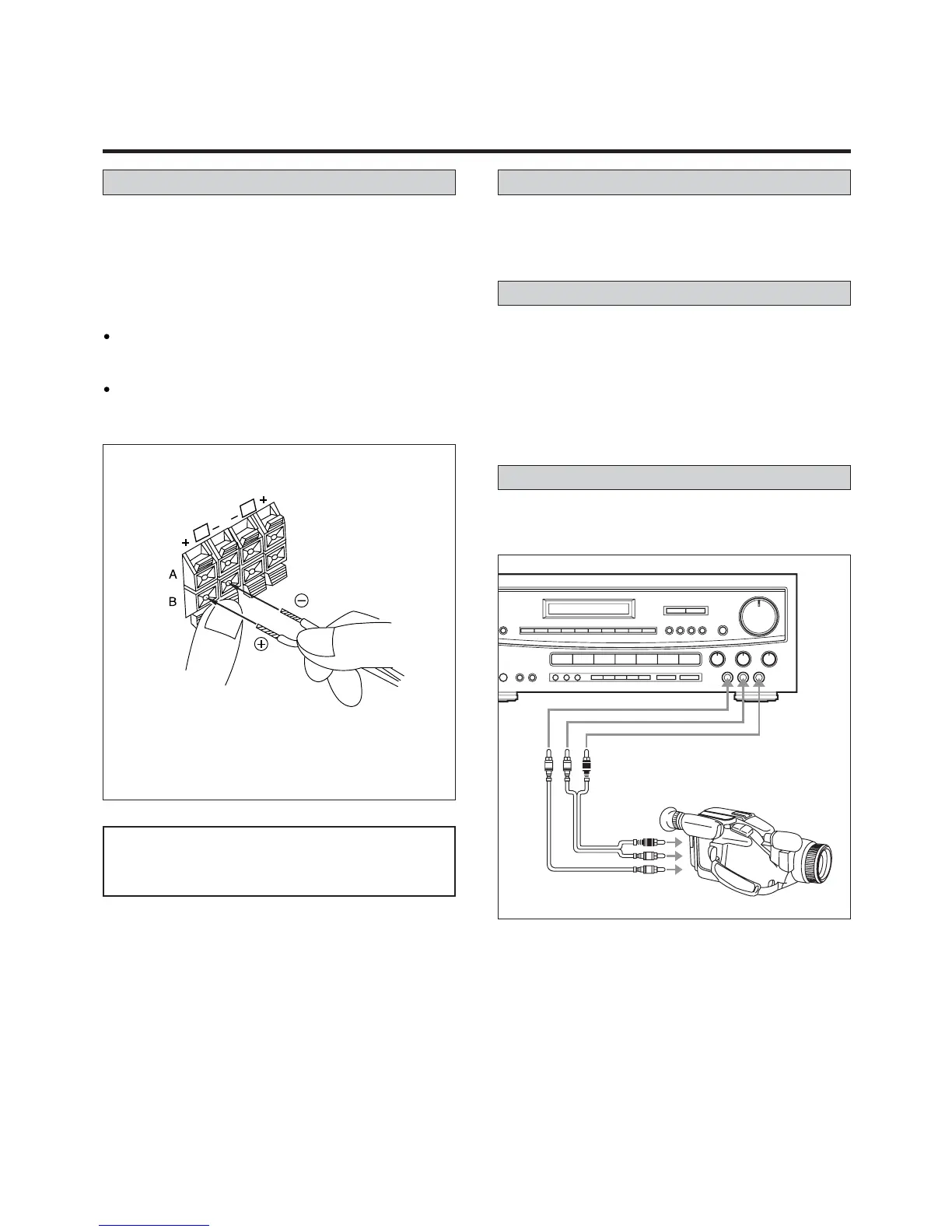

Speaker Connections
Caution :
To avoid damaging the speakers, be sure the power is off
before connecting the speakers.
Connect each speaker to the corresponding speaker
terminal.
Notes :
When using the rear speakers, be sure to connect them
to both channels (L and R). If a speaker is connected to
only one channel, no sound will be heard.
Use speakers with a nominal impedance of 8 ohms or
more.
R
L
How to connect the speaker cords
Press the lever, insert the stripped and twisted end
(approx. 10 mm) of the cord, then release the lever so
that the cord is held securely.
Power Cord
Be sure to connect the power cord to an AC outlet which
supplies the correct 120 voltage.
AC OUTLETS
SWITCHED :
These outlets switch on and off when you turn the amplifier
on and off.
Caution :
The total power consumption of the components connected
to the AC OUTLETS must not exceed 100W.
IMPORTANT : One of the A/B speaker selectors on the
front panel must be turned on or no
sound will be heard.
Video camera or other video components may be connected
to the video 3 input jacks on the front panel.
Video Camera Recorder, etc.
VIDEO OUT
AUDIO
OUT
To Next Page
