2-28

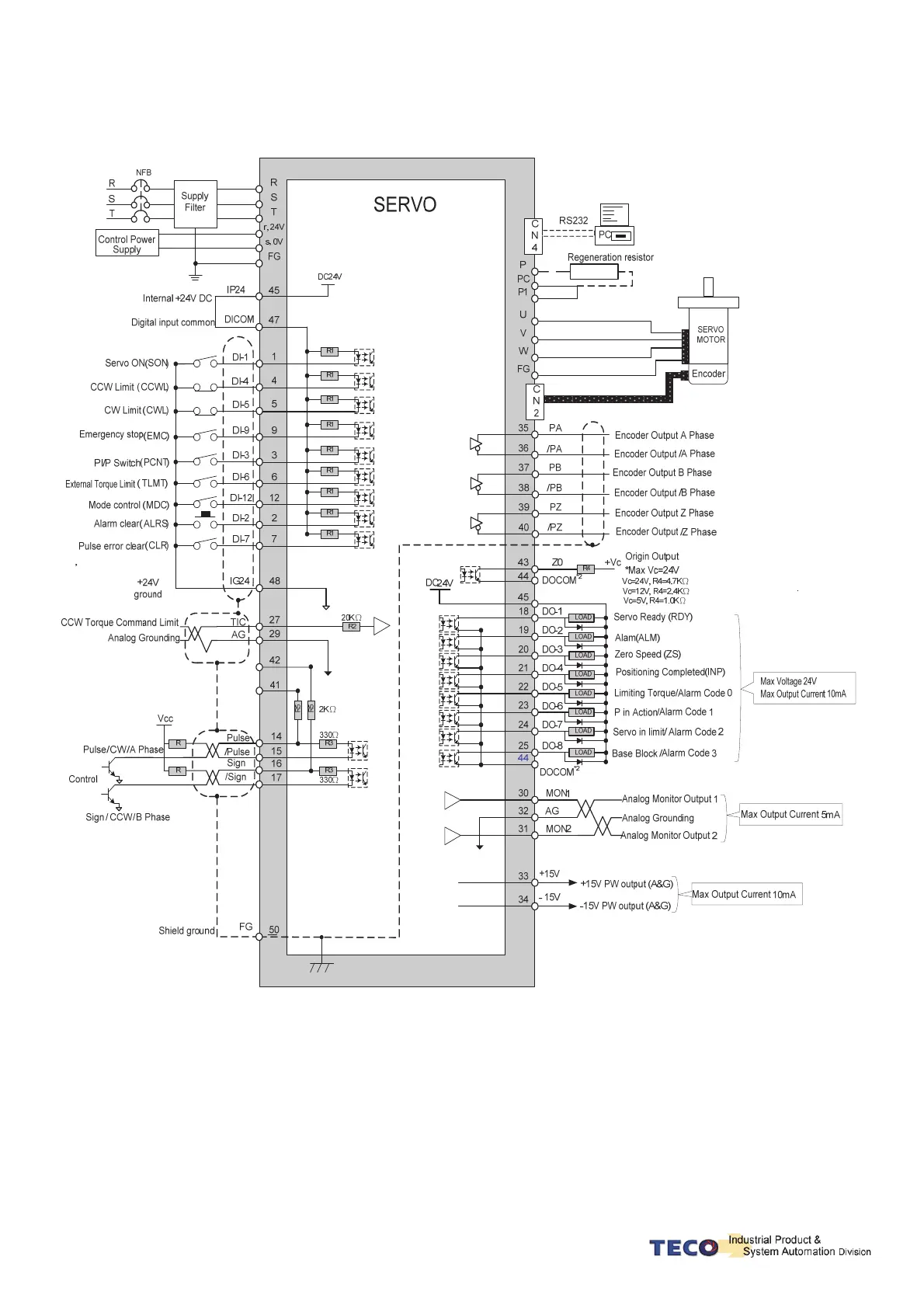

2-3-2 Position Control Mode (Pe Mode) (Open Collector)
Notes: 1. Pe mode =External pulse positioning command
2. DOCOM means common port of digital input
(DOCOM must connect to IG24 when using internal power supply)
