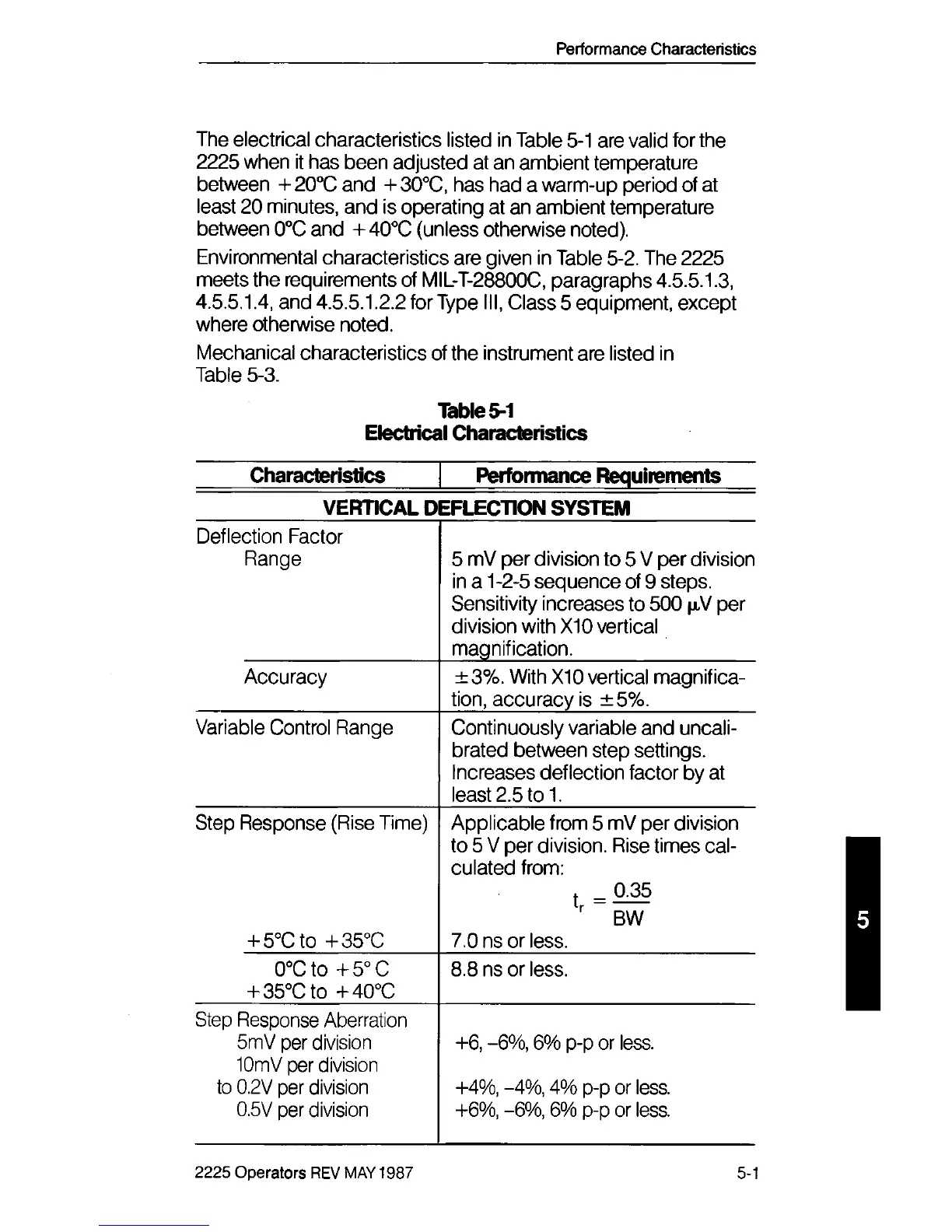

Performance Characteristics
The electrical characteristics listed in Table 5-1 are valid for the
2225 when it has been adjusted at an ambient temperature
between + 20°C and + 30°C, has had a warm-up period of at
least 20 minutes, and is operating at an ambient temperature
between 0°C and +40°C (unless otherwise noted).
Environmental characteristics are given in Table 5-2. The 2225
meets the requirements of MIL-T-28800C, paragraphs 4.5.5.1.3,
4.5.5.1.4, and 4.5.5.1.2.2 for Type III, Class 5 equipment, except
where otherwise noted.
Mechanical characteristics of the instrument are listed in
Table 5-3.
Table 5-1
Electrical Characteristics
Characteristics
Performance Requirements
VERTICAL D
EFLECTION SYSTEM
Deflection Factor
Range 5 mV per division to 5 V per division
in a 1-2-5 sequence of 9 steps.
Sensitivity increases to 500 |xV per
division with X10 vertical
magnification.
Accuracy ±3%. With X10 vertical magnifica
tion, accuracy is ±5%.
Variable Control Range
Continuously variable and uncali
brated between step settings.
Increases deflection factor by at
least 2.5 to l.
Step Response (Rise Time)
+ 5°C to +35°C
Applicable from 5 mV per division
to 5 V per division. Rise times cal
culated from:
t _ 0.35
r BW
7.0 ns or less.
0°Cto +5°C
+ 35°C to +40°C
8.8 ns or less.
Step Response Aberration
5mV per division
lOmV per division
to 0.2V per division
0.5V per division
+6, - 6%, 6% p-p or less.
+4%, -4%, 4% p-p or less.
+6%, - 6%, 6% p-p or less.
2225 Operators REV MAY 1987
5-1
