AFG1000 Series Quick Start User Manual
Operating requirements
The following information and figure describe temperature, clearance, and power
supply operating requirements of the instrument.
229.16 mm
(9.02 in)
306.36 mm
(12.06 in)
111.16 mm
(4.38 in)

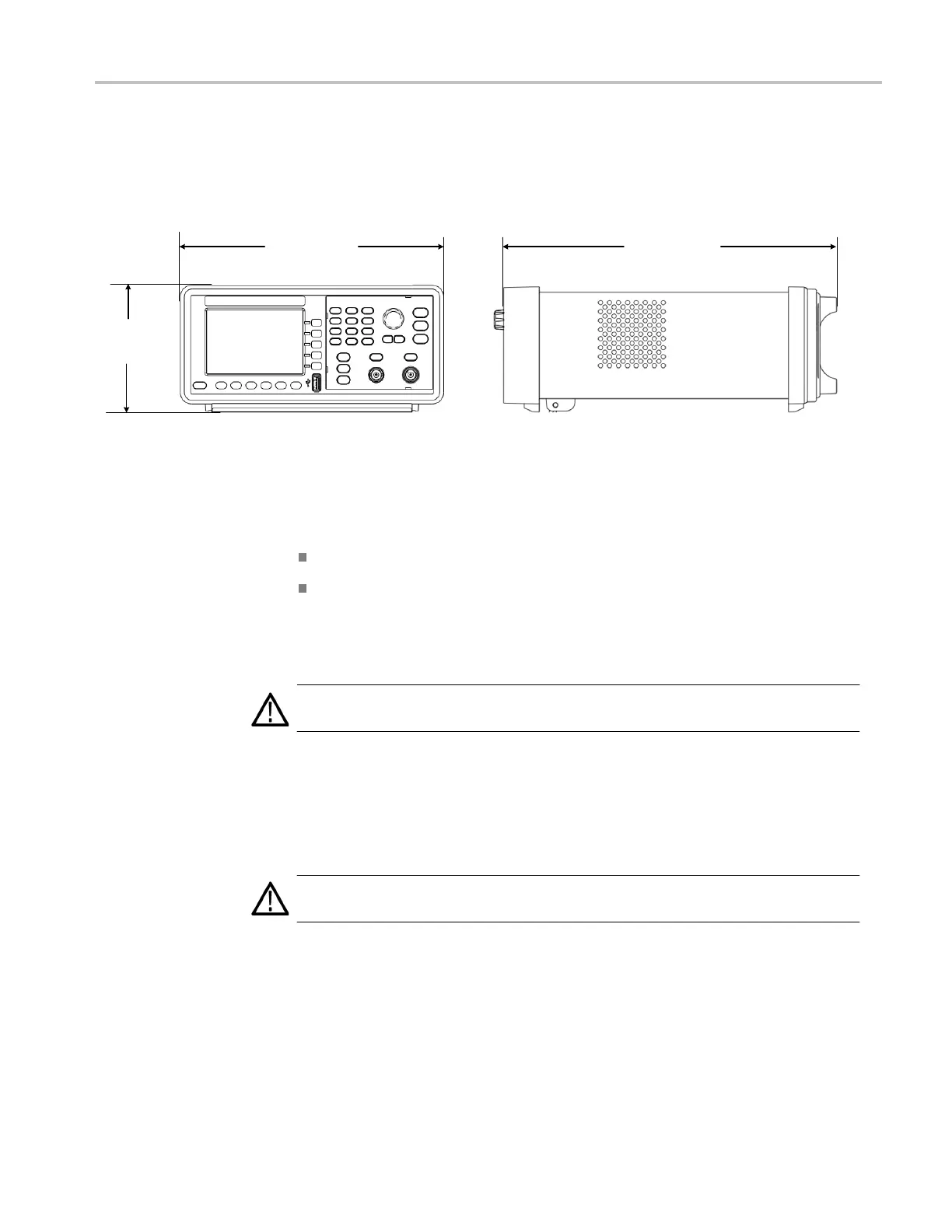

Figure 1: Instrument dimensions
Environmental
requirements
Clearance. When placing the instrument on a cart or bench, observing the
following clearance requirements:
Sides: 50 mm (2 in)
Rear: 50 mm (2 in)
Temperature. Before operating the instrument, ensure the ambient temperature is
between 0 °C to +40 °C (+32 °F to +104 °F).
CAUTION. To ensure proper cooling, keep both sides of the instrument clear of
obstructions.
Power supply
requirements
Source voltage and frequency. 220 - 240 VAC, 100 - 120 VAC , 50/60 Hz, CAT Ⅱ
.
Power Consumption. AFG1022: Less than 28 W
AFG1062: Less than 35 W
WARNING. To reduce the risk of fire and shock, ensure that the mains supply
voltage fluctuations do not exceed 10% of the operating voltage range.
