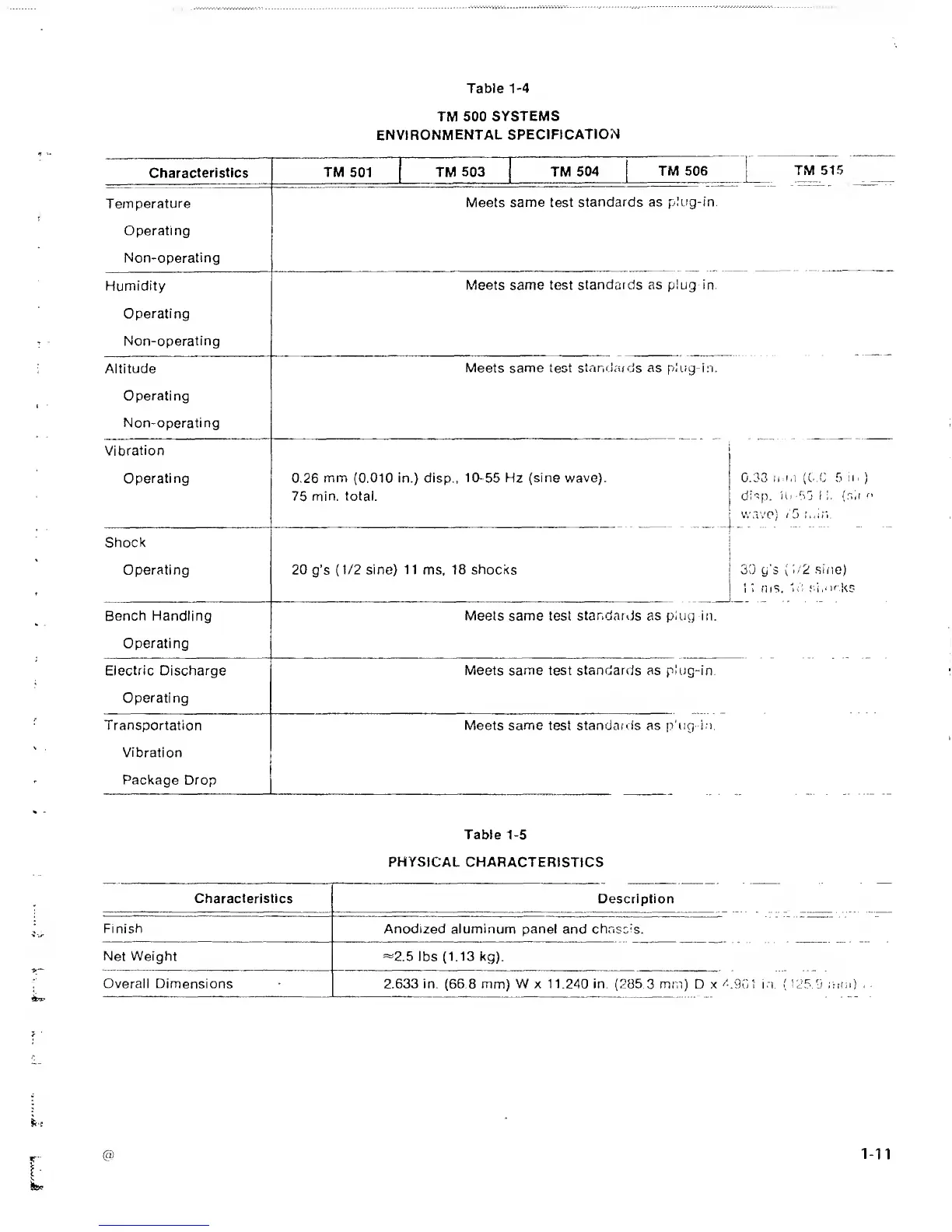

Table
1-4
TM 500
SYSTEMS
ENVIRONMENTAL
SPECIFICATION
Characteristics
TM
501
TM
503 TM
504
TM
506
TM
515
Temperature
Operating
Non-operating
Meets
same test
standards as
plug-in.
Humidity
Operating
Non-operating
Meets same test
standards as plug in.
Altitude
Operating
Non-operating
Meets same test
standards
as
pli.:g-in.
Vibration
Operating 0.26
mm
(0.010
in.) disp.,
10-55
Hz (sine wave).
75 min. total.
0.33 nun
(C.C
.'5
H'
)
disp.
iii
5 j
I
{'.'ui'f'
'
wave)
i5
i
i
I
30
g's
(
i/2 .sine)
I
I
i
ni$.
1/i
;/i,‘ >'.kn
Shock
Operating
20
g's
( t/2 sine) 1
1 ms,
18 shocks
Bench Handling
Operating
Meets
same test
standards as
plug
in.
Electric
Discharge
Operating
Meets same test
standards
as plug-in.
Transportation
Vibration
Package
Drop
Meets same test standards as
p'ug- in.
Table
1-5
PHYSICAL
CHARACTERISTICS
Characteristics
Description
Finish
Anodized aluminum panel
and
chassis.
Net Weight
«2.5
lbs
(1.13
kg).
Overall
Dimensions 2.633 in.
(66.8
mm) W x 11.240 in.
(285.3
mm) D x
'
1-11
