Tektronix DPO3000 Series Instruction Manual

Getting Started with the MSO/DPO2000 , M SO/DPO30 00, and MSO/DPO4000 Series Oscilloscopes
Demo III: Using Horizontal Co ntrols

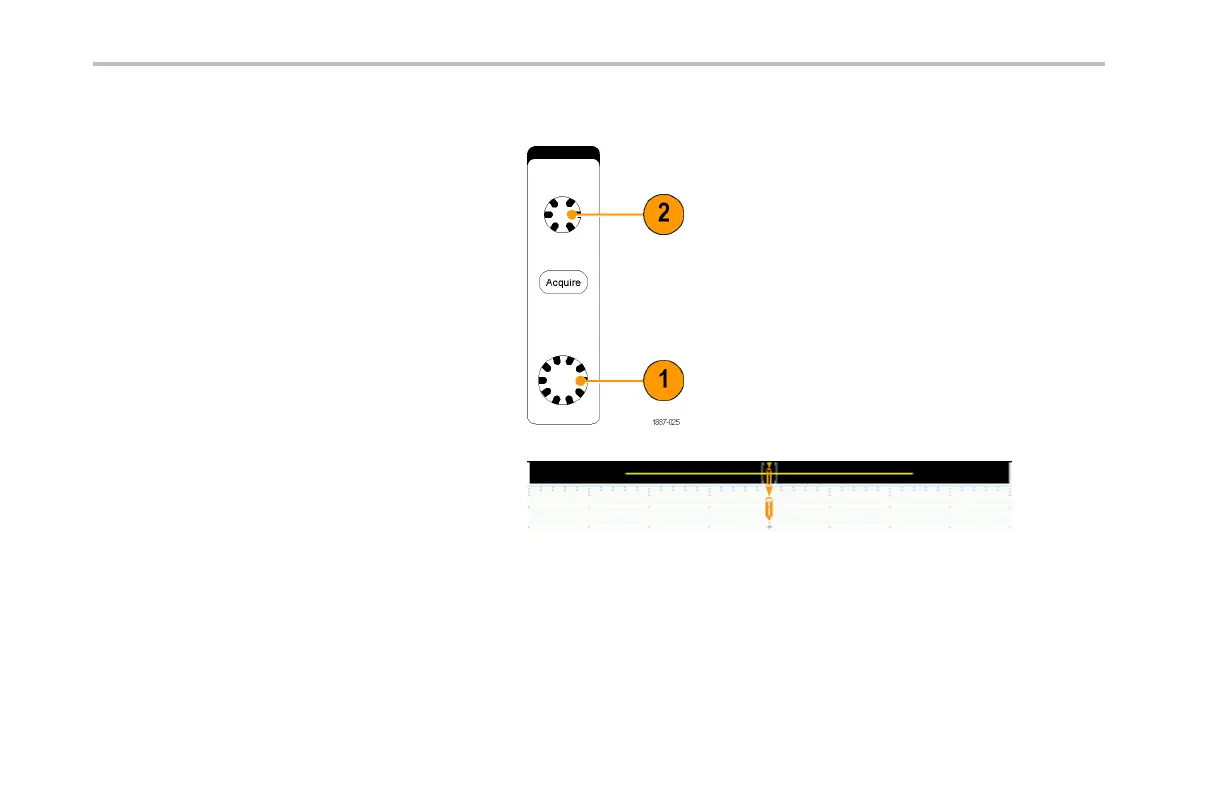

1. Turn the front-pa nel Horizontal Scale
knob in both directions and observe the
display. Also, notice the horizontal readout
indicating the current time/div setting. Set
the Horizontal Scale to 200 ns/div.
2. Turn the front-pa nel Horizontal Position
knob both directions and observe the
display. Notice that this affects the trigger
position icon (the big T on an orange
background). Return the trigger position
icon to cente r screen.
3. Take a look at the graphic shown above
the graticule. The long yellow bar
represents the overall acquisition wh ile
the gra y brackets indicate the portion of
theacquisitionyouarelookingatonthe
screen.
8 Demo 2 Boa rd Instruction M a nual
