Acquire the Signal

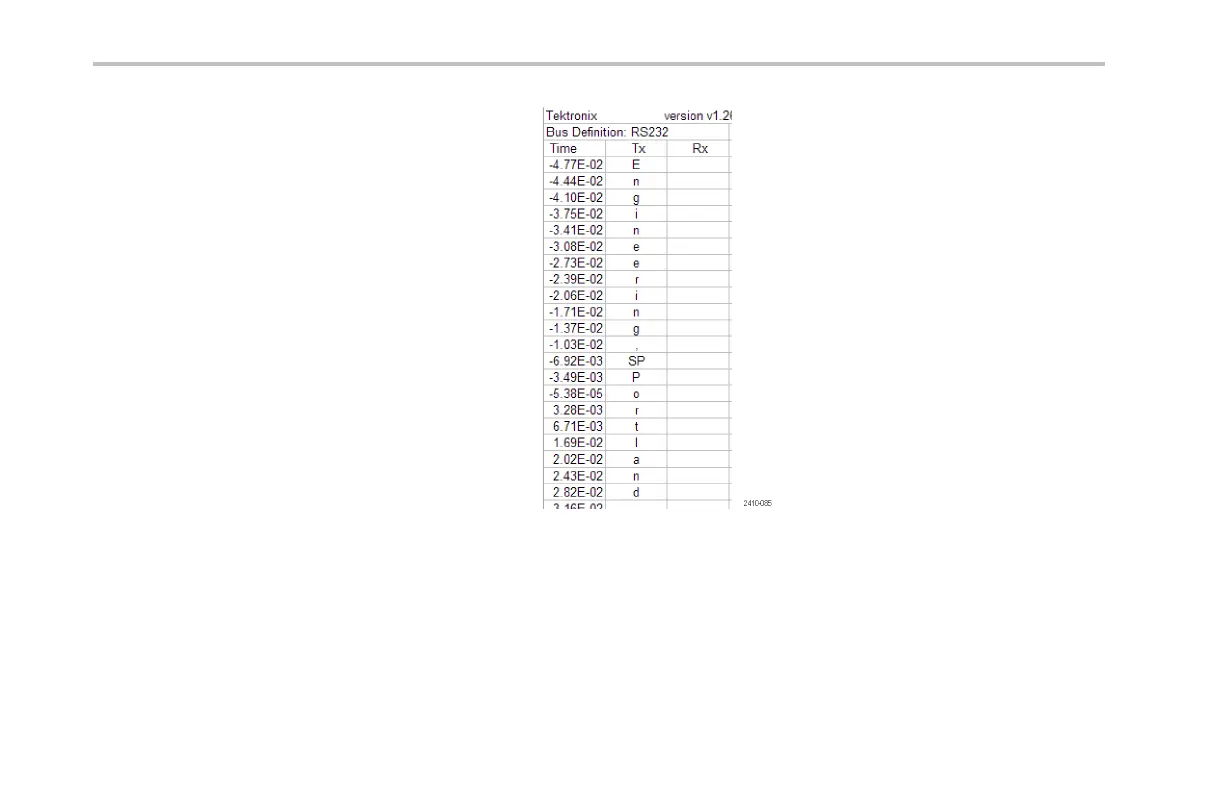

Saved event table example:
I
2
C, SPI, CAN, and LIN event tables display
one line for each packet.
RS-232 event tables display one line for each
7- or 8-bit byte whe n Packe ts are set to Off.
RS-232 event tables display one line for each
packet when Packets are set to On.
12. Push B1 or B2 and turn multipurpose knob a to
move the b us display up or down on the screen.
To trigger on serial bus cond itions, refer to Triggering on Buses. (See page 121, Triggering on Buses .)
