Installation
Operating Considerations

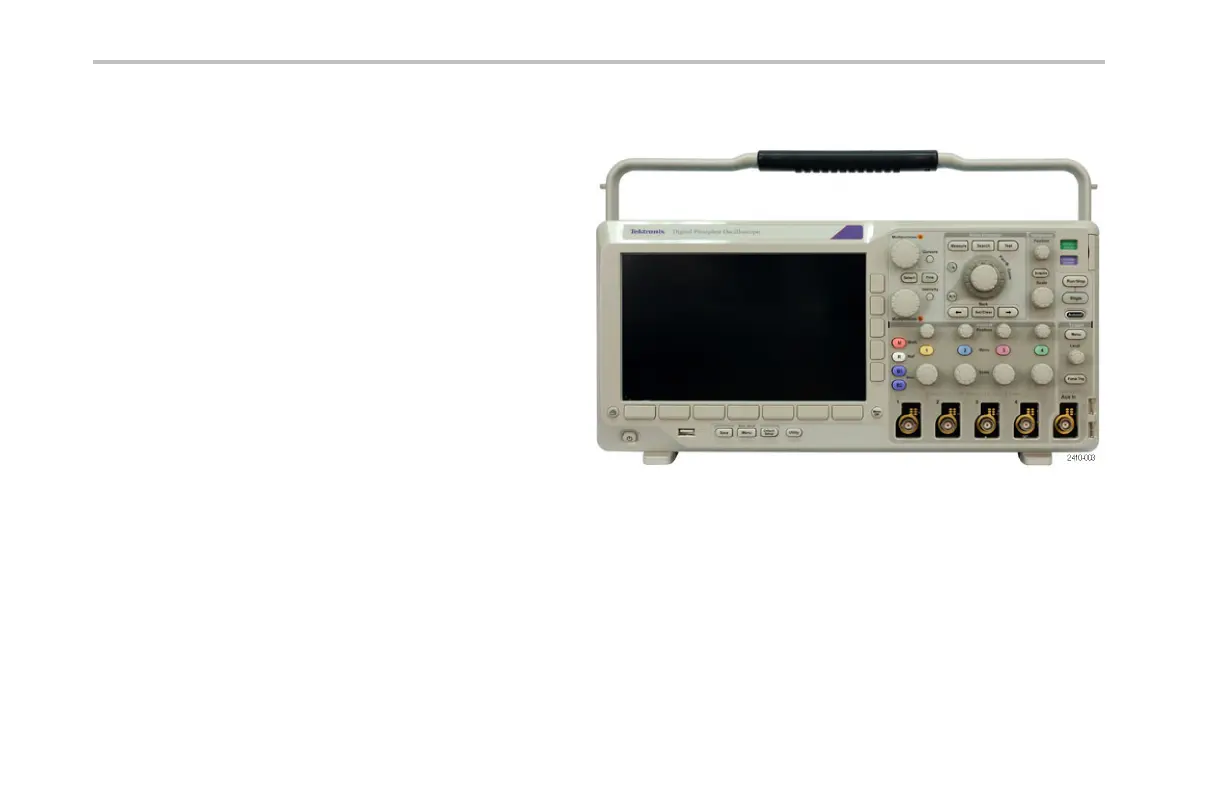

DPO3000 Series Osc illoscopes
Input Voltage: 100 V to 240 V ± 10%
Input Power Frequency:
50/60 Hz at 100 V to 240 V
400 Hz ± 10% at 115 V
Power Consumption: 120 W maximum
Weight: 4.2 kg (9.2 lbs), standalone instrument
Height, including feet b ut not handle:
203.2 mm (8 in)
Width, 41 6.6 mm (16.4 in)
Depth, 147.4 mm (5.8 in)
Clearance: 51 mm (2 in)
DPO3000 series
Temperature:
Operating: +0 °C to +50 °C
Nonoperating: -40 °C to +71 °C
8 DPO3000 S eries Oscilloscopes User Manual
