Trigger Setup
Trigger Type Trigger Conditions

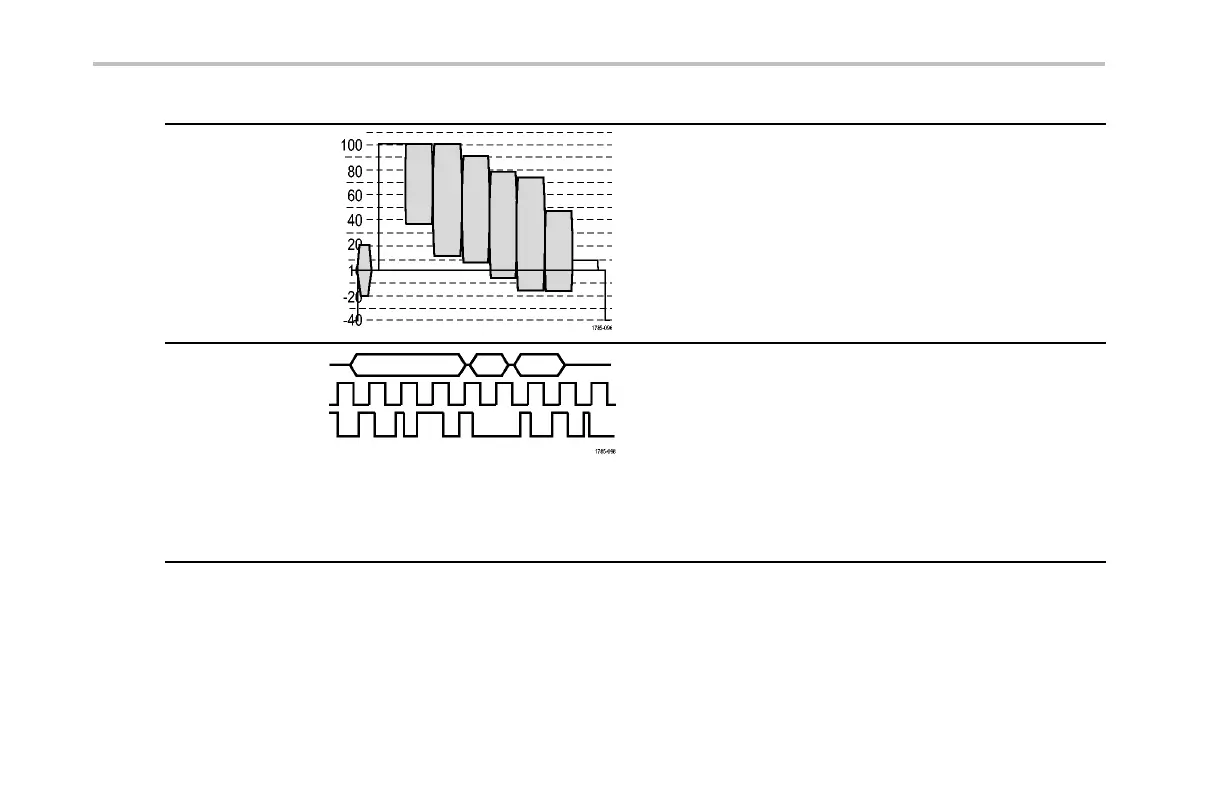

Video
Trigger on specified fields or lines of a composite video
signal. Only com posite signal formats are supported.
Trigger on N TSC, PAL, or SECAM. Works with Macrovision
signals.
With the DPO3VID module, trigge r on a variety of HDTV
video standard signals, as well as custom (non-standard)
bilevel and trilevel video signals with 3 to 4,000 lines.
Bus Trigger on various bus con ditions.
I
2
C requires a DPO3EMBD module.
SPI requires a DPO3EMBD module.
CAN requires a DPO3AUTO module.
RS-232, RS-422, RS-485, and UART require a
DPO3COMP module.
LIN requires either a DPO3AUTO module.
(See page 24, Application Mo dule Free Trial.)
120 DPO3000 Series Oscilloscopes User Ma nual
