Application E xamp les
Using Autoset
To quickly display a signal:

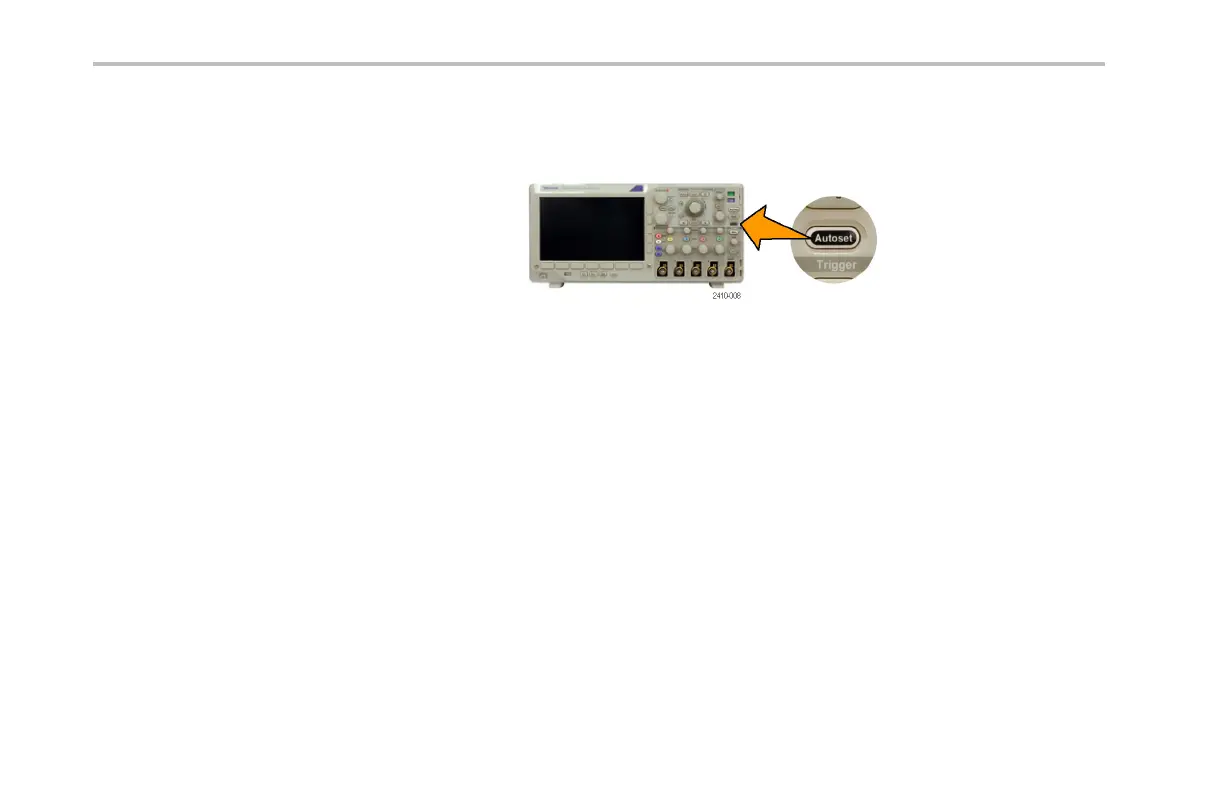

1. Push Autoset.
The oscilloscope sets vertical, horizontal, and trigger controls automatically. You can m anually adjust any of these controls if you
need to optimize the display of the wa veform.
When you are using more than one channel, the autoset function sets the vertical controls for each channel and uses t he
lowest-numbered active channel to set the horizontal and trigger controls.
Selecting Automatic Measurements
The oscilloscope can take au tomatic m easurements of most displayed signals. To measure signal frequency and peak-to-peak
amplitude:
228 DPO3000 Series Oscilloscopes User Ma nual
