Tektronix DPO3034 User Manual

Application Examples
Using the Horizontal Zoom Function
To take a close look at a particular point on the acquired waveform , use the horizontal zoom function. To look closely at the
point where the relay contact first begins to open:

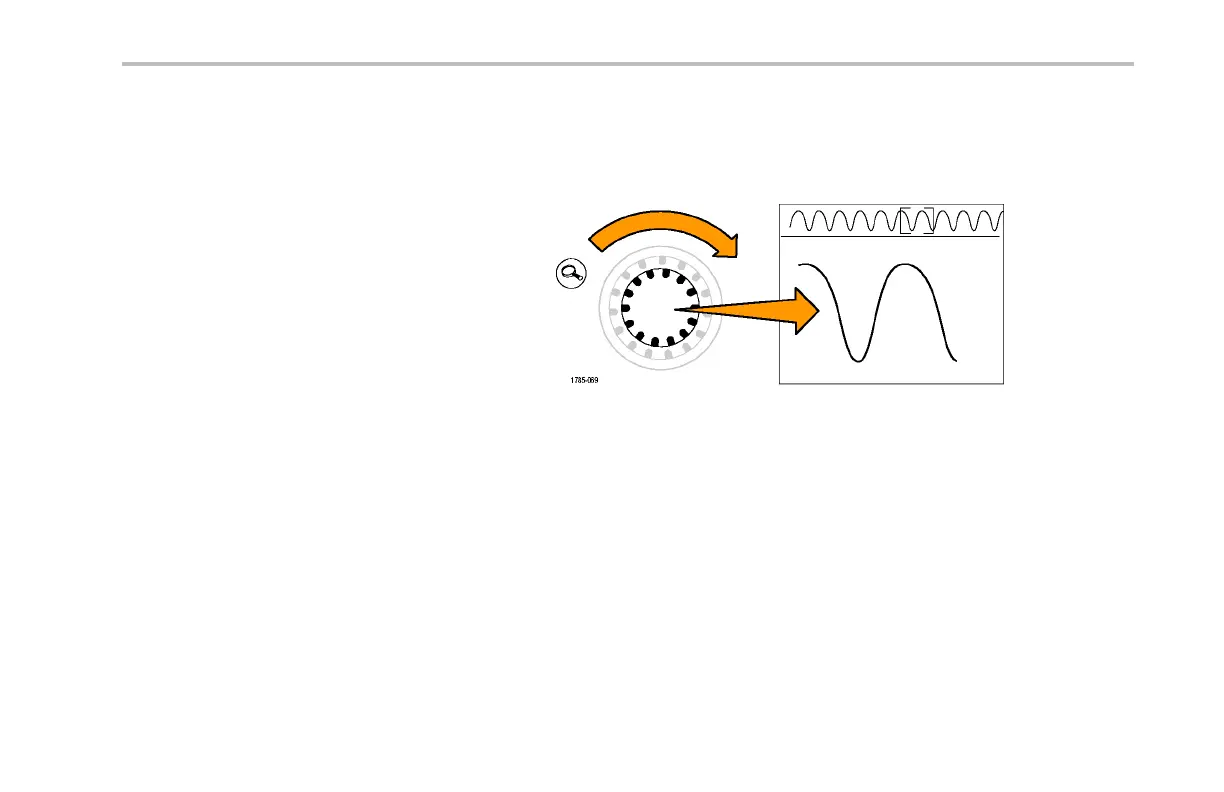

1. Turn the Zoom knob.
2. Turn the Pan knob to place the center of
the zoom box close to wh ere the relay
contact begins to open.
3. Turn the Zoom knob to magnify the
waveform in the zoom window.
DPO3000 Series Oscilloscopes User Manua l 259
