Installation

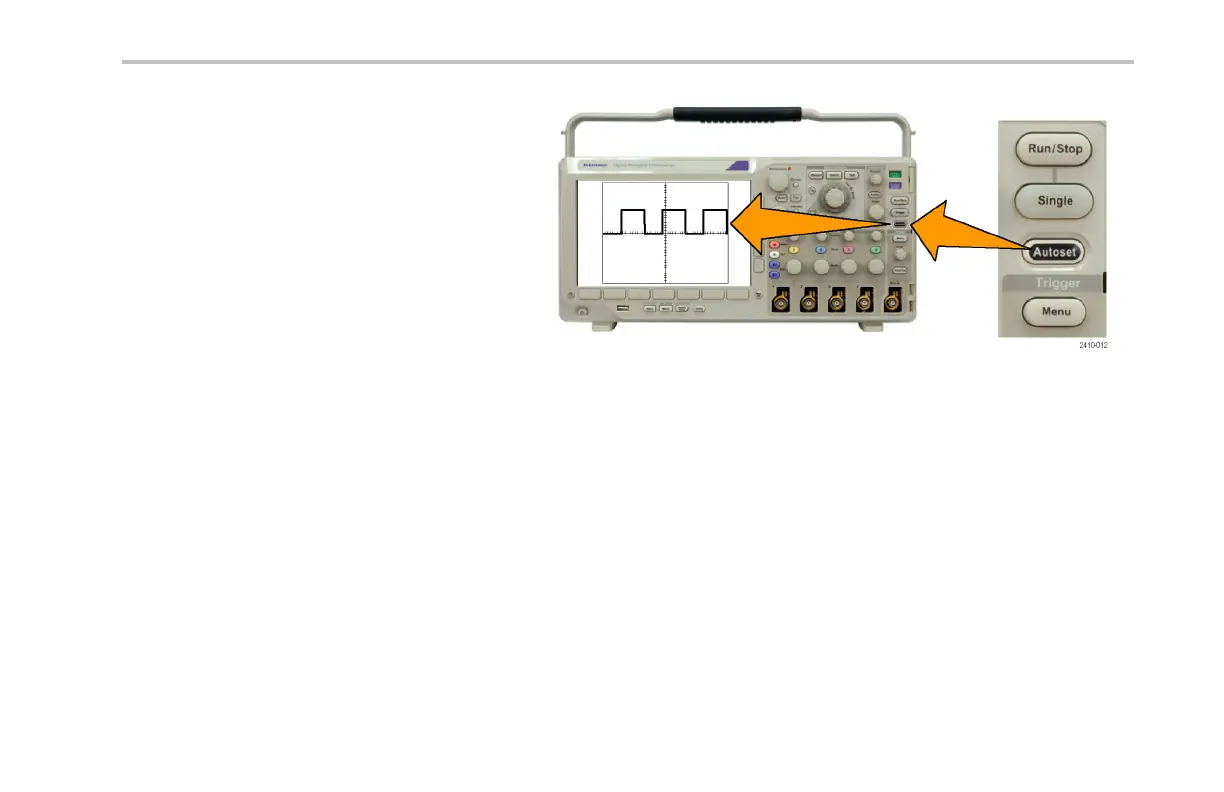

5. Push Autoset. The screen should now
display a square wave, approxim ately
2.5Vat1kHz.
NOTE. For best performance, it is
recommended that you set the Vertical scale
to 500 mV.
If the s ignal appears but is misshapen,
perform the procedures for compensating
theprobe.(Seepage22,Compensating a
Passive Voltage Probe.)
If no signal appears, rerun the procedure.
If th is does not remedy the situation, have
the instrument serviced by qualified se rvice
personnel.
DPO3000 Series Oscilloscopes User Manua l 21
