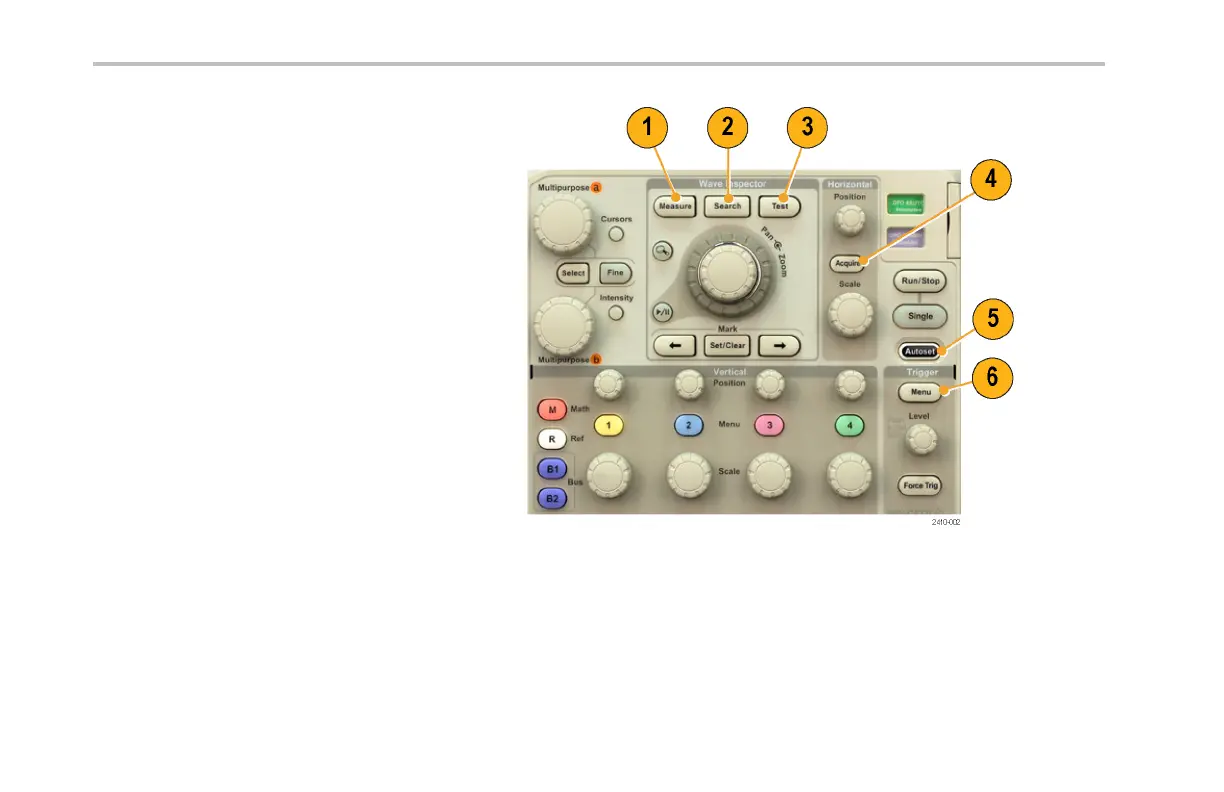

Get Acquainted with the Instrume nt
1. Measure. Pu sh to p erform automated
measurements on waveforms o r to
configure cursors.
2. Search. Push to search through an
acquisition for user-defined events/criteria.
3. Test. Push to activate advanced or
application-specific testing features.
4. Acquire. Push to set the acquisition mode
and adjust the record length .
5. Autoset. P ush to p erform an automatic
setup of oscilloscope settings.
6. Trigger Menu. Push to specify trigger
settings.
54 DPO3000 Series Oscilloscopes User Ma nual
