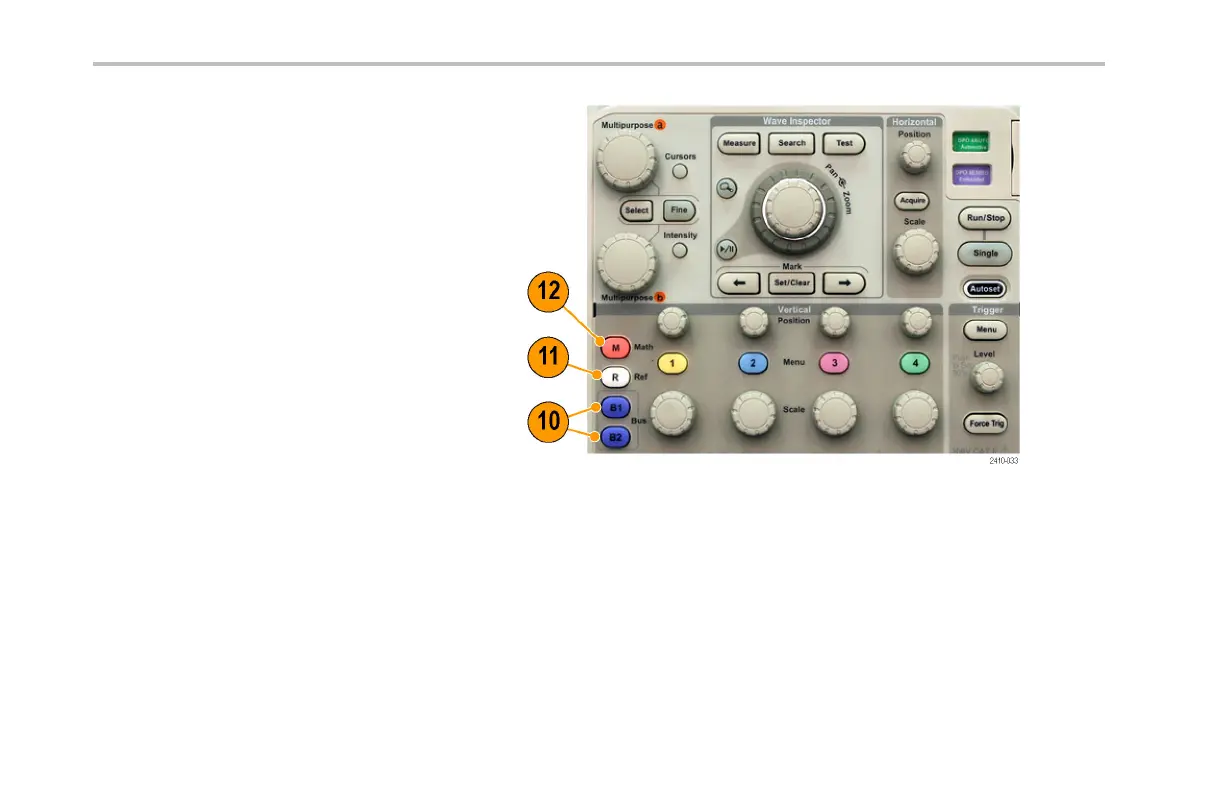

10. B1 or B2. Pushtodefine and display a
bus if you have the appropriate module
application keys. The DPO3AUTO module
supports CAN and LIN buses. The
DPO3EMBD module supports I
2
Cand
SPI. The DPO3COMP module supports
RS-232, RS-422 , RS-485, and U ART
buses.
Also, push the B1 or B2 button to display
or remove the corresponding bus from the
display.
11. R. Push to manage reference waveforms,
including the display or removal of each
reference w aveform from the display.
12. M. Push to manage the math waveform,
including the display or removal of the
math waveform from the display.
Using Other Controls
These buttons and k nobs control waveforms, cursors, and other data inp ut.
56 DPO3000 Series Oscilloscopes User Ma nual
